SWAPPING HOUSING DOORS
To secure the HD HERO & LCD BacPac assembly into the
housing, you will need to replace the standard back door
with one of the included extended back doors. A total of 4
doors are supplied with the LCD BacPac; 2 waterproof
doors (standard + wrist housing models) and 2
non-waterproof doors (standard and wrist housing
models). The skeleton doors allow for better audio and
camera cooling when waterproong is not needed.

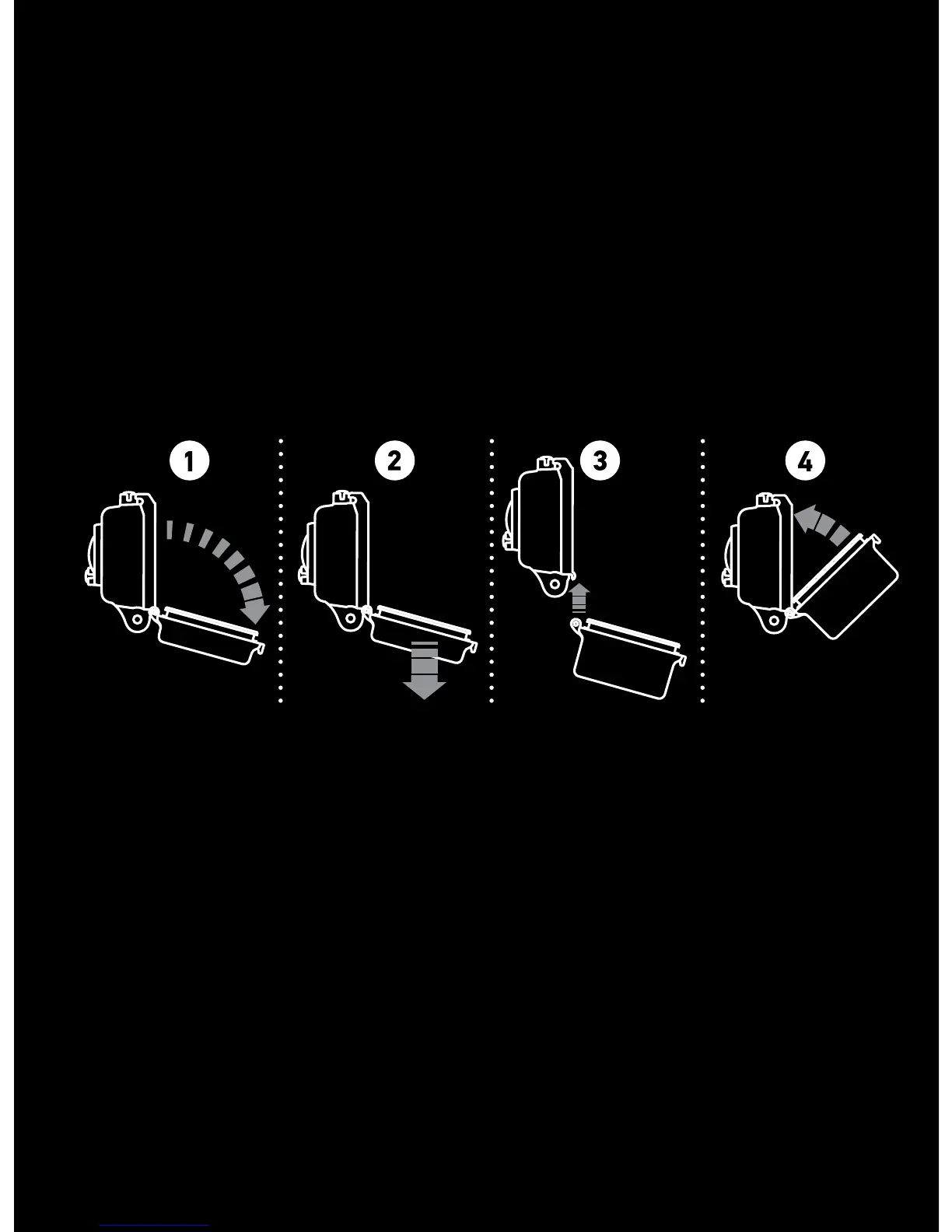

1. 0pen the backdoor of the housing so that it is
hanging downwards.
2. Pull downwards on the backdoor until it snaps
free from the hinge.
3. Line up replacement backdoor into the hinge opening.
4. Push upwards on the backdoor until it clicks
into place.
5
