Operation

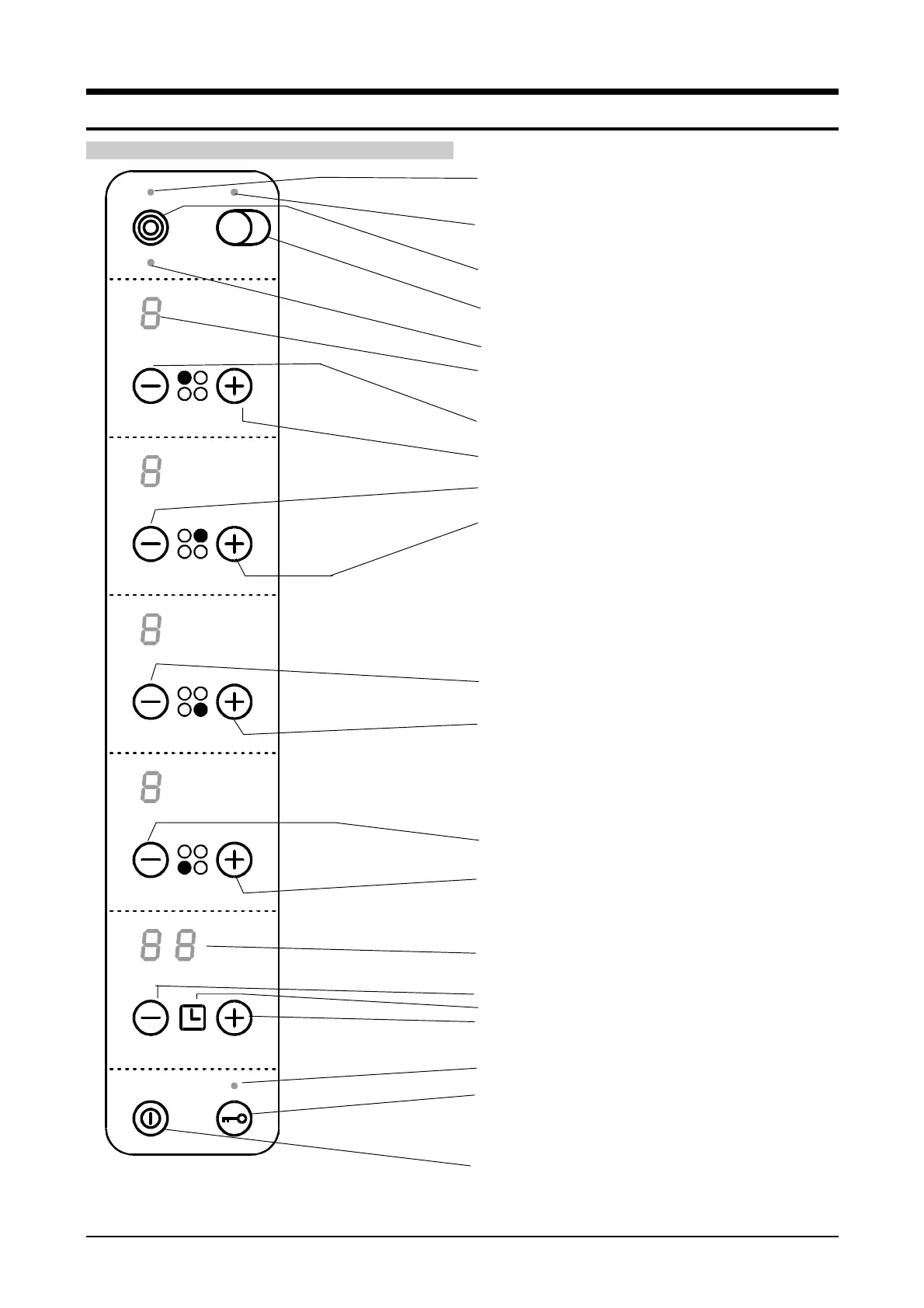

Control board
Signal lamp (LED) of the second hotplate ring (hotplate 4)
Signal lamp (LED) of the second hotplate ring (hotplate 2)
Sensor for switching on two extended hotplate rings (hotplate
4)
Sensor for switching on two extended hotplate rings (hotplate
2)
Signal lamp (LED) of the third hotplate ring
(hotplate 4)
Hotplate power indicator 0…9 and remaining heat warning
symbol H
Sensor ''-'' for hotplate power regulation
Hotplate 1
Sensor ''+'' for hotplate power regulation
Sensor ''-'' for hotplate power regulation
Hotplate 2
Sensor ''+'' for hotplate power regulation
Sensor ''-'' for hotplate power regulation
Hotplate 3
Sensor ''+'' for hotplate power regulation
Sensor ''-'' for hotplate power regulation
Hotplate 4
Sensor ''+'' for hotplate power regulation
Clock display
Sensor ''-'' for time regulation
Timer
Sensor ''+'' for time regulation
Signal lamp (LED) for signalling blocked operation
Blocked operation sensor
Main switch sensor
