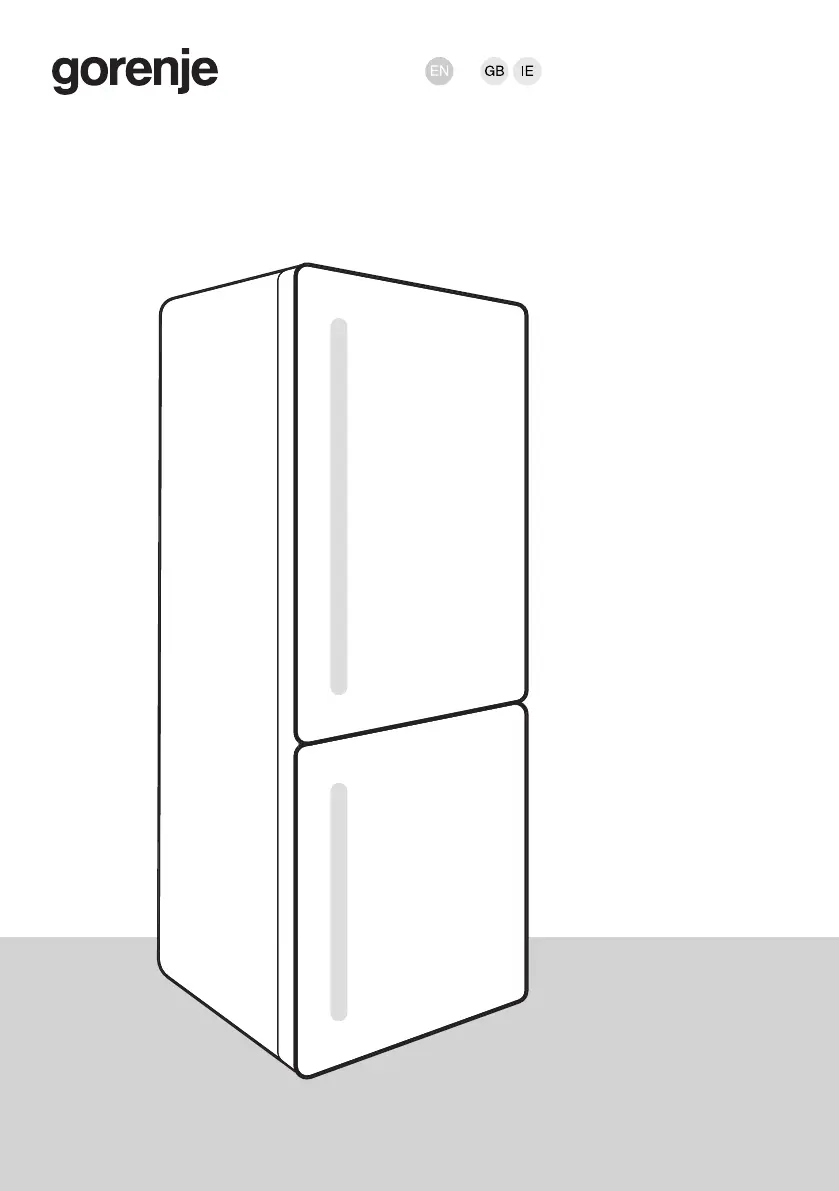

INSTRUCTIONS FOR USE
OF AN UPRIGHT FRIDGE
FREEZER

Table of Contents

Questions and Answers

  • J
    Janice StanleyAug 13, 2025
    What to do if my Gorenje NRKP61EA2XL4 is leaking water?
    • S
      smithryanAug 13, 2025
      If water is dripping or leaking from your Gorenje Freezer, it's likely due to a clogged water discharge opening or water dripping past the water gutter. Try cleaning the blocked opening with a plastic straw. If a thick layer of ice builds up, defrost the appliance manually.
  • A
    Anne TurnerAug 17, 2025
    Why is there excessive ice build-up on the back wall of my Gorenje NRKP61EA2XL4 Freezer?
    • M
      mwoodsAug 17, 2025
      Excessive ice build-up on the back wall of your Gorenje Freezer can result from: * The door being opened too frequently or for too long. * Warm food being placed in the refrigerator. * Food or containers touching the back interior wall. * Poor door sealing. Clean or replace the seal if it's dirty or damaged.
  • J
    jennifer54Aug 21, 2025
    Why is there ice build-up in my Gorenje NRKP61EA2XL4?
    • J
      Joe BentleyAug 21, 2025
      If you notice excessive ice build-up in your Gorenje Freezer, it might be due to: * The door being opened too frequently or for too long. * The door not being properly closed. * A poor door seal (dirty or damaged gasket, misaligned door). In this case manually defrost the appliance.
  • R
    Robert AdamsAug 25, 2025
    Why is my Gorenje NRKP61EA2XL4 cooling system running constantly?
    • D
      dalesimonAug 25, 2025
      If the cooling system in your Gorenje Freezer runs continuously, it could be due to several reasons: * Too high ambient temperature. * The door being opened too frequently or for too long. * The door not closing correctly (check for impurities on the seal, misaligned door, or a damaged seal). * Inserting too much fresh food at once. * A sensor blocked by fresh food (ensure air can circulate around the sensor, applicable to some models).
  • C
    carol73Aug 28, 2025
    Why is the door of my Gorenje Freezer hard to open?
    • M
      Michael MorenoAug 28, 2025
      If the door of your Gorenje Freezer is difficult to open immediately after closing it, this is likely due to negative pressure. When warm air replaces cool air and is then cooled, it creates a vacuum. Wait a few minutes for the pressure to normalize before attempting to reopen the door.
  • J
    jchristensenSep 1, 2025
    Why is there condensation on the shelf above the drawers in my Gorenje NRKP61EA2XL4 Freezer?
    • B
      Billy CruzSep 1, 2025
      If condensate (dew) appears on the shelf above the drawers in your Gorenje Freezer, this is often a temporary issue during periods of high temperature and humidity. Clean the drawers more frequently and wipe the droplets. You can also open the humidity control slider and ensure food is sealed in bags or containers.
  • D
    dianadavisSep 4, 2025
    What does 'E9' on the display unit of my Gorenje Freezer mean?
    • S
      Steven GilbertSep 4, 2025
      If 'E9' appears on the display unit of your Gorenje Freezer, it indicates the door was open too long. Ensure the door is closed. If the error persists 10 minutes after closing the door, it suggests a door sensor failure.
  • J
    Jennifer AustinSep 8, 2025
    Why does 'HI' appear on the display unit of my Gorenje NRKP61EA2XL4?
    • K
      Kevin GreeneSep 8, 2025
      If "HI" appears on the display of your Gorenje Freezer, it may be due to the door being opened too frequently or for too long, the door not being closed correctly (check for seal impurities, misaligned door, or damaged seal), an extended power failure, or inserting too much fresh food at once.

Summary

Important notes and precautions

Before using the appliance for the first time

Guidance on initial setup and preparation before appliance operation.

Important safety instructions

Critical safety guidelines to prevent hazards and ensure safe appliance use.

Important information on the use of appliance

Key information and guidelines for the proper and efficient operation of the appliance.

Environment protection

Information on the disposal and environmental impact of the appliance.

Advice for saving power with refrigeration appliances

Tips and recommendations for optimizing energy consumption and reducing power usage.

Installation and connection

Selecting the room

Recommendations for choosing an appropriate location for appliance installation.

Appliance placement

Guidelines for positioning the appliance correctly for stability and ventilation.

Connecting the appliance

Instructions for safely connecting the appliance to the power supply.

Reversing the door opening direction

Step-by-step guide to change the direction in which the appliance door opens.

Description of the appliance

Operating the appliance

Switching the appliance on;off

Procedures for turning the appliance on, off, and entering standby mode.

Adjusting the temperature in the appliance

How to set and modify the temperature for the refrigerator and freezer compartments.

Control unit;display standby mode

Information on the control panel's standby mode and indicator lights.

Intensive freezing (freezer compartment)

Instructions for activating and using the fast freezing function for optimal food preservation.

Eco function

Details on activating and deactivating the energy-saving Eco mode.

Child Lock

Guide on enabling and disabling the child lock feature to prevent unintended operation.

High temperature alarm

Explanation of the high temperature warning system and how to respond to it.

Open door alarm

Information on the alarm triggered by a door left open for too long.

Power outage;power supply failure alarm

Explanation of the alarm system for power interruptions and its indicators.

Appliance interior equipment

Shelf

Instructions on how to arrange and use the shelves within the refrigerator.

Wire bottle rack

Information about the specific features and usage of the wire bottle holder.

Fruit and vegetable bin with humidity control (CrispZone)

Details on the humidity-controlled drawer for storing fruits and vegetables.

FreshZone;ZeroZone drawer

Information on the special drawer for storing food at optimal temperatures.

Turning the FreshZone;ZeroZone drawer into a fruit and vegetables drawer

Guide on converting the FreshZone/ZeroZone drawer for fruit and vegetable storage.

Door racks

Description of the shelves and their arrangement on the appliance door.

Air distribution system (MultiFlow)

Explanation of the MultiFlow system for even air distribution and temperature control.

Air distribution system with air ionizer (MultiFlow;lonAir)

Details on the advanced air system with ionization for better food freshness.

AdaptTech

Information on the intelligent sensor technology that adapts appliance operation.

Recommended distribution of food in the appliance

Storing food in the refrigerator

Important warnings regarding food storage

Essential advice and warnings for proper and safe food storage in the refrigerator.

Avoid contamination of food

Guidelines to prevent cross-contamination and maintain food hygiene.

Freezing and storing frozen food

Freezing procedure

Step-by-step instructions for freezing food correctly and efficiently.

Important warnings on freezing

Key precautions and tips for successful and safe food freezing.

Storing industrially frozen food

Guidance on purchasing and storing commercially frozen food products.

Frozen food storage time

Table indicating recommended storage durations for various types of frozen food.

Defrosting the appliance

Automatic refrigerator defrosting

Explanation of the automatic defrosting process for the refrigerator compartment.

Defrosting a NoFrost freezer

Information on how the NoFrost freezer automatically handles frost build-up.

Manual defrosting of the NoFrost freezer

Procedure for manual defrosting if frost accumulates in the NoFrost freezer.

Cleaning the appliance

Troubleshooting

Information about appliance noise

Gorenje NRKP61EA2XL4 Specifications

General IconGeneral
Appliance placementFreestanding
Door hingeRight
Reversible doorsYes
RefrigerantR600a
Climate ClassSN-T
Installation TypeFreestanding
Star rating4*
Freezer number of shelves/baskets3
Width60 cm
