GPI G20 - Clean or Replace Bypass Poppet

10
EN
REPAIR
(
CONTINUED
)
Clean or Replace Bypass Poppet
1. Turn the pump OFF and disconnect from power.
2. Using a 5mm Hex wrench, remove the coverplate from the pump.
3. With a 10mm Hex wrench remove the pipe plug from the coverplate,
and remove the bypass poppet spring, O-ring, bypass poppet and
orifice seal (see Figure 3).
4. Inspect the O-ring and replace as necessary
NOTE: Replace O-ring if damaged, swollen or loose-fitting
(see Wet Seal Kit).
5. With a clean cloth, wipe the poppet components and replace.
6. Before seating, coat O-ring with light grease.
7. Install coverplate.

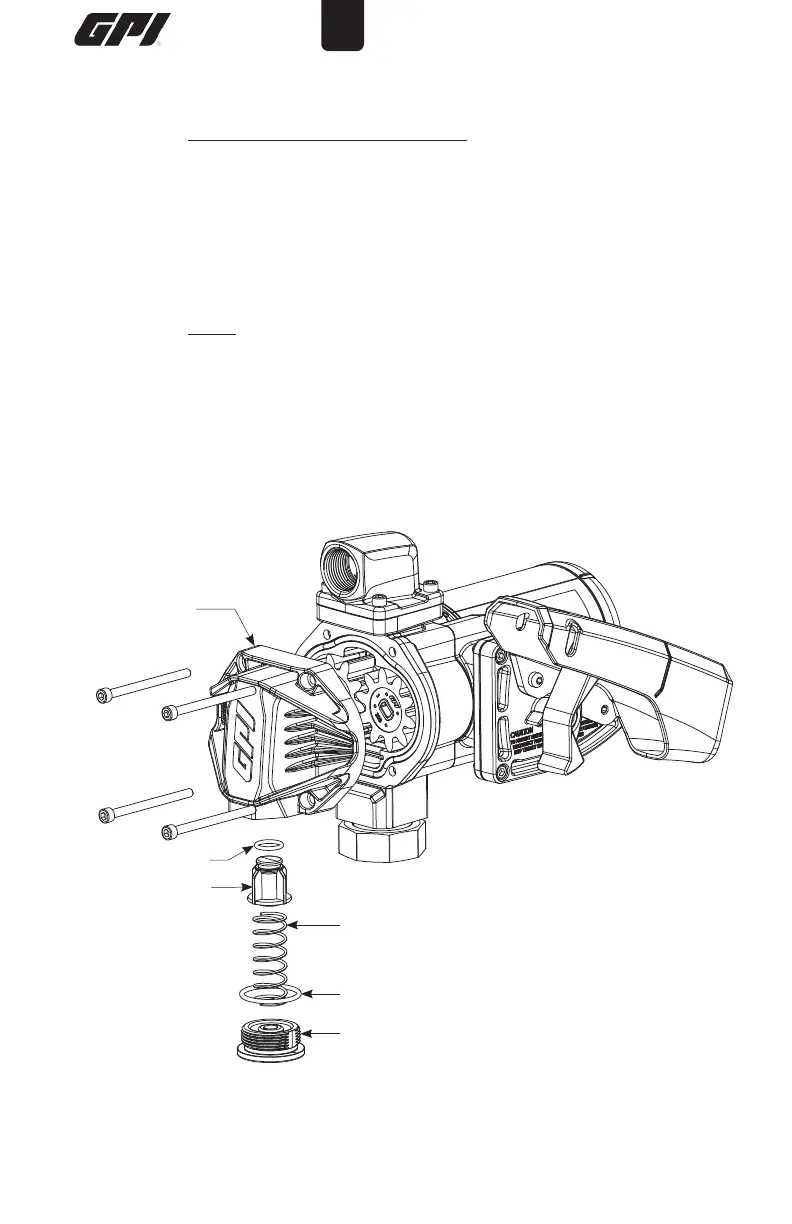

Figure 3
Spring
O-ring
Pipe Plug
Orifice Seal
Coverplate
Bypass Poppet
