REPAIR
IMPORTANT: Carefully inspect all parts for wear or damage. Replace
components, as necessary. The Illustrated Parts List gives information
on replacement parts and kits. Review the Safety Instructions before
proceeding.
Avoid prolonged skin contact with petroleum fuels. Use
protective goggles, gloves and aprons in case of
splashing or spills. Change saturated clothing and wash skin promptly with
soap and water.
Service O-rings
NOTE: A Wet Seal Kit contains all seals for your meter and should be
on hand when performing repairs. Old seals may then be replaced with
new seals.
1. In general, when inspecting O-rings, look for breaks, wear, and signs
of deterioration, such as swelling.
2. Replace, as necessary.
3. Before seating, coat O-rings with light grease.

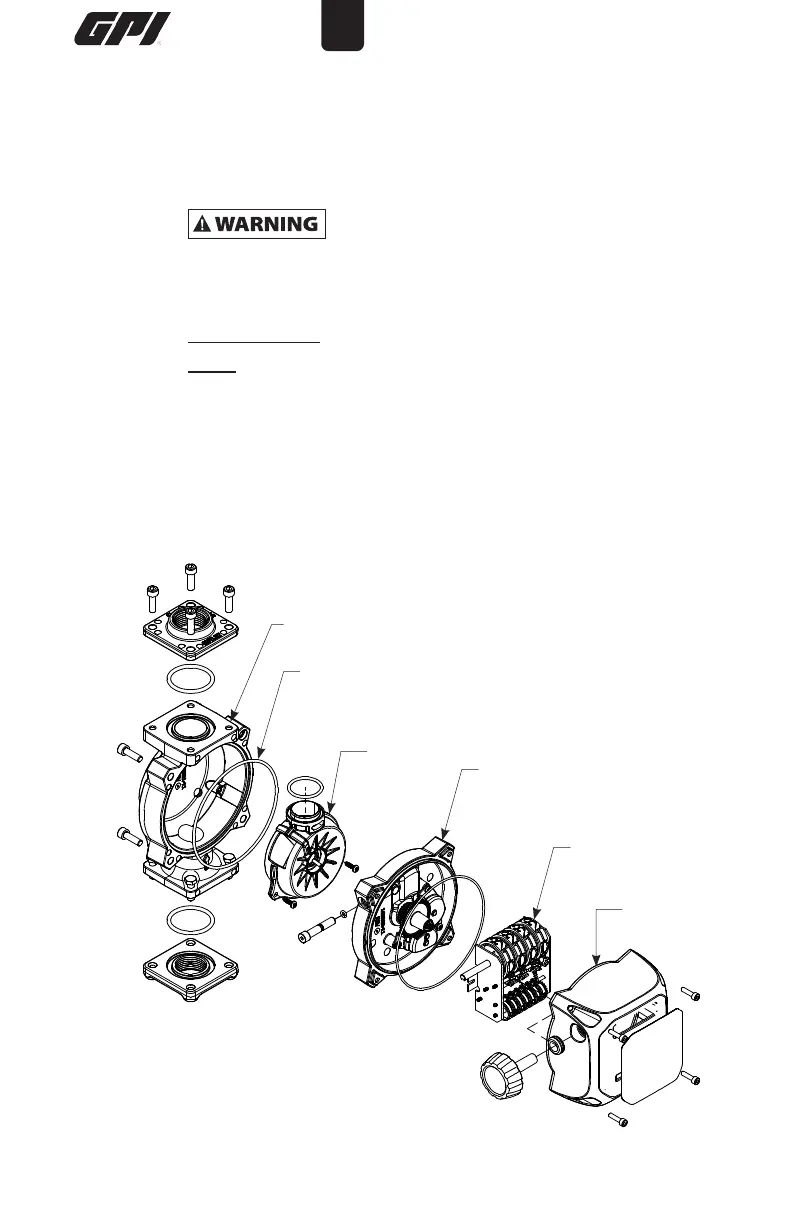

Figure 1
O-ring
Backshell
Nutator
assembly
Coverplate
Register
Gearplate
To Next Page
