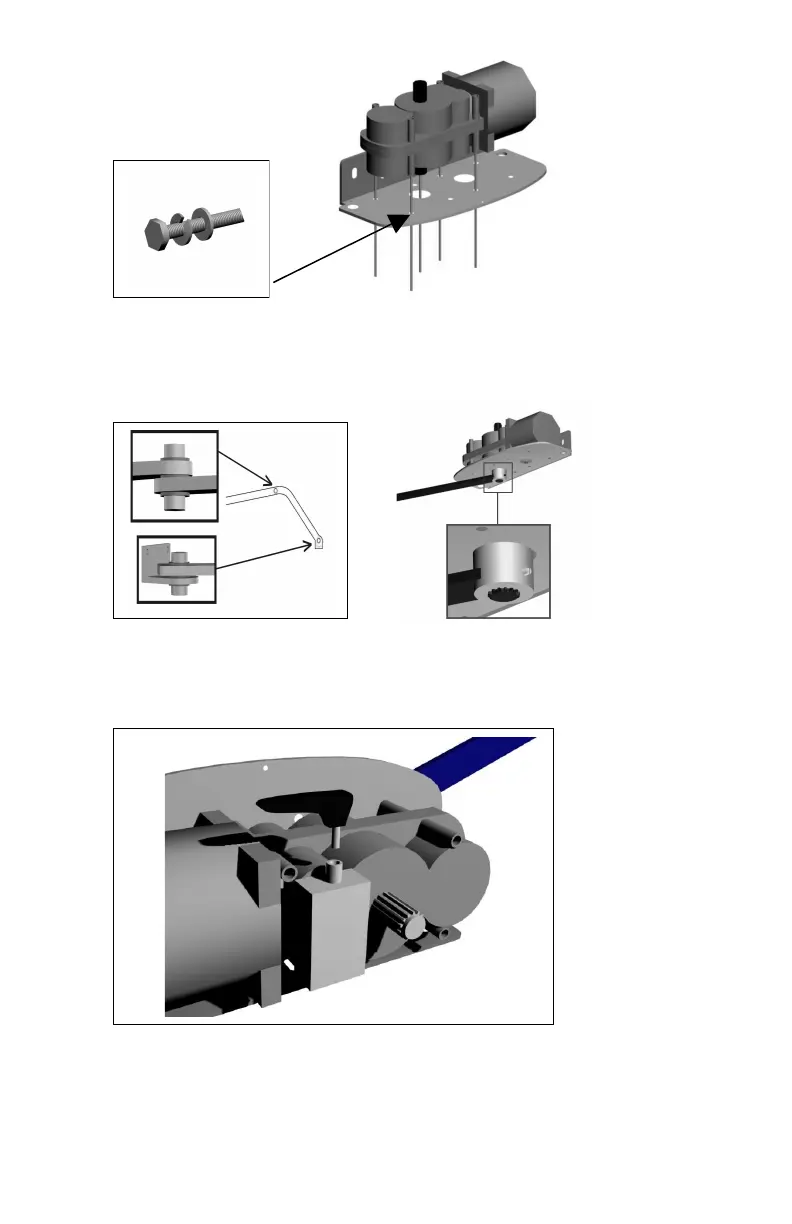

5- Assemble the articulated arm and fix it to the motor shaft like in
fig. 2-3
Fig.2 Fig.3
6- Unclamp the motor turning right or left the key A to hear the first
“click” (fig.4)
Fig.4
7- Moving the articulated arm, locate and the bracket A on the wing,
doing in the manner that the angulations between the two
element of the articulated arm is not higher than the one indicated
A
A
