FEATURES
• Fast, musical transimpedance amplier architecture
• Fully balanced, transformerless XLR microphone input
• High impedance 1/4 inch instrument DI input
• Output connectors: XLR balanced, TRS balanced and TS unbalanced
• 12 position precision gold contact rotary switch gain control
• 0.5% precision metal lm resistors in signal path
• High quality conductive plastic 10dB output trim control
• 75Hz 12dB/octave high pass lter
• Two color LED peak meter shows signal present and peak
• Ribbon mic mode (also great for dynamic mics)- Optimizes signal path for ribbon mics
• Aluminum 1/2 width 1U chassis / two units t together in a standard 1U rack tray
• Sealed gold contact relays for signal switching
• High precision active balanced output circuit
• No electrolytic capacitors in the signal path
• Ultra clean 48 Volt phantom power
• Minimal internal signal wiring
• Built in universal AC power supply / no wall-wart!
• 5 year warranty on parts and labor
• Made in the USA

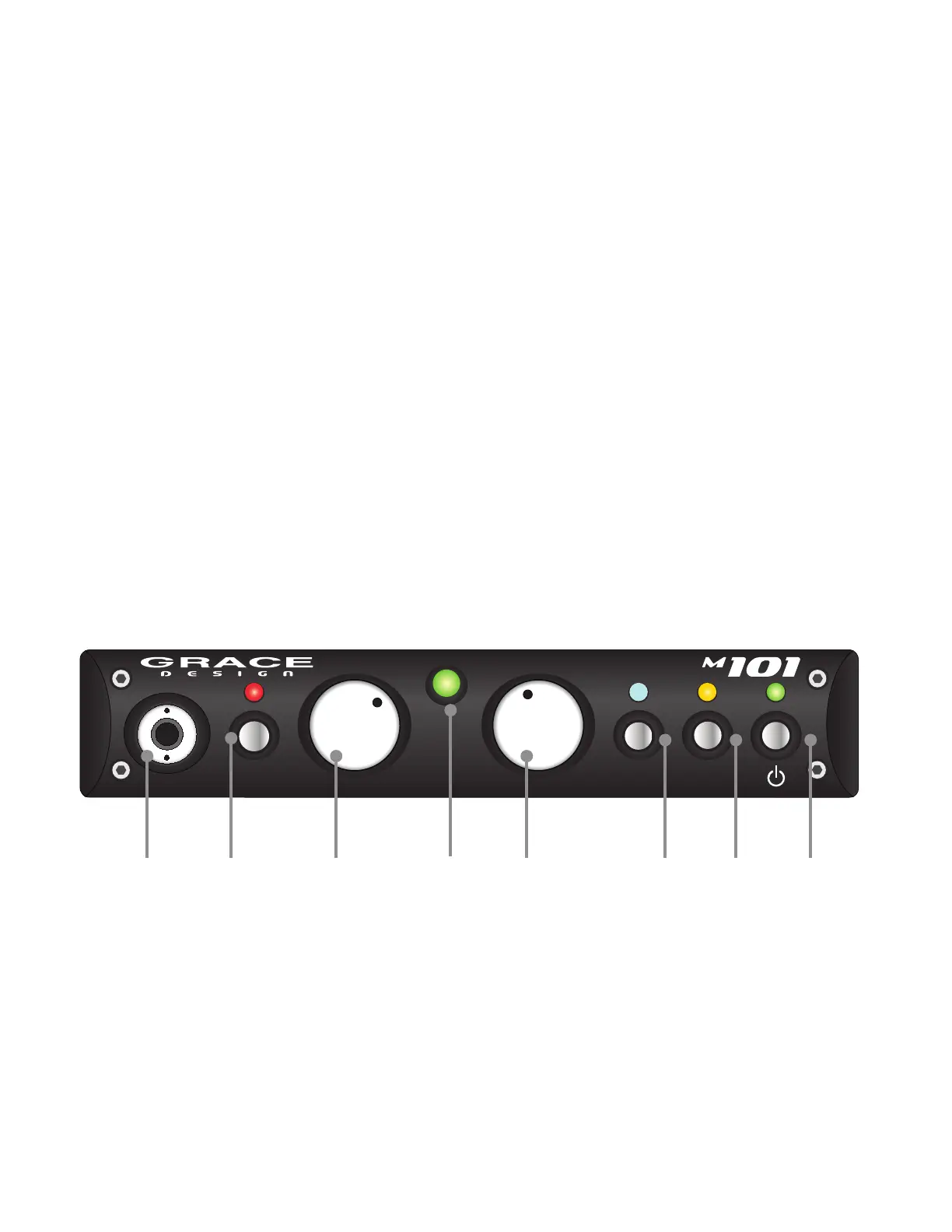

FRONT PANEL FEATURES
1/4” TRS INSTRUMENT HIZ INPUT
For high-impedance instrument or line level inputs.
48V PHANTOM POWER
This switch provides 48 Volts to power condenser microphones. LED indicator illuminates red when active.
GAIN CONTROL
The gain control has 12 positions and adjusts the voltage gain on the microphone input from 10dB to 65dB in
5dB steps. When using the instrument input, the gain range is –10dB to 45dB in 5dB steps.
T R I M
GAIN
ribbon HPF
48V
HIZ
10dB 65dB 0dB
+
10dB
