Graco 214895 User Manual

17307212

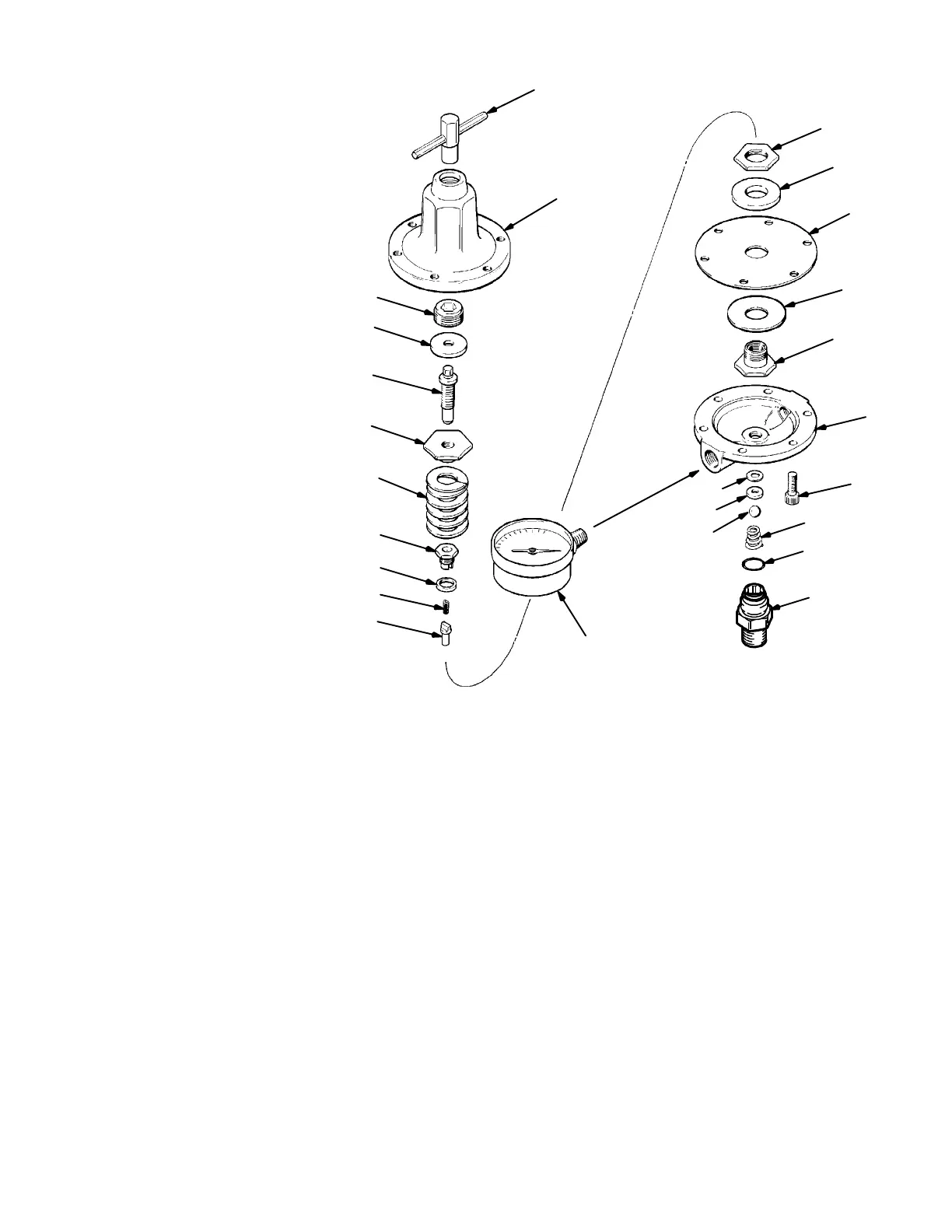

Parts
24
7
19
14
12
11
5
10
{*21
{*3
{*9
2
7
23
4*{
{*15
{*16
{*20
40*{
1
6
18
26*{
22*{
17
1
3
TI0037
Model 26C160, Series A
Model 24A082, Series A
ISO pitch thread inlet and outlet
(Not compatible with US standard pitch.
On model 24A082 only, fluid housing is
coated with PTFE based polymer.)
Includes items 1--40
Ref
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 100644 SCREW, soc hd cap;
0.25”--20 x 0.75” 6
3 111736*{ SPRING, compression 1
4 104319*{ O-RING, PTFE 1
5 105291 SPRING, compression 1
6 195935 HOUSING; stainless steel w/PTFE
coating 3/8--19, ISO female outlet
(24A082 only) 1
17V349 HOUSING; stainless steel 3/8--19, ISO
female outlet (no PTFE coating,
26C160 only)
7 176135 CAP, regulator 1
9 187851*{ STEM, valve 1
10 188004 SCREW, retaining 1
11 171855 NUT, adjustment 1
12 176691 SCREW, adjustment 1
13 171858 NUT, jam; special 1
14 176692 WASHER, flat 1
15 171860*{ GASKET, seat 1
16 15F236* SEAT, valve; tungsten carbide
(24A082 only) 1
17 171862 WASHER, diaphragm 1
18 187879 HOUSING, stem 1
19 176136 SCREW, adjustment 1
20 112365*{ BALL; tungsten carbide 1
21 171867*{ GASKET 1
22 171868 DIAPHRAGM; PTFE with nylon
fabric/Buna-N base 1
23 195934 ADAPTER, inlet; 3/8--19, ISO
male inlet 1
24 215393 KEY, regulator 1
26 172132*{ GASKET; cellulose fibre 1
27 187874 GAUGE, pressure; stainless steel;
100 psi (0.7 MPa, 7 bar);
(24A082 only) 1
40 111858*{ SPRING, compression 1
* Included in Repair Kit 222651.
{ Included in Repair Kit 273024 (for solvent or thin material).
