Graco 214895 User Manual

18 307212

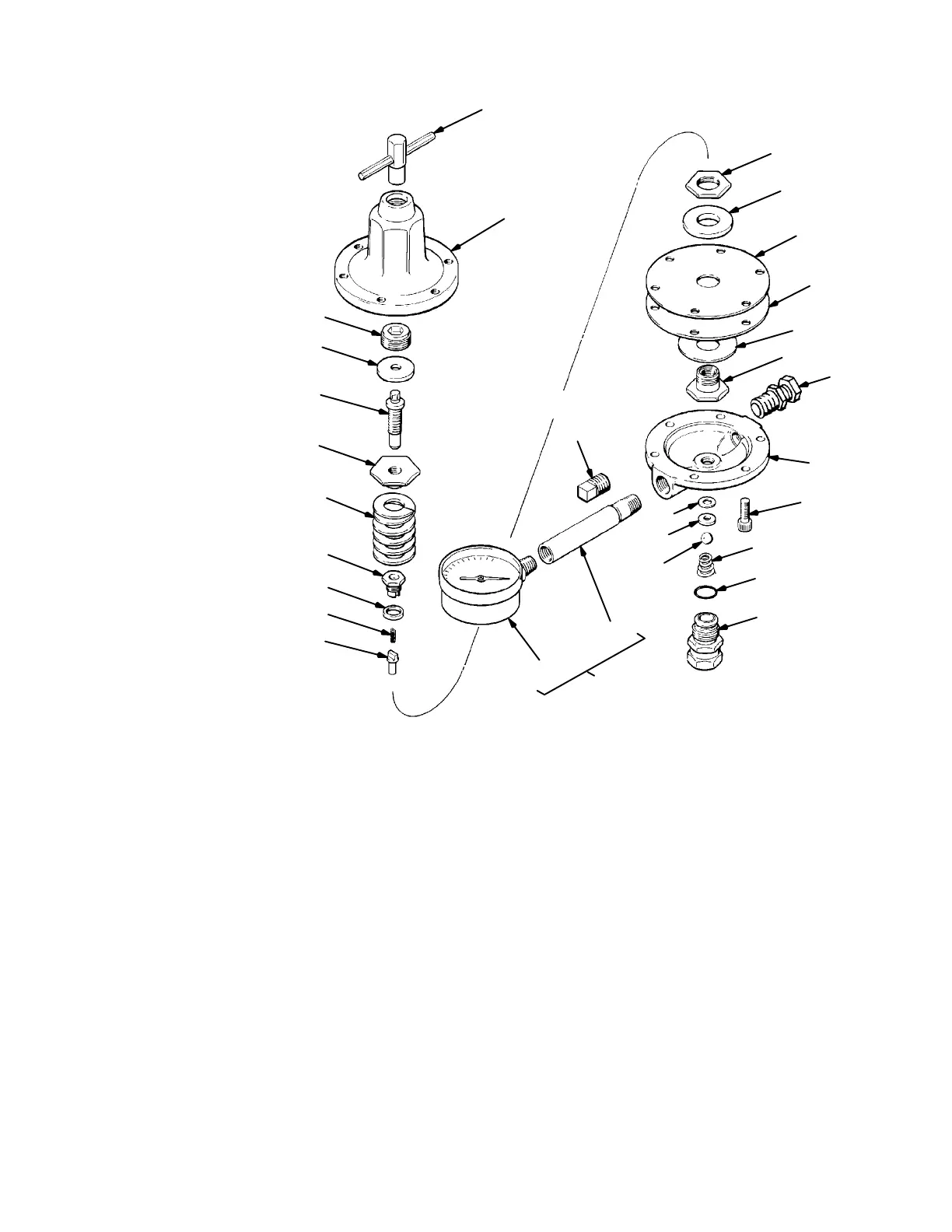

Parts
2
4
7
19
14
12
11
5
10
*21
*3
*9
27
28
23
4*
*15
*16
*20
40*
1
6
32
18
26*
25*
17
13
Model
221118 only
M
o
d
e
l
2
1
7
3
1
4
,
S
e
r
i
e
s
F
With gauge. Includes items 1--32, 40
Model 221118, Series E
Without gauge. Includes items
1--26, 32--40
22*
39
Model
217314 only
Ref
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 100644 SCREW, soc hd cap;
0.25”--20 x 0.75” 6
3 111736* SPRING, compression 1
4 104319* O-RING, PTFE 1
5 106480 SPRING, compression 1
6 187880 HOUSING; stainless steel 1
7 176135 CAP, regulator 1
9 187851* STEM, valve 1
10 188004 SCREW, retaining 1
11 171855 NUT, adjustment 1
12 176691 SCREW, adjustment 1
13 171858 NUT, jam; special 1
14 176692 WASHER, flat 1
15 171860* GASKET, seat 1
16 15F236* SEAT, valve; tungsten carbide 1
17 171862 WASHER, diaphragm 1
18 187879 HOUSING, stem 1
19 176136 SCREW, adjustment 1
20 112365* BALL; tungsten carbide 1
21 171867* GASKET 1
22 180052* DIAPHRAGM; PTFE 1
23 235209 UNION, swivel; 3/8 npsm 1
24 215393 KEY, regulator 1
25 180051* DIAPHRAGM, PET 1
26 172132* GASKET; cellulose fibre 1
27 187876 GAUGE, pressure; stainless steel;
300 psi (2.1 MPa, 21 bar)
(217314 only) 1
28 187877 TUBE, riser (217314 only) 1
32 235207 ADAPTER, straight union; 3/8 npsm 1
39 111697 PLUG, pipe; 1/4 npt(m);
(221118 only) 1
40 111858* SPRING, compression 1
* Included in Repair Kit 222652.
