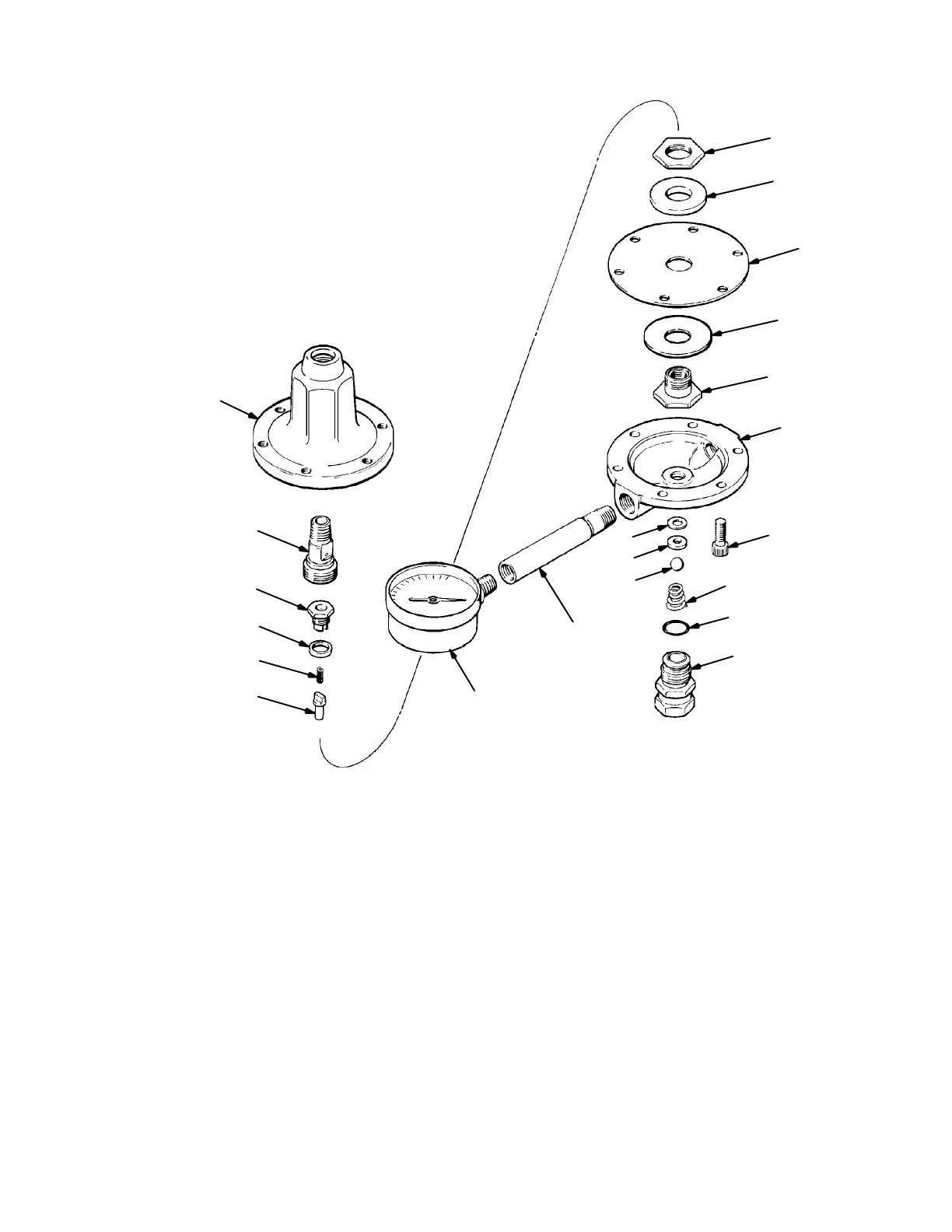

Parts
Model 214980 Series F
Includes items 1--40
*9
7
29
10
*21
*3
27
28
*15
*16
*20 40*
4*
23
1
18
26*
22*
17
13
6
Ref
N
o. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 100644 SCREW, soc hd cap;
0.25”--20 x 0.75” 6
3 111736* SPRING, compression 1
4 104319* O-RING, PTFE 1
6 187880 HOUSING; stainless steel 1
7 176135 CAP, regulator 1
9 187851* STEM, valve 1
10 188004 SCREW, retaining 1
13 171858 NUT, jam; special 1
15 171860* GASKET, seat 1
16 15F236* SEAT, valve; tungsten carbide 1
17 171862 WASHER, diaphragm 1
18 187879 HOUSING, stem 1
20 112365* BALL; tungsten carbide 1
21 171867* GASKET 1
22 171868* DIAPHRAGM; PTFE with
nylon fabric/Buna-N base 1
23 235209 UNION, swivel; 3/8 npsm 1
26 172132* GASKET; cellulose fibre 1
27 187875 GAUGE, pressure; stainless steel;
30 psi (210 kPa, 2.1 bar) 1
28 187877 TUBE, riser 1
29 176463 FITTING, air line 1
40 111858* SPRING, compression 1
* Included in Repair Kit 222651.
