20 307212

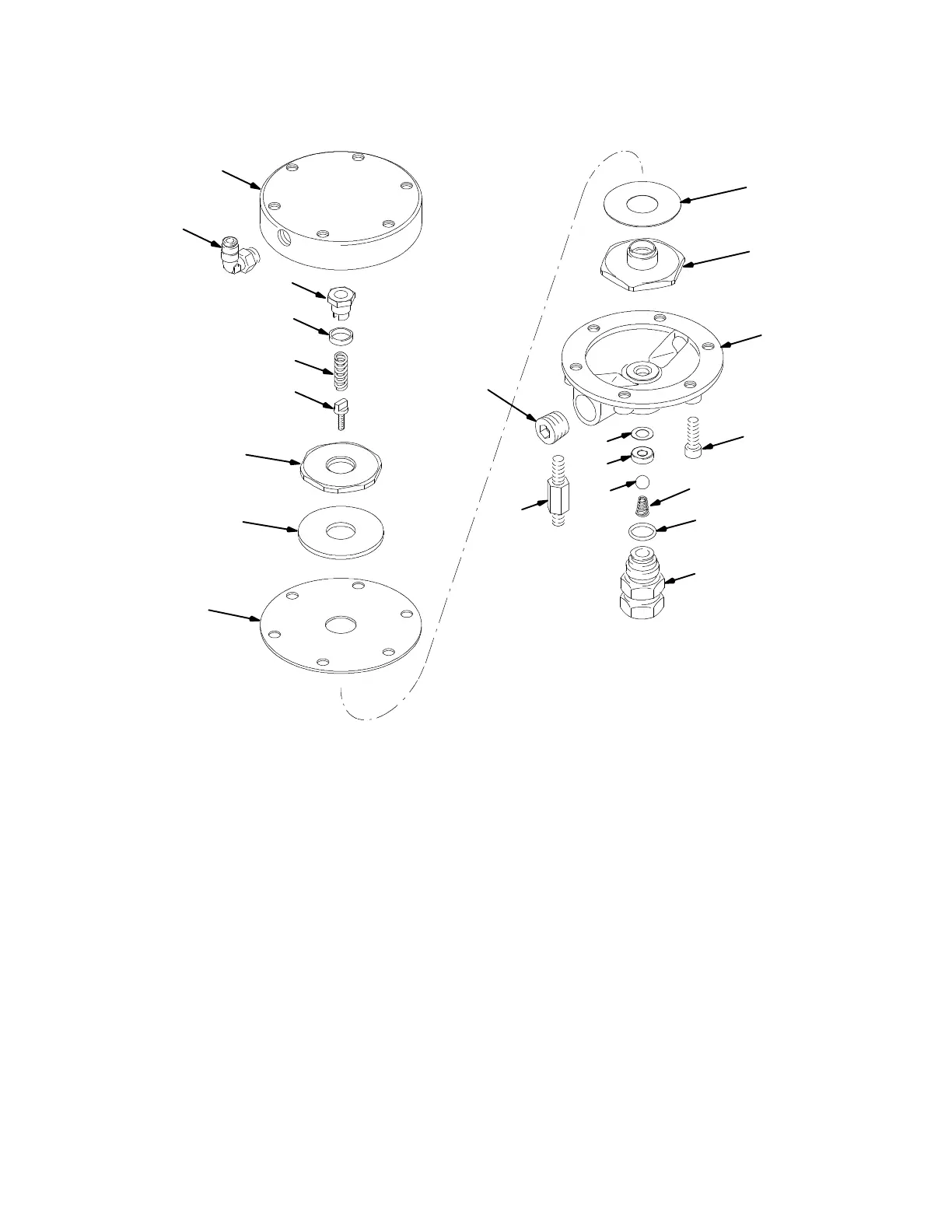

Parts
TI1697A
Model 244375 Series B
Includes items 1--41
*9
7
10
*21
*3
*15
*16
*20
40*
4*
23
1
18
26*
*22
13
6
29
17
19
41
Ref
N
o. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 100644 SCREW, soc hd cap;
0.25”--20 x 0.75” 4
3 111736* SPRING, compression 1
4 104319* O-RING, PTFE 1
6 187880 HOUSING; stainless steel 1
7 833166 CAP, regulator 1
9 187851* STEM, valve 1
10 188004 SCREW, retaining 1
13 171858 NUT, jam; special 1
15 171860* GASKET, seat 1
16 15F236* SEAT, valve; tungsten carbide 1
17 171862 WASHER, diaphragm 1
18 187879 HOUSING, stem 1
19 197213 STUD, mounting 2
20 112365* BALL; tungsten carbide 1
21 171867* GASKET 1
22 171868* DIAPHRAGM; PTFE with
nylon fabric/Buna-N base 1
23 235209 UNION, swivel; 3/8 npsm 1
26 172132* GASKET; cellulose fibre 1
29 114151 FITTING, air line 1
40 111858* SPRING, compression 1
41 101748 PLUG, pipe 1
* Included in Repair Kit 222651.
