Graco 220-240 - Complete System; Includes Items; Model 220-240, Series E; Model 221-076, Series E Basic System Includes Items 2 - 54 and

15
307–760
PARTS LIST
PRESSURE ROLLER SYSTEM
Model 220–240, Series E
Complete System
Includes items 2–87
Model 221–076, Series E
Basic System
Includes items 2 – 54 and 65 – 87
NOTE: Part numbers and drawings for items 2, 3, 4, 9, 12, 14, and 55 – 64 are given on pages 16 and 17.
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
10 218–973* PRIMING VALVE KIT 1
11
181–152 GUIDE, diaphragm 1
15
108–225 CAPSCREW , socket head;
5/16–18x 1–1/8” long 4
16 104–008 LOCKW ASHER, spring, 5/16” 4
17 275–619* DIAPHRAGM 1
18 218–981 CONNECTING ROD & BEARlNG 1
20 108–237 CAPSCREW , socket head;
No.8–32 x 5/8” 4
21 100–079 LOCKW ASHER, spring, 0.168” 4
22 181–147 HOUSING, conn rod;
Always order two of Ref No. 27
when replacing housing 1
23
181–839 COVER, front 1
24 108–236 SCREW , mach, fiIh, No. 8–32 x 1.75” 4
25 102–313 CAPSCREW , hex head;
1/4–20 x 1.75” 2
26 100–028 LOCKW ASHER, internal;
shakeproof; 1/4” 3
27 108–213 PIN, dowel 2
28 108–230 SCREW , mach, hex washer head;
self tapping; 1/4–14 x 1” 2
29 181–215 LABEL, designation, front 1
30 181–575 MOTOR, electric
Includes two item 30a and one of item 53 1
30a
596–421 .TERMINAL 6
31 181–573 BASE, pump 1
32 181–182 HANDLE
33 108–224 SCREW , thd forming, pnh;
No. 8 x 7/8” 6
34 105–679
SWITCH, toggle 1
35 181–213
LABEL, designation, right hand 1
36 105–659 TOGGLE, boot 1
37 181–626 CORD, power supply 1
38 106–013 BUSHING, strain relief 1
39 108–420
RECTIFIER, bridge 1
40 065–120
WIRE, jumper
specify length when ordering 5 in.
41 183–301 TERMINAL, ground 1
42 181–799 COVER, base 1
43 108–220 BUMPER 4
44
181–231 TUBE, suction 1
45 181–159 NUT , coupling 1
46
181–160 NlPPLE, hose 1
47
108–231 CLAMP , hose 2
48
181–163 HOUSING, filter 1
49
181–164 FILTER 1
52
178–342 CLAMP , hose 2
53 181–613** LABEL, W arning 1
54
181–214 LABEL, designation, left hand 1
65
108–199 HOLDER, fuse 1
67 104–188*
FUSE, electrical, 3AG, 1 amp 1
68
108–223 SCREW , thd forming, pnh;
No. 6 x 1/2” 1
69 181–218 GROMMET
, rubber 1
70 100–072 NUT
, hex, mscr; No. 6–32 UNC–2B 3
71 108–421 STRIP
, terminal 1
72 104–038 SCREW
, mach, pnh;
No. 6–32–2a x 0.75” 2
78 102–799
TERMINAL (for ground wire) 2
82 103–181 LOCKWASHER, No. 6 1
83 103–854 SCREW
, mach, bdgh;
No. 6–32 UNC–2a x 1/4” 1
85 108–716 TERMINAL 1
86 065–239 WIRE
specify length when ordering 8 in.
87 065–236 WIRE specify length when ordering 8 in.
*Recommended “tool box’ spare parts.
**Extra warning labels available at no charge.




M
BLUE
YLW/GRN
RED
BLACK
30a
78
78
41
87
86
30a
30a
40
30a
85
65
39
12
34
71

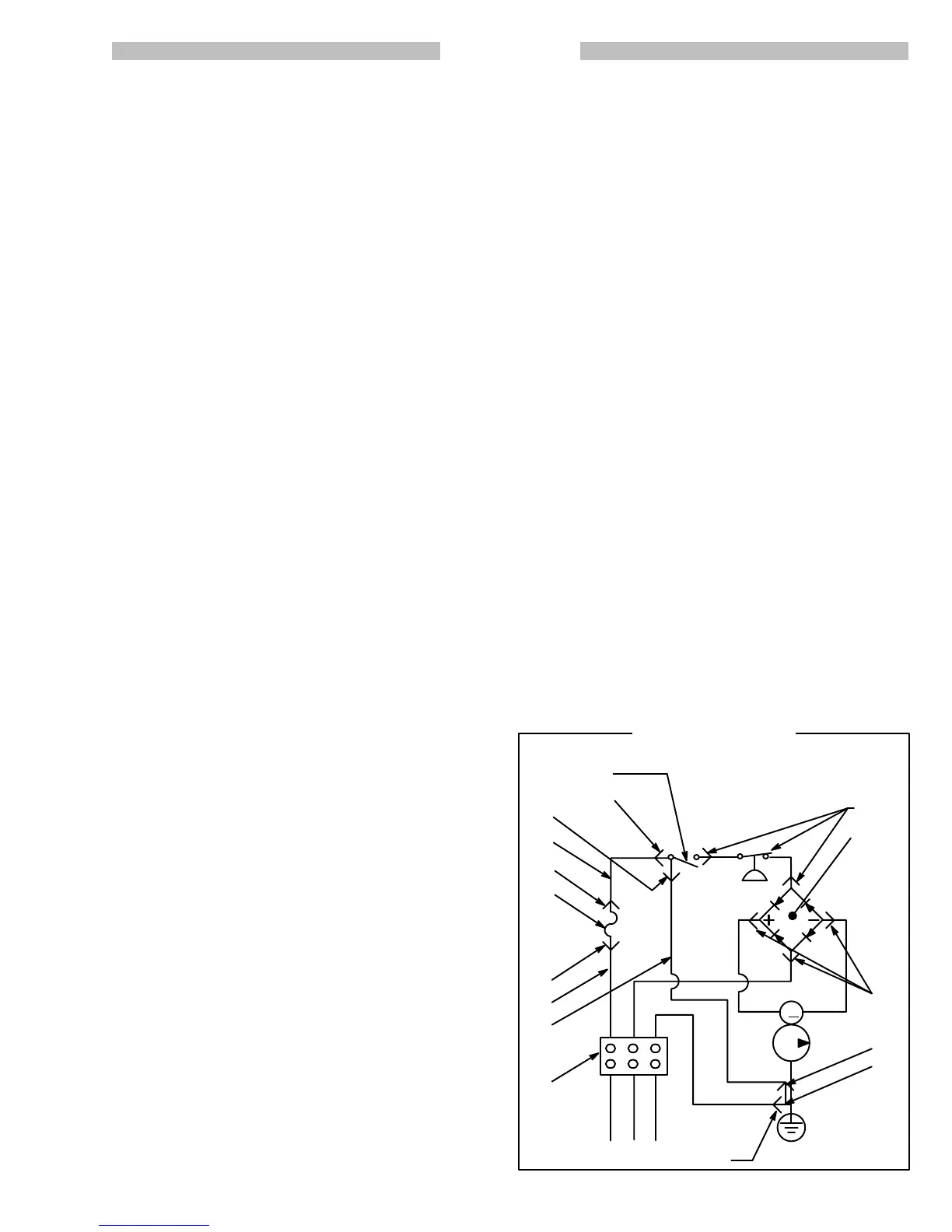

WIRING SCHEMA TIC
Ref
Ref
Ref
Ref
Ref
