Graco 220-240 - Parts Drawing

16
307–760
PARTS LIST
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
2 220–970 OUTLET VALVE KIT
Includes items 2a–2f 1
2a
222–349 .FITTING, outlet 1
2b
180–454 .GASKET 1
2c
107–521 .SPRING 1
2d
101–956 .BALL 1
2e
218–968 .HOUSING, seat, valve 1
2f
180–455 .SEAL, washer 1
3
220–931* INLET VALVE KIT
Includes replaceable item 4 1
4 183–419
.GASKET 1
9
181–146 HOUSING, pump 1
12
218–974 PRESSURE SWITCH KIT
Includes item 12a 1
12a 108–195
.O–RING 1
14
181–209 RETAlNER 1
55
218–935 FRAME, roller
Includes items 55a–55e 1
55a 218–934 DIFFUSER,
roller 1
55b 108–808
SEAL, u-cup, retainer 1
55c 183–420 NUT
, retainer 1
55d 218–582
FRAME, roller 1
55e 101–983 SETSCREW 1
60 218–954 ROLLER VALVE
Replaceable parts are shown in the
drawing below for Kit 218–960 1
62 107–590 COVER,
roller , 1/2” nap 1
63 218–775
EXTENSION, adjustable, 0.45–0.9 m
(18–36”) long 1
64 108–356 HOSE, fluid, nitriIe rubber; 6 m
(1/4”) ID; cpld 3/8 npsm(f);
7.6 m (25’) long 1
*Recommended “tool box’ spare parts.

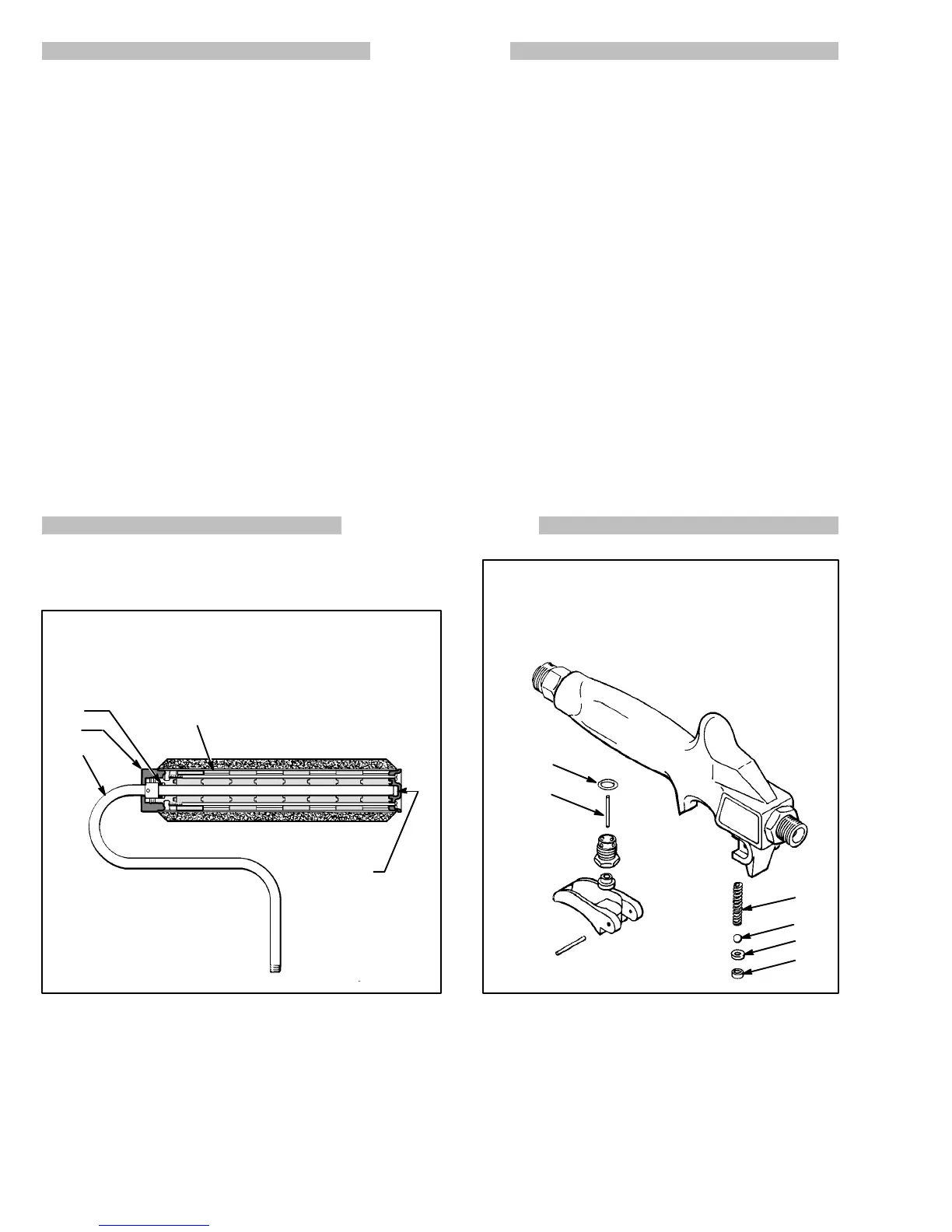

PARTS DRA WING
55c
55b
55a
55e
55d
Ref No. 55
Roller Frame
Includes items 55a - 55e
A
B
D
C
E
F
ROLLER V AL VE REP AIR KIT 218–960
Kit includes items A through F
Individual parts are not sold separately .
See page 9 or the manual supplied with the
kit for repair instructions.
