Parts
2 309351E
Parts
Part Number/Assembly Name
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and
recycle it in a responsible manner.
• Perform the Pressure Relief Procedure in your
pump manual.
• Drain and dispose of fluids according to applicable
regulations. Refer to the material manufacturer’s
Safety Data Sheet.
• Deliver remaining product to a recycling facility.
1
2
3
4
7
5
3
6

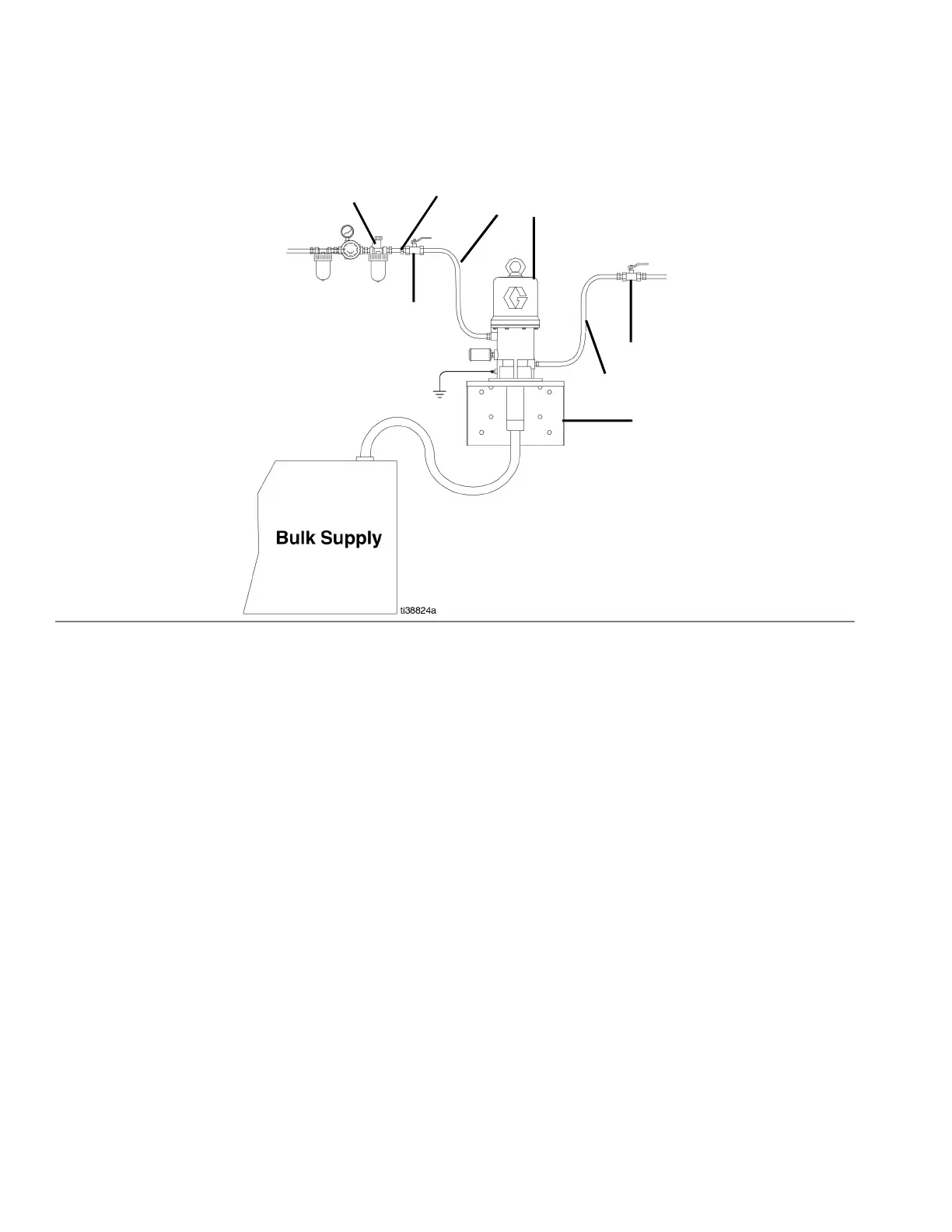

Ref. Part Description Qty.
1 237526 PUMP, 3:1 Fire-Ball 425 (used on
model 244846; see manual
308485)
1
238108 PUMP, 6:1 Fire-Ball 425 (used on
model 244628; see manual
308608)
1
205626 PUMP, 10:1 Fire-Ball 425 (used
on model 244847; see manual
308655)
1
2 217072 FILTER, Regulator, Lubricator,
1/2 in. npt(fbe) (see manuals
308167 and 308169)
1
3 222068 KIT, hose and fitting; 18 in. (see
manual 306520)
1
4 110225 VALVE, vented ball; 1/2 in,
npt(fbe)
1
5 108537 VALVE, fluid shutoff; 3/4 in.
npt(fbe)
1
6 238245 BRACKET, wall mounting
1
7 158491 NIPPLE, 1/2 in. npt
1
