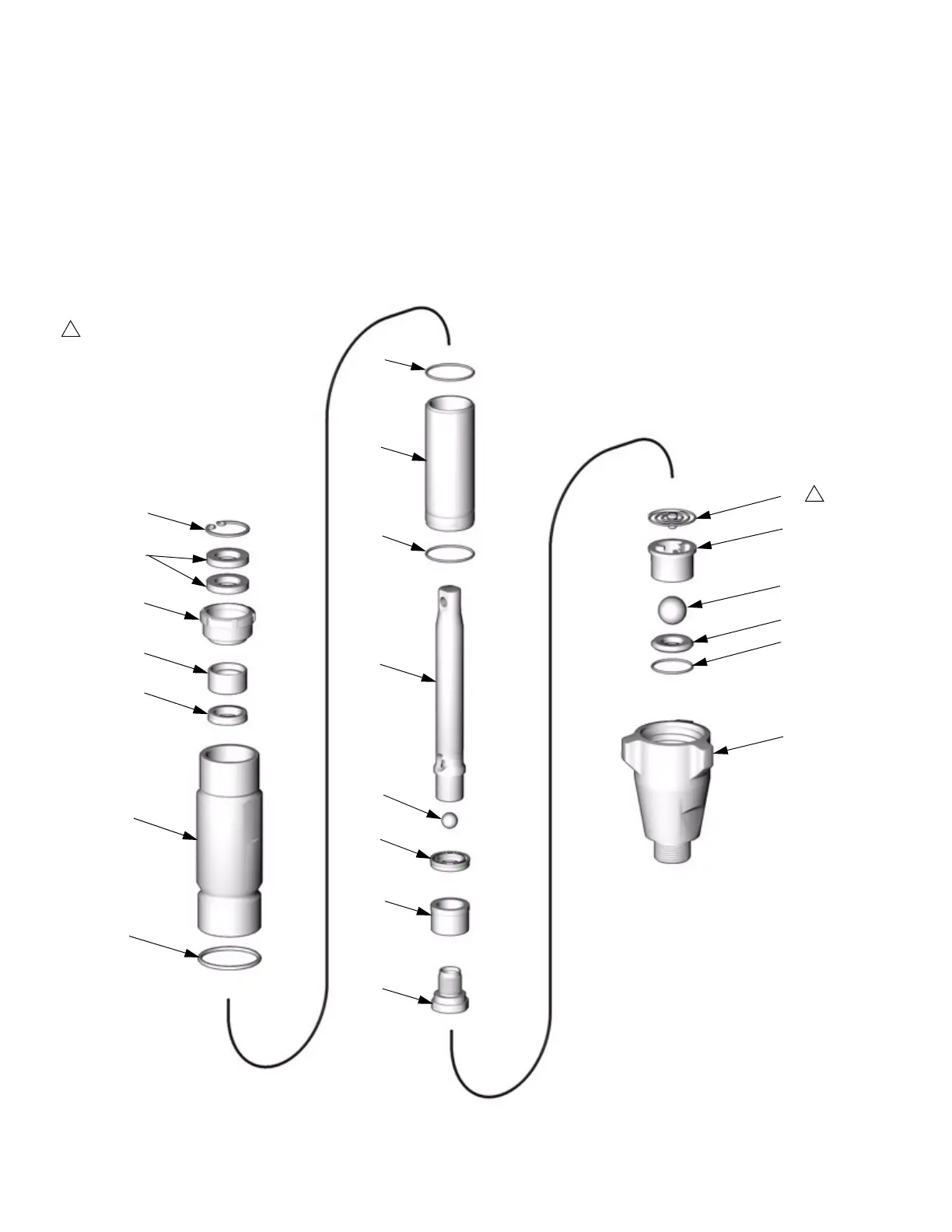

Component B (Resin) Pumps
Part No. 245970, E-20 and E-XP1; includes items 1-7, 9-23
Part No. 245971, E-XP2; includes items 1-7, 9-22
Part No. 245972, E-30; includes items 1-22 (shown)
NOTE: These pumps were also used on Component A (ISO) side of Reactors built before May 2003.
*17
19
*20
*21
*22
TI2577B
Used on 245972 only.
1
1
2
*3
*3
4
5
7
8*
10*
9
11*
12
*13
*14
*15
*16
1
