Disassembly
309577K 13

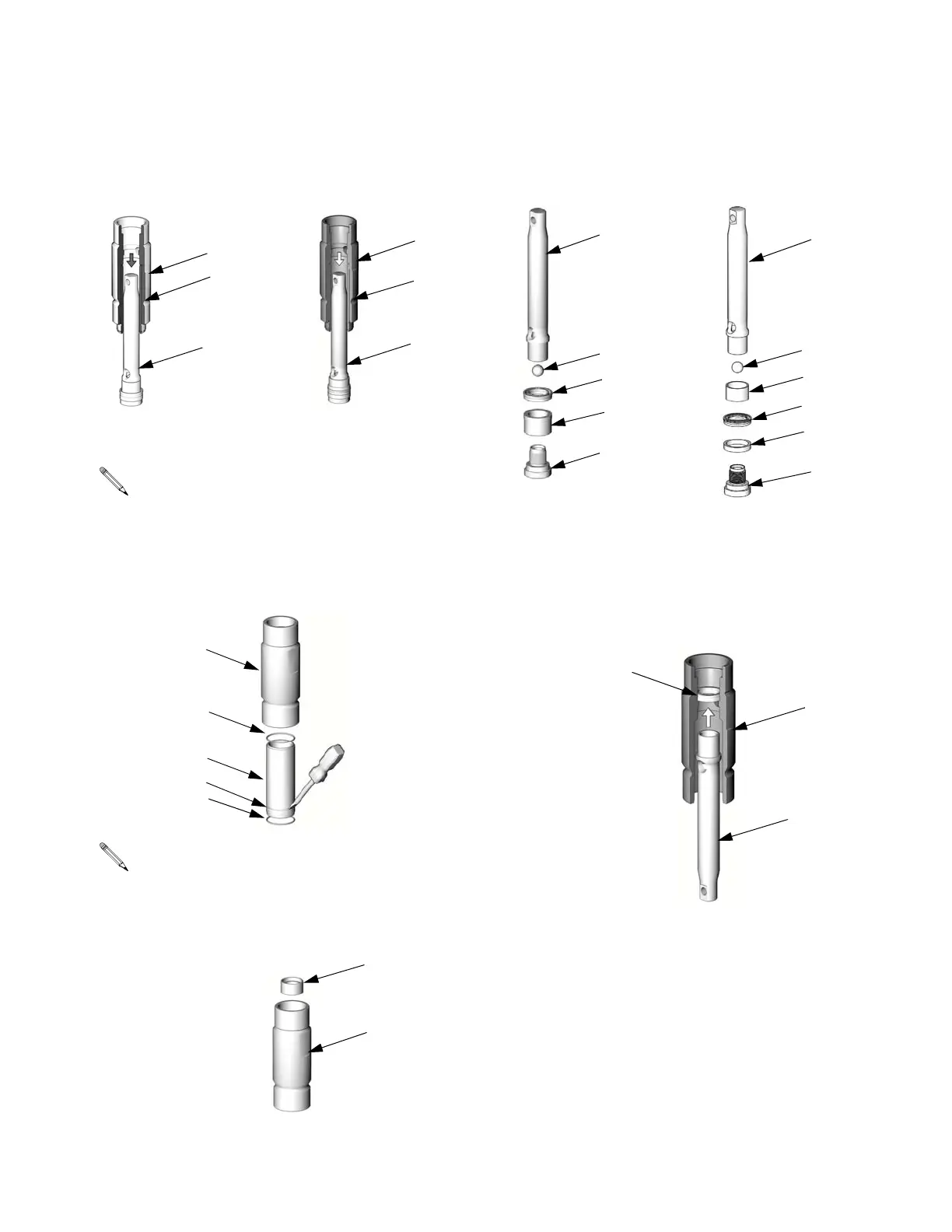

14. Tap rod (1) with non-sparking hammer to drive it
out of cylinder (2).
Sleeve (4) may come out with rod.
15. Using screwdriver in groove (H), remove sleeve
(4) from cylinder (2), or pull it off rod. Remove
o-rings (3).
Be sure top o-ring (3) comes out.
16. Remove bushing (17).
TI2672A
1
2
4
TI2672B
1
2
4
246831, 262647, 245971,
and 262648 only
T
ypical configuration
TI2670A
2
3
4
H
3
TI2669B
17
2
17. Unscrew piston (7) from rod (1). Remove ball
(16), u-cup (13), and bushing (14).
18. Insert piston end of rod (1) into cylinder (2) and
push u-cup (20) out.
TI2666A
1
16
13
7
14
1
16
18
13
7
14
TI2666B
246831, 262647, 245971,
and 262648 only
Typical configuration
TI2671A
1
2
20
