Graco 25M212 - Parts Identification; Parts List and Diagrams; Kits and Accessories

Parts
10 3A4936E
Parts

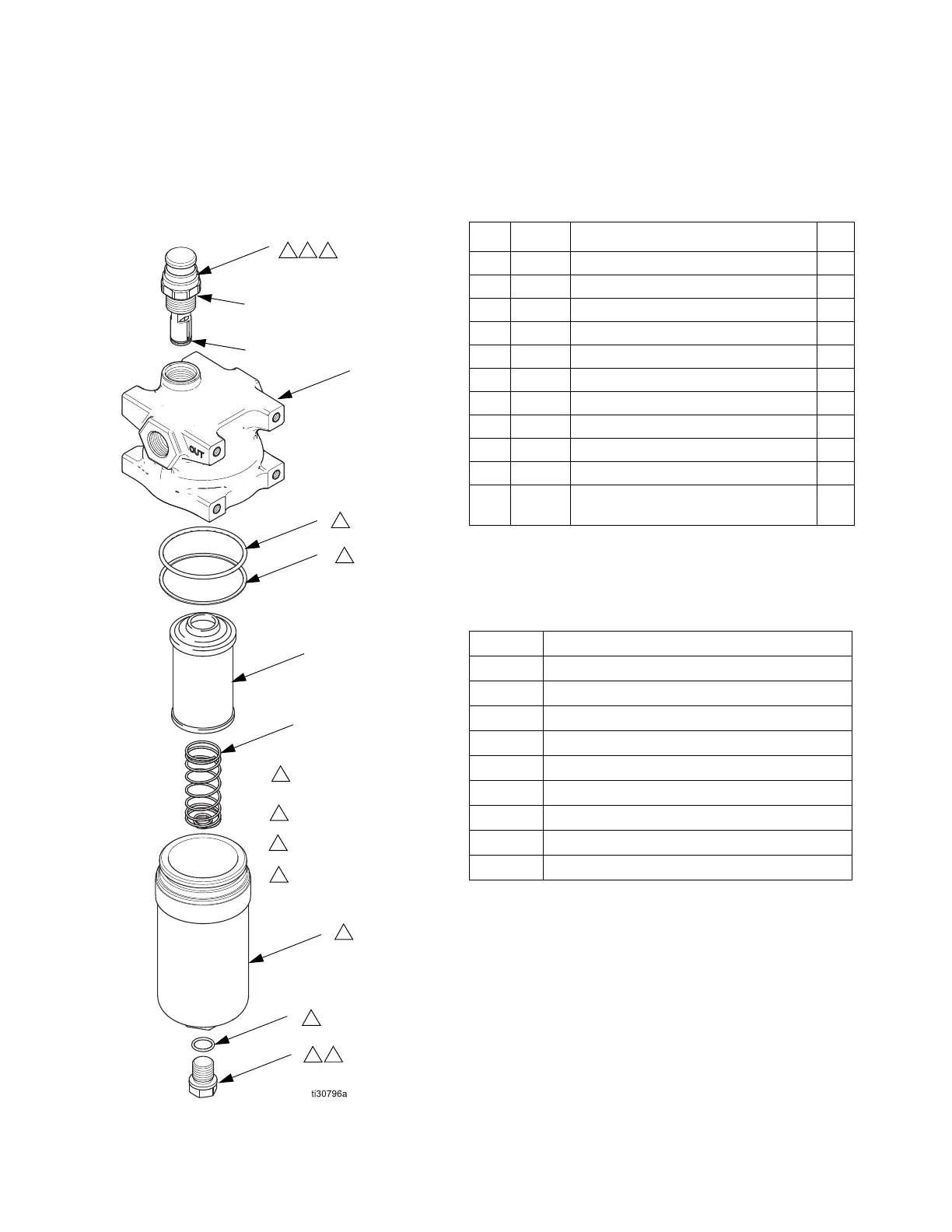

Model 25M212 shown Part No./Description
Kits and Accessories
1
Apply
lubric
1
4
3
1
2
4
8
9
5
6
7
1
2
Apply sealant to threads
2
2
3
Apply lubricant to o-ring
3
3
3
3
Torque to 50 in-lbs
4
3a
3b
4
Ref Part Description Qty
1 17L906 Filter housing 1
2 17L907 Bowl 1
3 25M213 Indicator, PTFE 1
3a C20111 O-ring, size 119, Viton 1
3b 109576 O-ring, size 016, Viton 1
4 104444 O-ring, size 908, Viton 1
5 104445 O-ring, size 233, Viton 1
6 104443 O-ring, backup, Viton (#233) 1
7 17L928 Filter compression spring 1
8 17L927 Filter plug, 3/4-16 UNF 1
9 -- Filter element (not included, see Kits
and Accessories)
1
Part No. Description
108116 Filter housing with 60 mesh element
108117 Filter housing with 100 mesh element
108118 Filter housing with 200 mesh element
17S338 Kit, O-ring, Red Alert, Viton (Complete)
17S339 Kit, O-ring, Red Alert, PTFE
17S340 Kit, O-ring, Indicator, PTFE
108116 60 mesh (250 micron) element only
108117 100 mesh (149 micron) element only
108118 200 mesh (74 micron) element only
