308645 11
Service
Replace Swivel

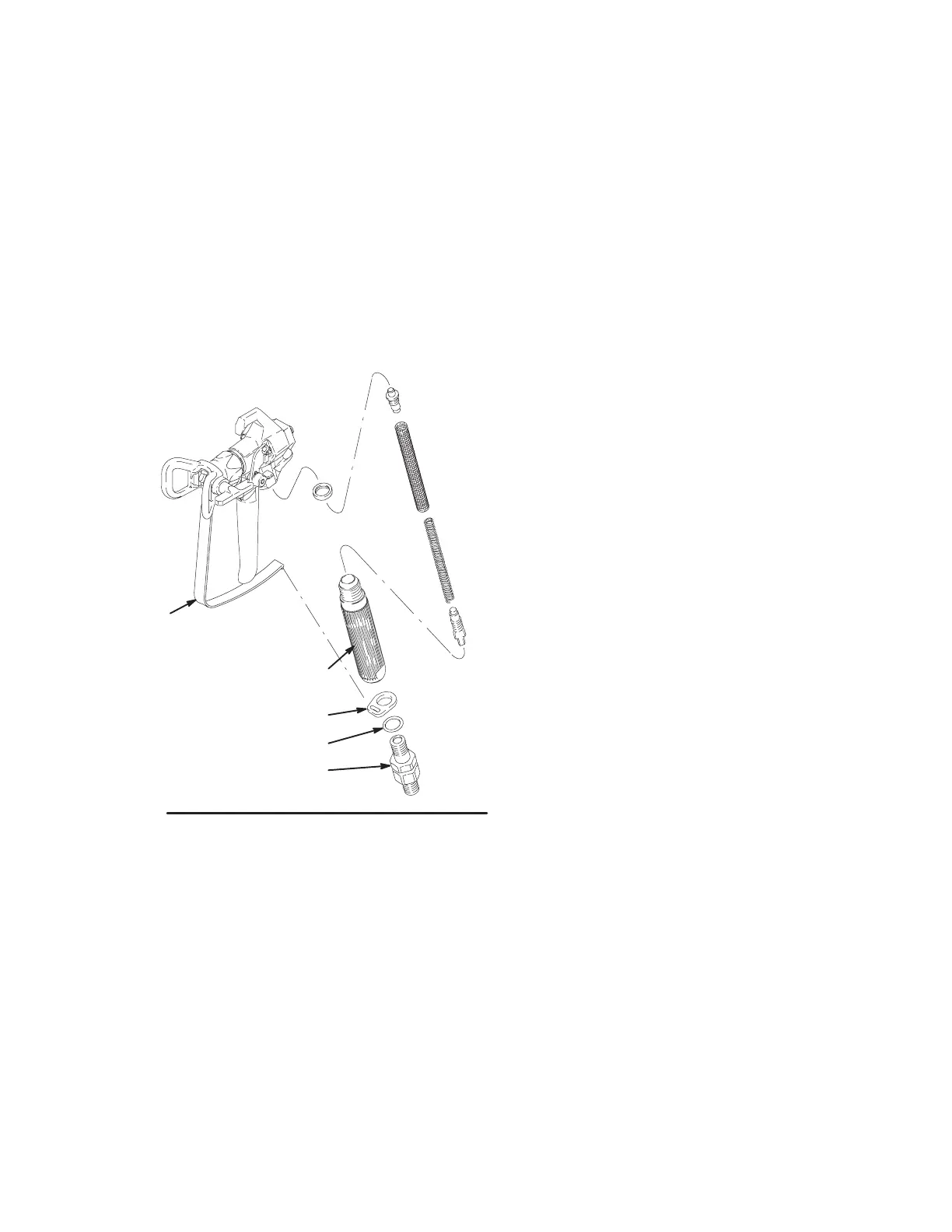

(See Fig. 10)
Disassembly
1. Follow Pressure Relief Procedure on page 5.
2. Push up on trigger guard (12) and swing trigger
guard away from trigger (5).
3. Unscrew gun handle (6) from housing (26).
Remove filter and clean in compatible solvent.
4. Remove swivel (15), guard retainer (42) and
cushion o-ring (43).
5. Save guard retainer and cushion o-ring.
05968
Fig. 10
6
12
42
43
15
Reassembly
1. Clean internal thread of handle (6).
2. Install guard retainer (42), cushion o-ring (43) and
swivel (15).
3. Apply PST pipe seal (included in Swivel Kit
238817) to external thread of swivel (15) that
connects to handle (6).
4. Install swivel (15) into handle (6). Torque swivel to
250 in-lb.
5. Engage trigger guard (12) to retainer guard (42).
To Next Page
