Graco EM 390 - Page 24

308-088

      
 

    

    

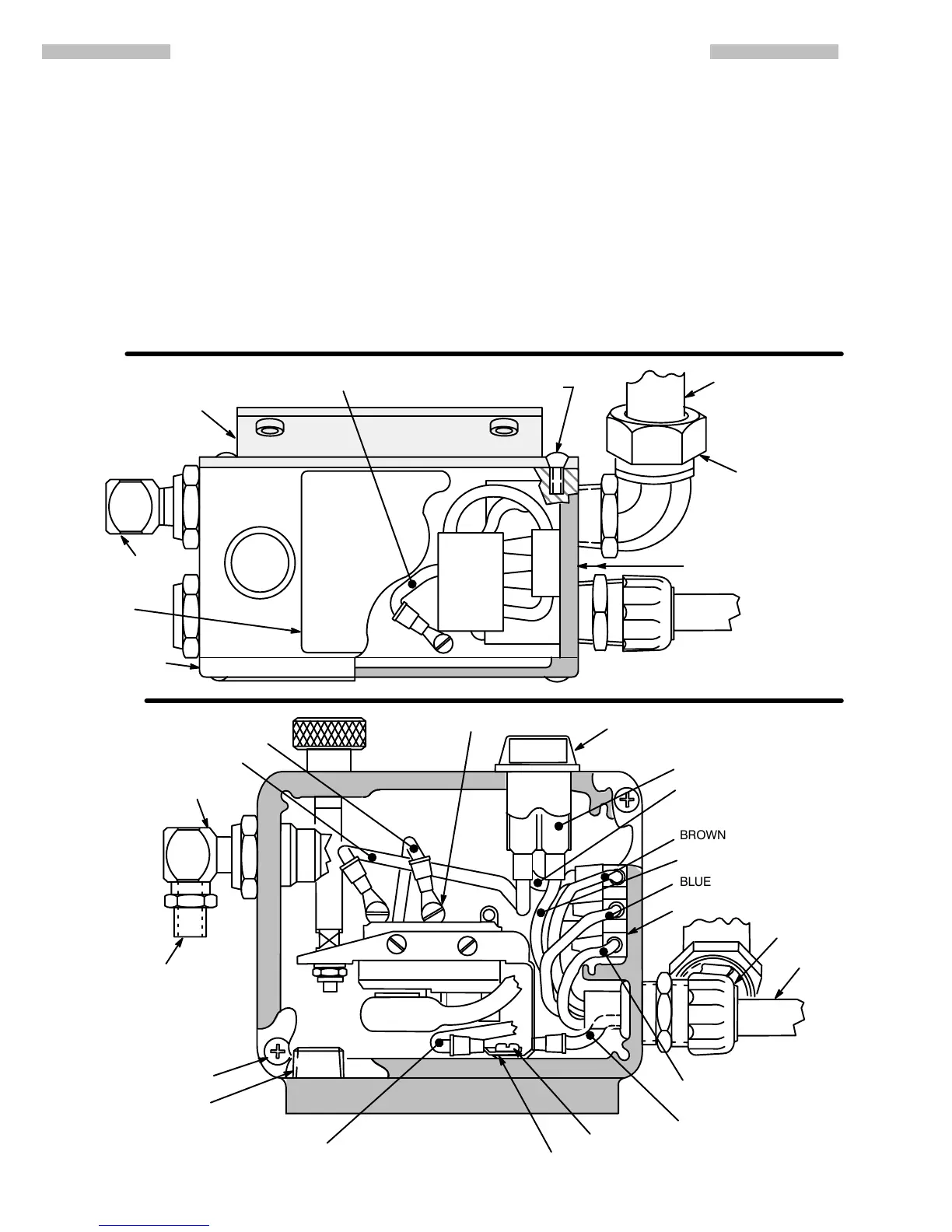

301 222-196 BARE PRESSURE CONTROL
Includes replaceable item 301a 1
301a 109-191 .SWITCH, on/off 1
302 100-035 SCREW, mach, pan head, 8-32 x
5/16'' 1
303 157-021 LOCKWASHER, internal, No. 8 1
304 108-295 RELIEF, strain, cord 1
305 102-932 CONNECTOR, conduit, 90
 1
306 183-963 CORD, supply, power 1
308 183-960 LABEL,
CAUTION 1
309 100-840 ELBOW, street, 1/4 npt 1
312 218-372 CONDUCTOR, with terminal 1
313 215-861 CONDUCTOR,
 with terminals 1
315 162-453 NIPPLE, 1/4 npsm x 1/4 npt 1
317 107-436 TERMINAL STRIP 1
318 107-438 SCREW, mach, flh, No. 5-40
x 7/8" 2
319 101-792 LOCKWASHER, No. 5, external 2
320 100-975 NUT, hex, No. 5-40 2
321 218-371 CONDUCTOR, with terminal 1
322 222-195 CONDUCTOR, with terminal 1
325 101-754 PLUG, pipe, 3/8 npt x .48" 1
ÇÇÇ
ÇÇÇ
ÇÇÇ
BROWN
BLUE
GREEN
(from terminal strip)
GREEN/YELLOW
(from motor)
GREEN


REF 32
301a
304
317
Ref 3
REF 52
306
305
308
309
315
Ref 309
302,303
321
318,319,320
BLUE (from motor)
325
TERMINAL STRIP
MOUNTING HARDWARE
BROWN (from motor)
322
GREEN/YELLOW
REF 17
13a
13a
13c
313
REF 16
13g
