Displacement Pump Service
307427ZAF 29
Displacement Pump Parts

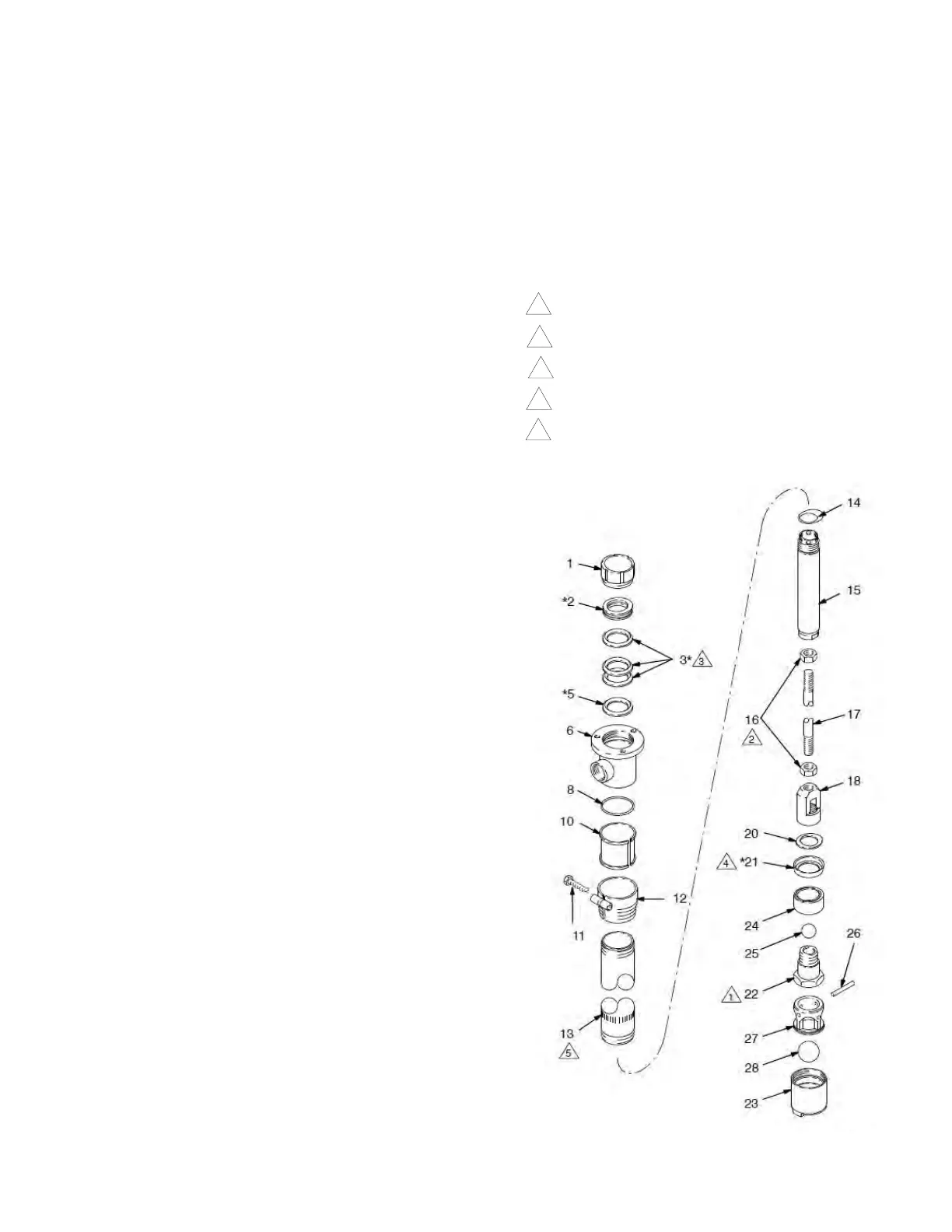

Model 237253 Displacement Pump, Series A
200 Liter (55 Gallon) Size, Stainless Steel, PTFE Packed
* These parts are included in Repair Kit 213013, which
may be purchased separately.
Ref.
No. Part No. Description Qty.
1 180049 NUT, packing; stainless steel 1
2* 178543 GLAND, female; stainless steel 1
3* 172487 V-PACKING; PTFE 3
5* 172385 GLAND, male; stainless steel 1
6 210876 HOUSING, outlet 1
8 104537 O-RING; PTFE 1
10 172405 BUSHING; nylon 1
11 104587 BOLT, M8 x 1.25 1
12 210877 ADAPTER, bung; stainless steel 1
13 178863 CYLINDER, 55 gal.; stainless
steel
1
14 177156 O-RING; fluoroelastomer 1
15 217211 ROD, displacement 1
16 105776 NUT, hex; M14 x 1.5 2
17 177149 ROD, connecting 1
18 177175 HOUSING, valve, piston 1
20 172393 WASHER; stainless steel 1
21* 172489 CUP, piston; PTFE 1
22 172495 STUD, piston; stainless steel 1
23 218427 VALVE, intake; stainless steel 1
24 172391 SPACER, piston; PTFE 1
25 104585 BALL, piston; 22 mm dia. 1
26 172399 PIN, ball stop 1
27 177230 GUIDE, ball 1
28 104586 BALL, intake; 32 mm dia. 1
Torque to 65 N•m (47 ft-lb).
Torque to 33 N•m (24 ft-lb).
Lips of v-packings must face down.
Lips of packing must face up.
Knurl is at the bottom end.
1
2
3
4
5
