GroundingGrounding
Grounding
Proper grounding is an essential part of maintaining
a safe system.
To reduce the risk of static sparking, ground the
pump. Check your local electrical code for detailed
grounding instructions for your area and type of
equipment. Be sure to ground all of this equipment:
Pump:
Use a ground wire and clamp as shown in
Fig. 1.
Air compressors:
Follow manufacturer’s
recommendations.
Object being sprayed:
Follow your local code.
All solvent pails used when ushing or relieving
pressure:
Always hold a metal part of the gun rmly
to the side of a grounded metal pail, then trigger the
spray gun.
To maintain grounding continuity when ushing or
relieving pressure:
Always hold a metal part of the
spray gun rmly to the side of a grounded metal pail,
then trigger the spray gun.
ToTo
To
groundground
ground
thethe
the
pumppump
pump
1. UL–Listed Pumps: Use a ground wire, connector,
and clamp. See Fig. 1. Loosen screw (X). Insert
one exposed end of a 12 ga (1.5 mm
2
) minimum
ground wire (Y) through the eye of the ground
terminal connector (W) and tighten screw (X)
securely. Connect the other end of the wire to
a true earth ground. Order Part No. 237569
Ground Wire and Clamp.
2. Non UL–Listed Pumps: See Fig. 1. Remove the
ground screw (Z). Fasten the ground connector
(W) onto the pump with the ground screw (Z)
and tighten securely. Loosen screw (X). Insert
one exposed end of a 12 ga (1.5 mm
2
) minimum
ground wire (Y) through the eye of the ground
terminal connector (W) and tighten screw (X)
securely. Connect the other end of the wire to
a true earth ground. Order Part No. 222011
Ground Connector/Wire and Clamp.

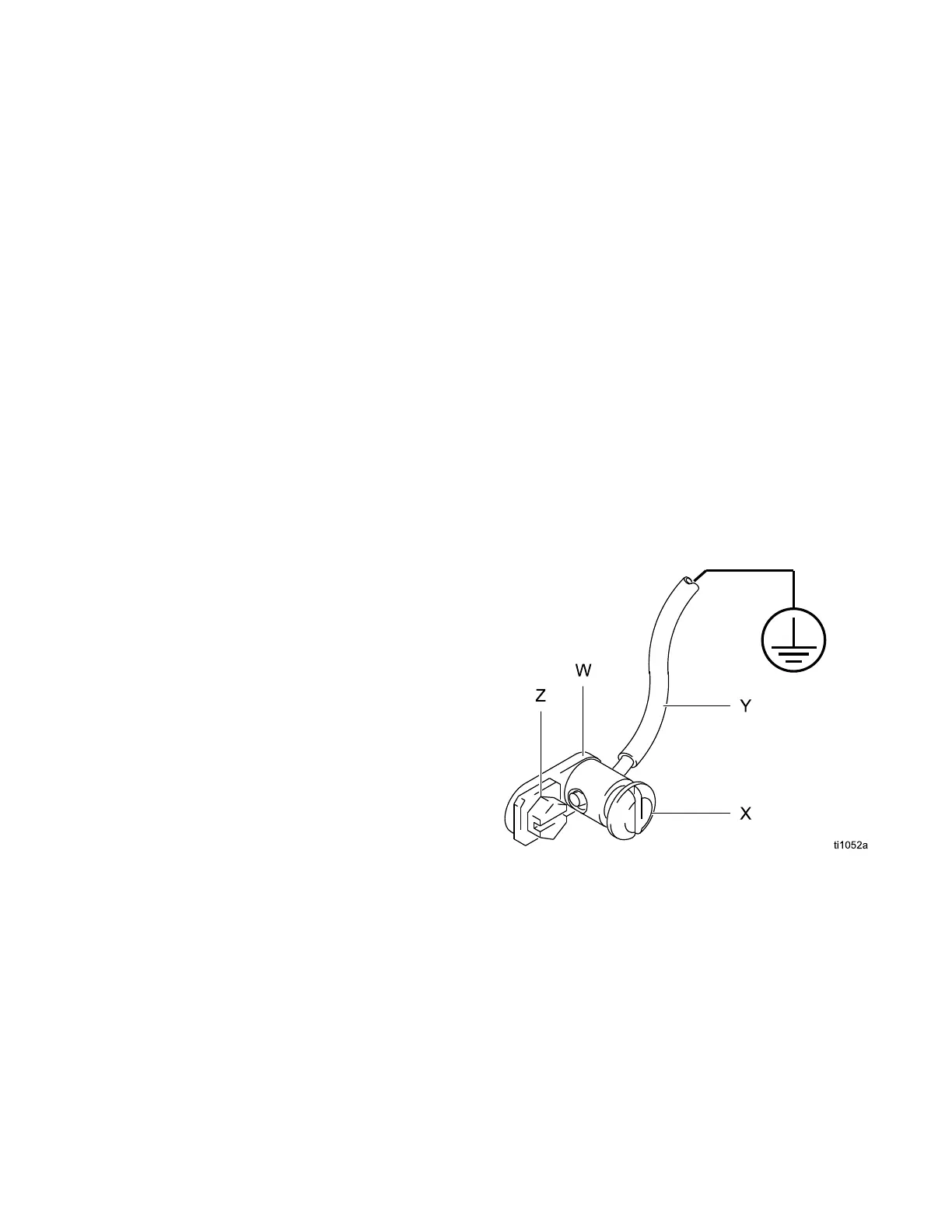

Figure 1
307456W 5
