Graco Fire-Ball D Series Instruction Manual

11307880

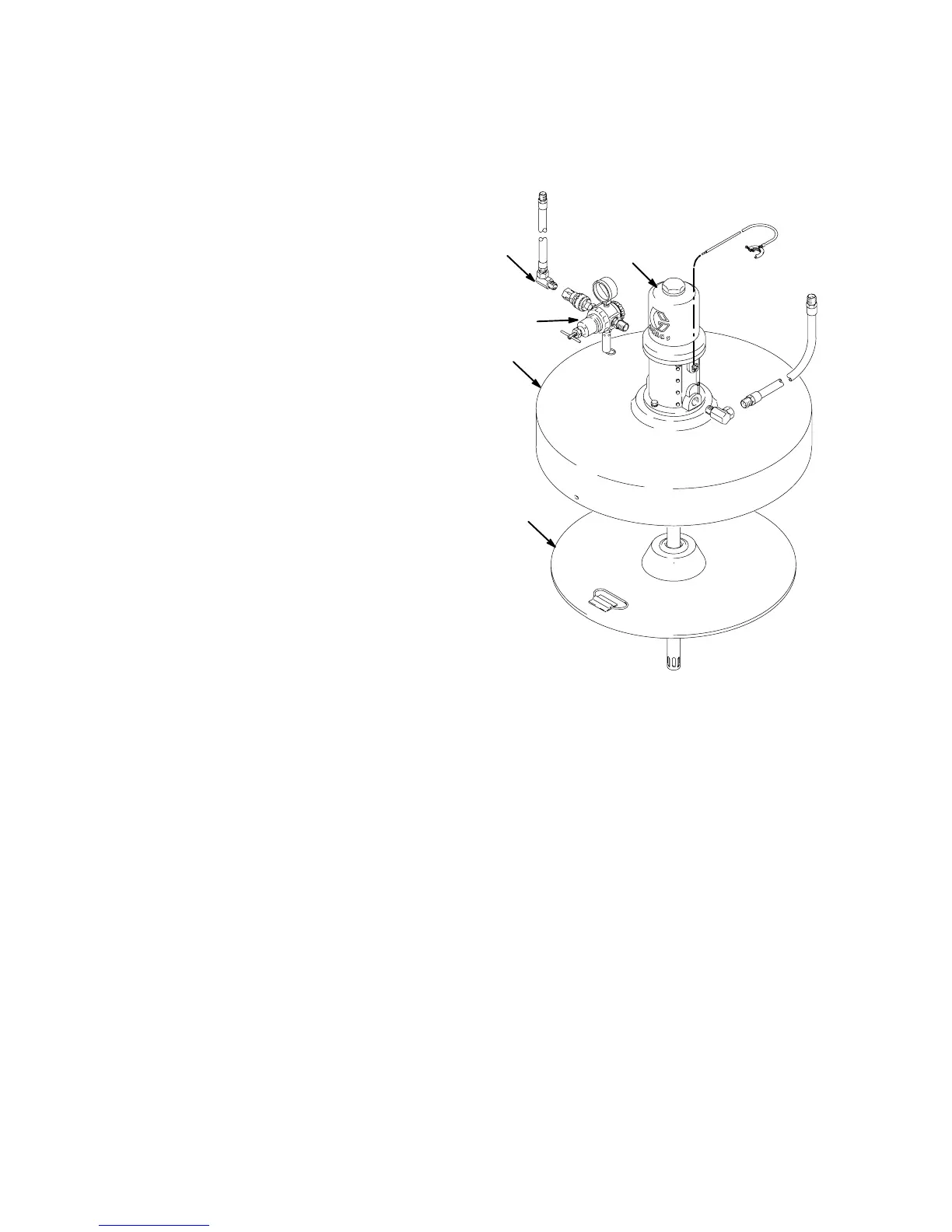

Parts Drawings and Lists
Fire-Ball 300
pump shown
50:1 Fire–Ball 425, 400-lb drum size
Model 225781, Includes items 1 to 4
Ref
No. Part No. Description Qty.
1 205395 PUMP, 50:1 Ratio Fire–Ball 425;
See 306674 for parts 1
2 222076 HOSE AND FITTING KIT;
See parts on page 14 1
3 200326 COVER; See 306345 for parts 1
4 223846 FOLLOW PLATE;
See 306345 for parts 1
50:1 Fire-Ball 300, 400-lb drum size
Model 225016, Includes items 1 to 4
Ref
No. Part No. Description Qty.
1 239888 PUMP, 50:1 Ratio Fire-Ball 300;
See 308883 for parts 1
2 222072 HOSE AND FITTING KIT;
See parts on page 14 1
3 200326 COVER; See 306345 for parts 1
4 223845 FOLLOW PLATE;
See 306345 for parts 1
1
2
3
4
7 or 8
75:1 Fire–Ball 425, 400-lb drum size
Model 244636, Includes items 1 to 4
Ref
No. Part No. Description Qty.
1 239730 PUMP, 75:1 Ratio Fire–Ball 425;
See 308777 for parts 1
2 222076 HOSE AND FITTING KIT;
See parts on page 14 1
3 200326 COVER; See 306345 for parts 1
4 223846 FOLLOW PLATE;
See 306345 for parts 1
8726B
