Graco Fire-Ball D Series Instruction Manual

10 307880
Parts Drawings and Lists
8729B
7 or 8
50:1 Fire-Ball 300, 120-lb drum size
Model 225014, Includes items 1 to 4
Ref
No. Part No. Description Qty.
1 239887 PUMP, 50:1 Ratio Fire-Ball 300;
See 308883 for parts 1
2 222072 HOSE AND FITTING KIT;
See parts on page 14 1
3 204574 COVER; See 306345 for parts 1
4 220654 FOLLOW PLATE;
See 306345 for parts 1
50:1 Fire–Ball 425, 120-lb drum size
Model 223108, Includes items 1 to 4
Ref
No. Part No. Description Qty.
1 205394 PUMP, 50:1 Ratio Fire–Ball 425;
See 306674 for parts 1
2 222076 HOSE AND FITTING KIT;
See parts on page 14 1
3 204574 COVER; See 306345 for parts 1
4 223344 FOLLOW PLATE;
See 306345 for parts 1
1
2
4
3

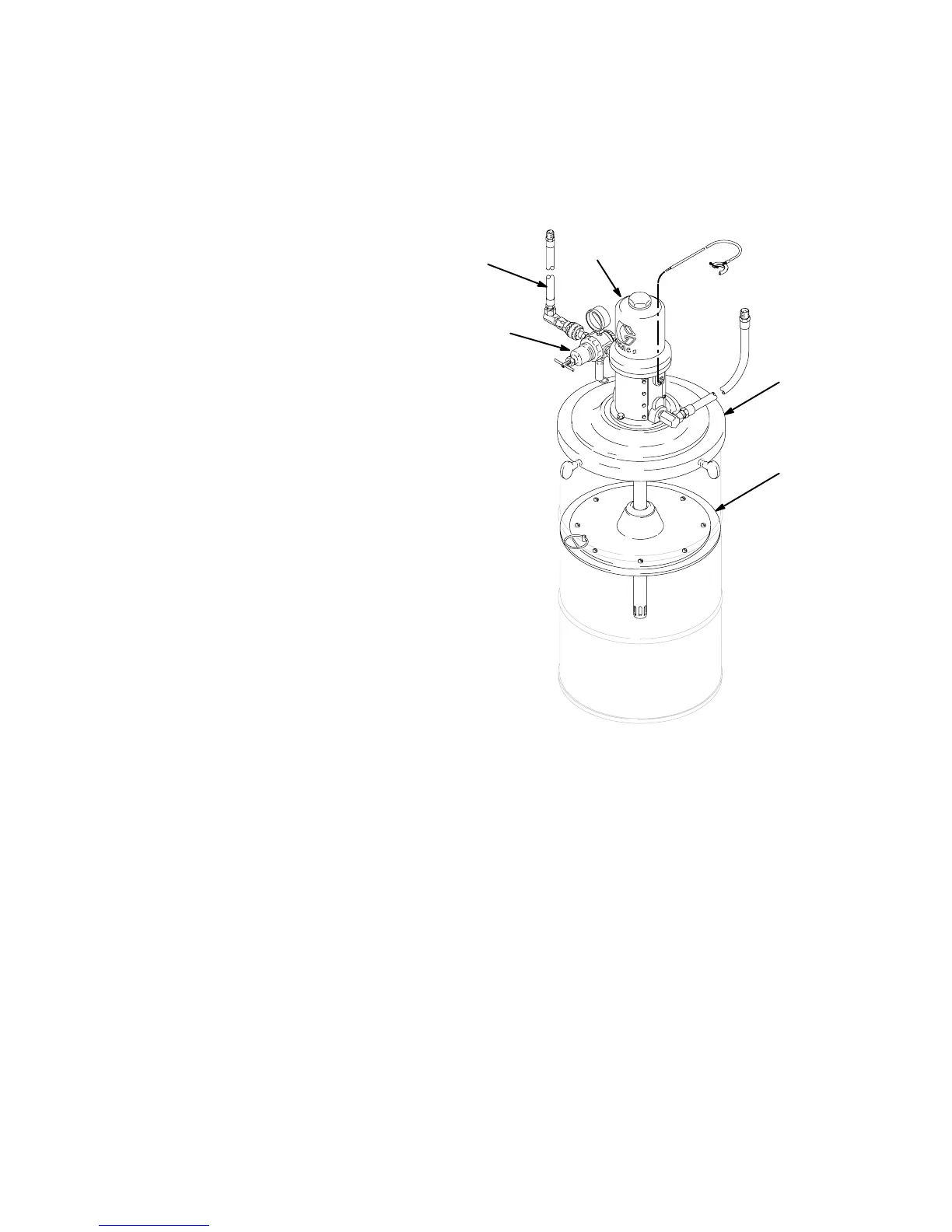

Fire-Ball 300
pump shown
75:1 Fire–Ball 425, 120-lb drum size
Model 244635, Includes items 1 to 4
Ref
No. Part No. Description Qty.
1 239729 PUMP, 75:1 Ratio Fire–Ball 425;
See 308777 for parts 1
2 222076 HOSE AND FITTING KIT;
See parts on page 14 1
3 204574 COVER; See 306345 for parts 1
4 223344 FOLLOW PLATE;
See 306345 for parts 1
