Graco Fire-Ball D Series Instructions-Parts List

Parts
16 308655K

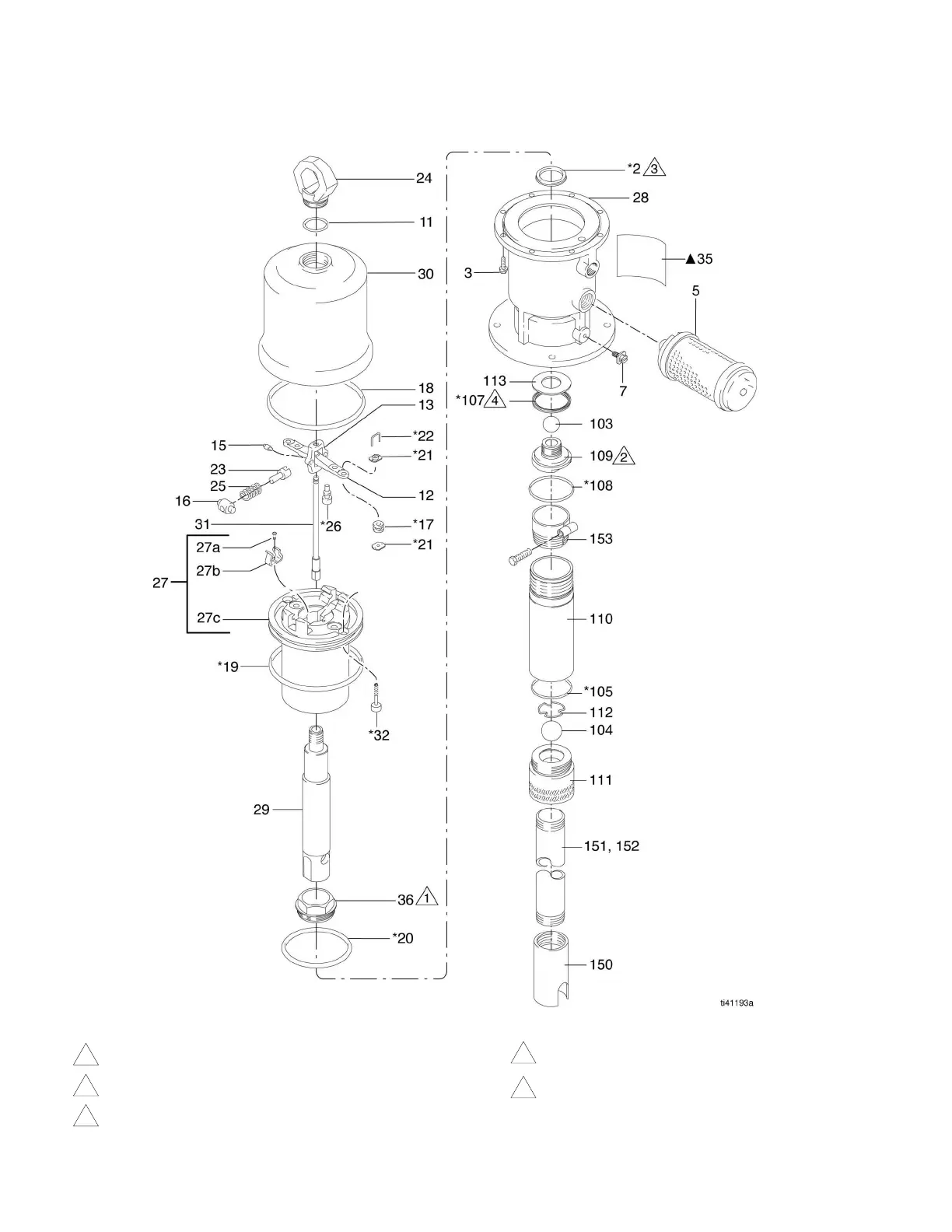

Parts
Torque to 30 to 40 ft.-lbs (40.7 to 54.2 N•m)
1
2
Torque to 45 to 55 ft.-lbs (61 to 74.6 N•m)
Lips face down
Lips face up
When assembling the fluid cylinder (110) over
the assembled fluid piston (107, 109, 113), use
the piston assembly tool included in Repair Kit
238751, and steps 21 through 27, page 14 to
page 15.
3
4
5
