Installation–Stationary Mounting
WARNING
A bleed-type master air valve is required in the
system to help reduce the risk of serious bodily
injury, including fluid injection, splashing in the
eyes, and injury from moving parts when
adjusting or repairing the pump. This valve
relieves air trapped between the valve and the
pump to prevent the pump from cycling unex-
pectedly.
D Install an air line lubricator (E) for automatic air
motor lubrication.
To order a 250 psi (17.5 bar) maximum working
pressure air line lubricator, order a Part No. below:
3/8 in. npt 214847
1/2 in. npt 214848
D Install an air regulator (G) to control pump speed
and pressure.
To order a 300 psi (21 bar) maximum working
pressure regulator, order a Part No. below:
3/8 in. npt 109107
1/2 in. npt 104266
D Install an air line filter (H) to remove harmful dirt
and contaminants from your compressed air supply.
To order a 250 psi (17.5 bar) maximum working
pressure air filter, order a Part No. below:
3/8 in. npt 106148
1/2 in. npt 214849
D Install a thermal relief kit on the dispensing valve
side of the pump to assist in relieving pressure in
the pump, hose, and dispensing valve due to heat
expansion.
To order a thermal relief kit for the Fire-Ball
pump—900 psi (62 bar) maximum working
pressure—order Part No. 237893.
To order a thermal relief kit for the President
pump—1600 psi (110 bar) maximum working
pressure—order Part No. 237904.
Hose Kits

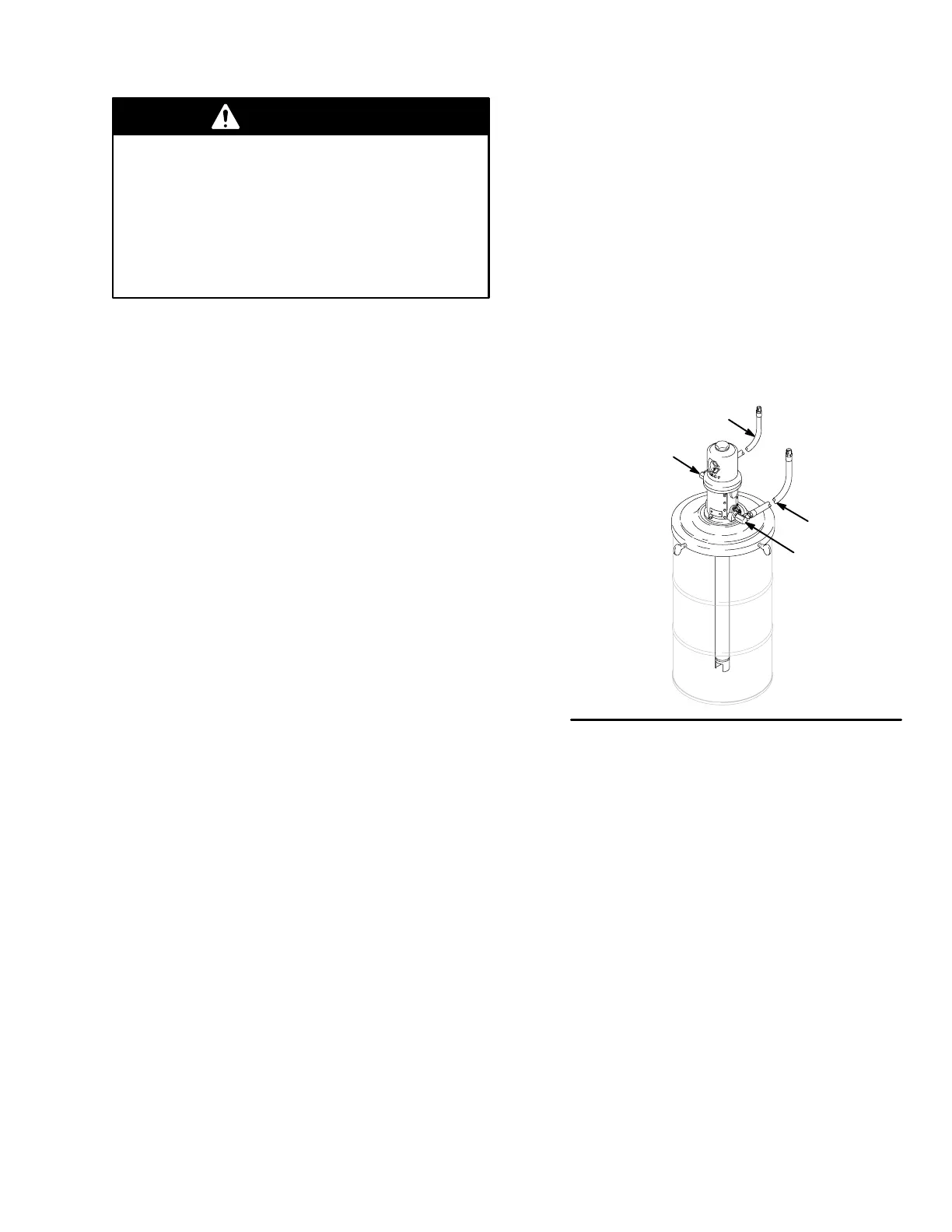

Assemble hose kits as shown in Fig. 3.
Fig. 3
101
102
103
104
AIR
FLUID
To Next Page
