3078838
Installation–Mobile Mounting

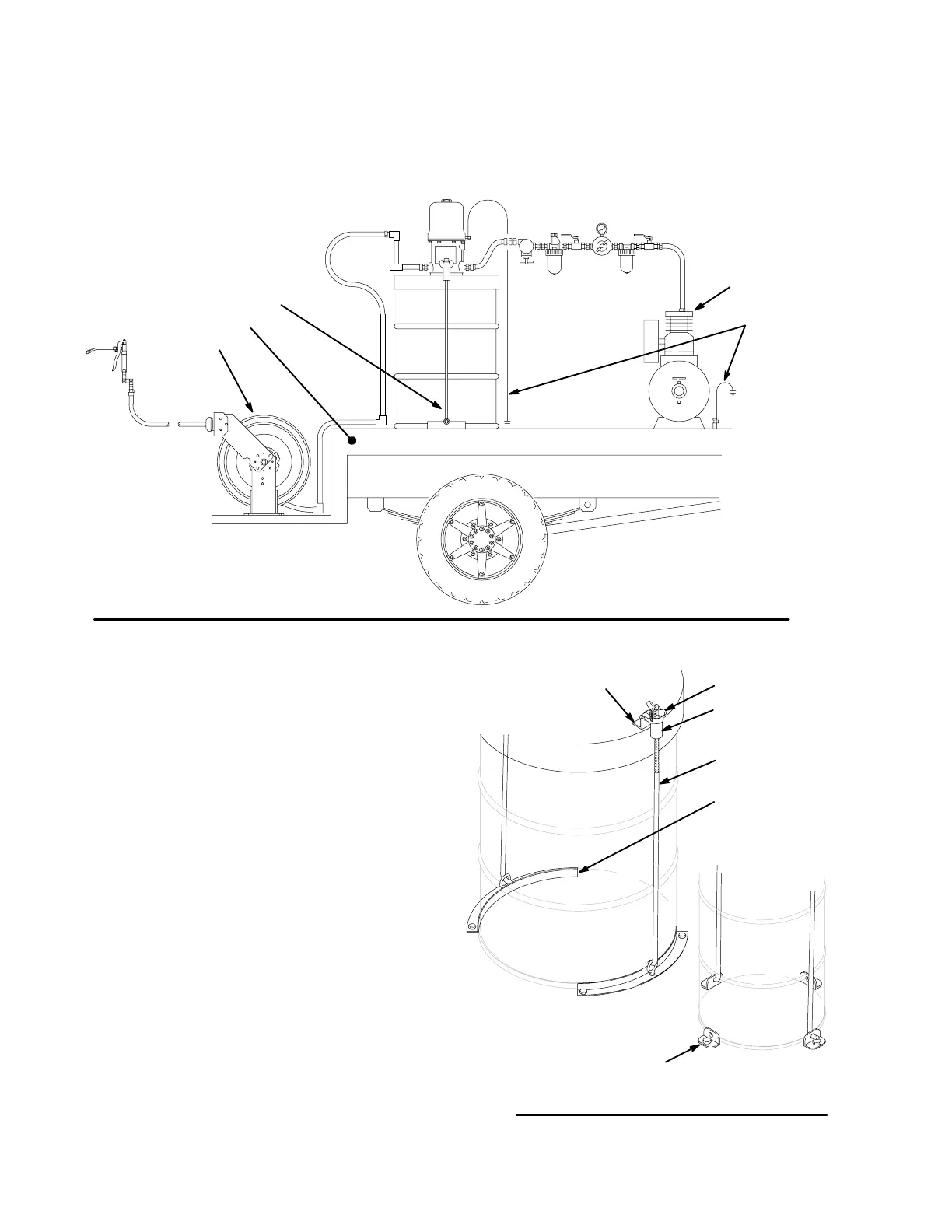

The typical installation shown in Fig. 4 is only an installation guide; it is not an actual system design. Contact your
Graco distributor for assistance in designing a system to suit your needs.
Fig. 4
K Hose reel
L Truck bed
M Hold-down rods
N Compressor
P Ground wires
For Mobile Mountings
01612
See Air and Fluid
Line Accessories
on page 6
K
L
M
N
P
Mobile Mounting Layout
Plan the layout for easy operator access to the pump
air controls, sufficient room to change drums, and a
secure mounting platform.
Drum Mounting
1. Place the drum in the desired location.
2. Place the hold-down lugs (V) or drum locators (U)
around the drum base and bolt directly to the truck
bed or mounting platform. See Fig. 5.
Open-Drum, Cover-Mounted Pumps
1. Remove the original drum cover.
2. Mount the new drum cover and fasten.
3. Guide the pump riser tube through the mounting
gasket.
4. Align the drum cover eyelets (Q) with the
hold-down rods (T), install the cover brackets (S)
and wing nuts (R) and tighten securely. See Fig. 5.
Fig. 5
01613
Q
R
S
T
U
V
Q Drum cover eyelets
R Wing nuts
S Hold-down brackets
T Hold-down rods
U Drum locators
V Hold-down rod lugs
To Next Page
