Installation–Mobile Mounting
Closed Bung-Type-Drum, Cover-Mounted
Pump
1. Insert the pump riser tube through the gasket (W)
and drum cover (X). Fasten the Fire-Ball pump
from the top side and the President pump from the
bottom side. See Fig. 6.
2. Slide the rubber grommet (Y), tapered end down,
onto the riser tube and push it up against the pump
base. See Fig. 6.
3. Guide the pump riser tube through the drum bung
hole (Z) and place the cover on the drum. See
Fig. 6.
4. Align the drum cover eyelets (Q) with the
hold-down rods (T), install the cover brackets (S)
and wing nuts (R) and tighten securely. See Fig. 5.
Closed Bung-Type-Drum,
Sturdi-Clamp-Mounted Pumps
1. Remove the adjustable bung adapter from the
pump riser tube.
2. Screw the bung adapter (EE) into the bung hole.
3. Loosen the wing nuts (BB) and slide the clamp
(AA) onto the pump riser tube, up to the base. See
Fig. 7.
4. Holding the clamp onto the pump, insert the pump
riser tube through the bung adapter, and lower the
pump until the clamp rests on the edge of the
drum. See Fig. 7.
5. Install the sturdi-clamp so its upper jaw fits against
the pump base projection, its u-bolt (DD) fits
around the riser tube, and its lower jaw fits against
the bung adapter. Tighten the wing nuts (BB). See
Fig. 7.
6. Tighten the T-handle (CC) firmly to the side of the
drum.

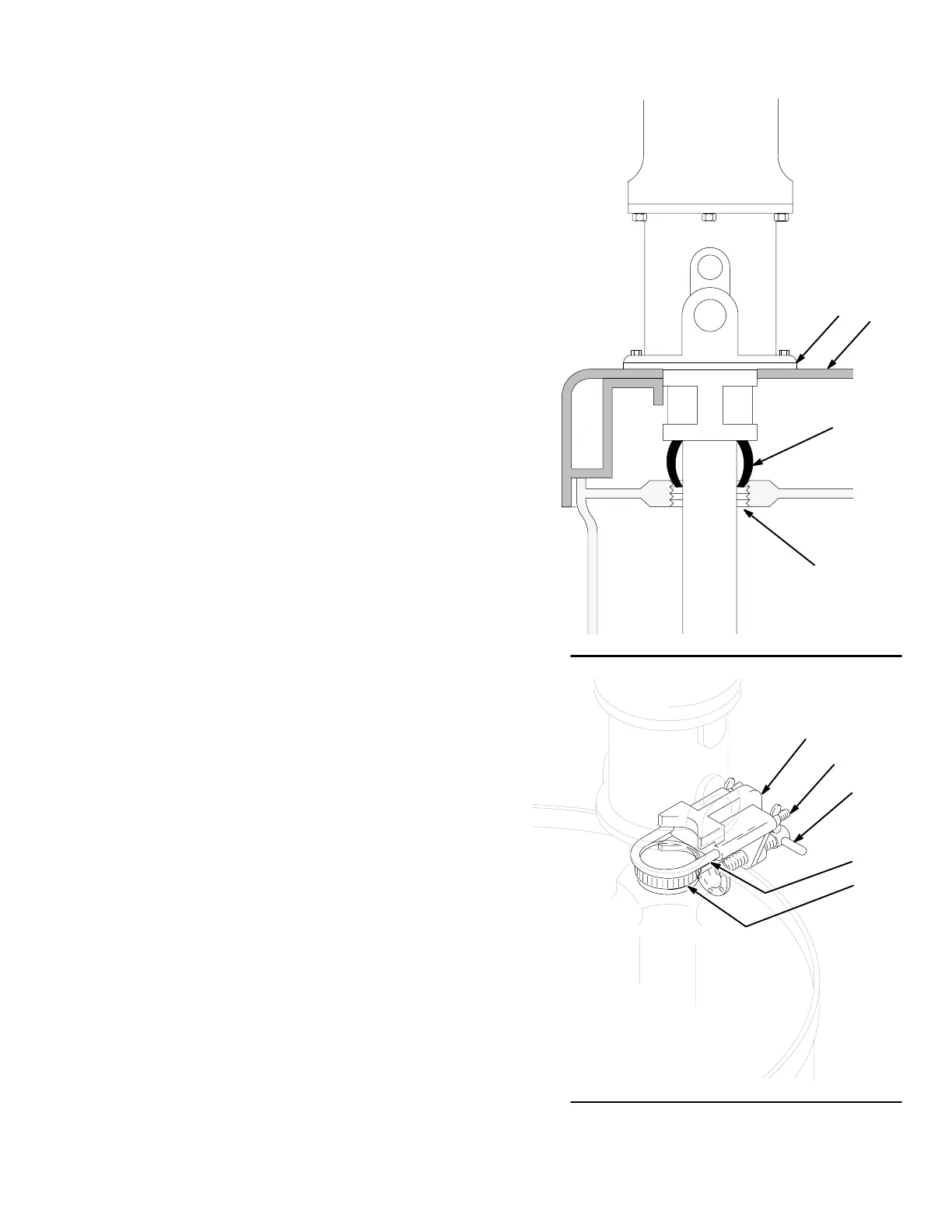

Fig. 6
01614
W
X
Y
W Gasket
X Drum cover
Y Grommet
Z Bung hole
Z
Fig. 7
01615
AA
BB
CC
DD
EE
AA Clamp
BB Wing nuts
CC T-handle
DD U-bolt
EE Bung adapter

Graco FIRE-BALL Series Specifications

General

Series	FIRE-BALL
Maximum Pressure	1000 psi
Inlet Size	1/2" NPT
Outlet Size	1/2" NPT
Material	Aluminum, Stainless Steel
Wetted Parts	Stainless Steel, PTFE
