Installation
Models 222069, 240885, and 245694 (Fig. 4)
1. Remove the cover from the pail, and scoop the
lubricant from the center to the sides of the pail to
make its surface concave.
2. Center the follow plate (5) in the pail opening.
Press the plate firmly downward and rotate it over
the lubricant surface to eliminate air pockets and
prevent channeling.
3. Place the cover (3a) on the pail, and tighten the
thumbscrews (3f).
4. Assemble the gun (2b) and hose (2a), and connect
the hose to the pump fluid outlet.
5. Connect the nipple (2d) to the pump air inlet or air
regulator (7b) inlet, whichever is applicable.
Connect the quick-disconnect coupler (2c) to the
air supply hose.

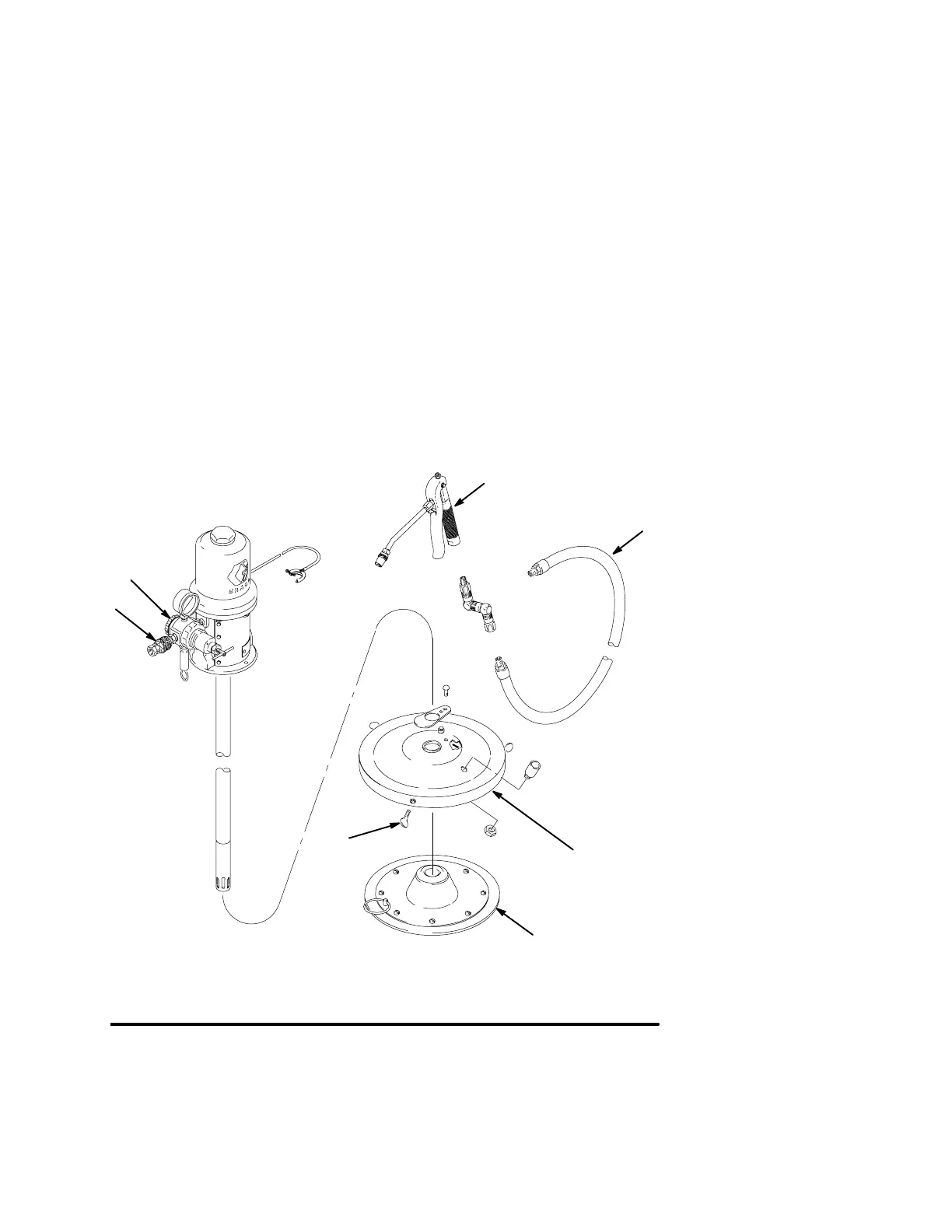

Fig. 4
2a
2c, 2d
3f
3a
7b
Model 240885 shown
01517A
2b
5
