14 308-879
Hold-Down Kits 222–061 and 240–671
Ref
No. Part No. Description Qty.
1 159–016 BRACKET , hold down 2
2 153–166 LUG, hold-down 4
3 153–102 ROD, drum mounting 2
4 200–889 ASSY
, wing nut 2
Hold-Down Kit 222–061,
For Fire-Ball Model with 120-pound Barrel
Hold-Down Kit 240–671,
For Fire-Ball Model with 70-pound Barrel
Ref
No. Part No. Description Qty.
1 159–016 BRACKET , hold down 2
2 153–166 LUG, hold-down 4
3 193–458 ROD, drum mounting 2
4 200–889 ASSY
, wing nut 2

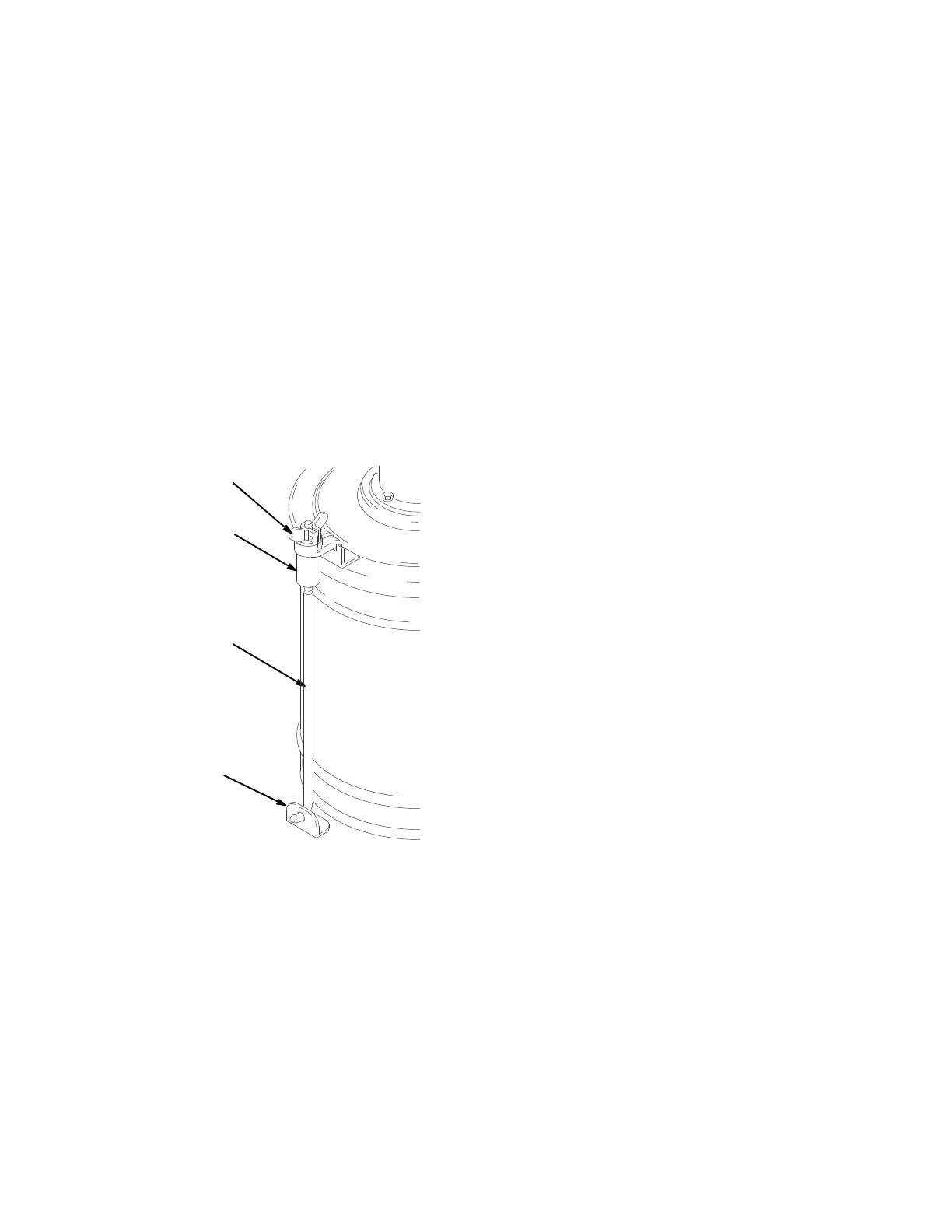

8431A
1
2
4
3
Hold-Down Kit 240–671 Shown
