Installation

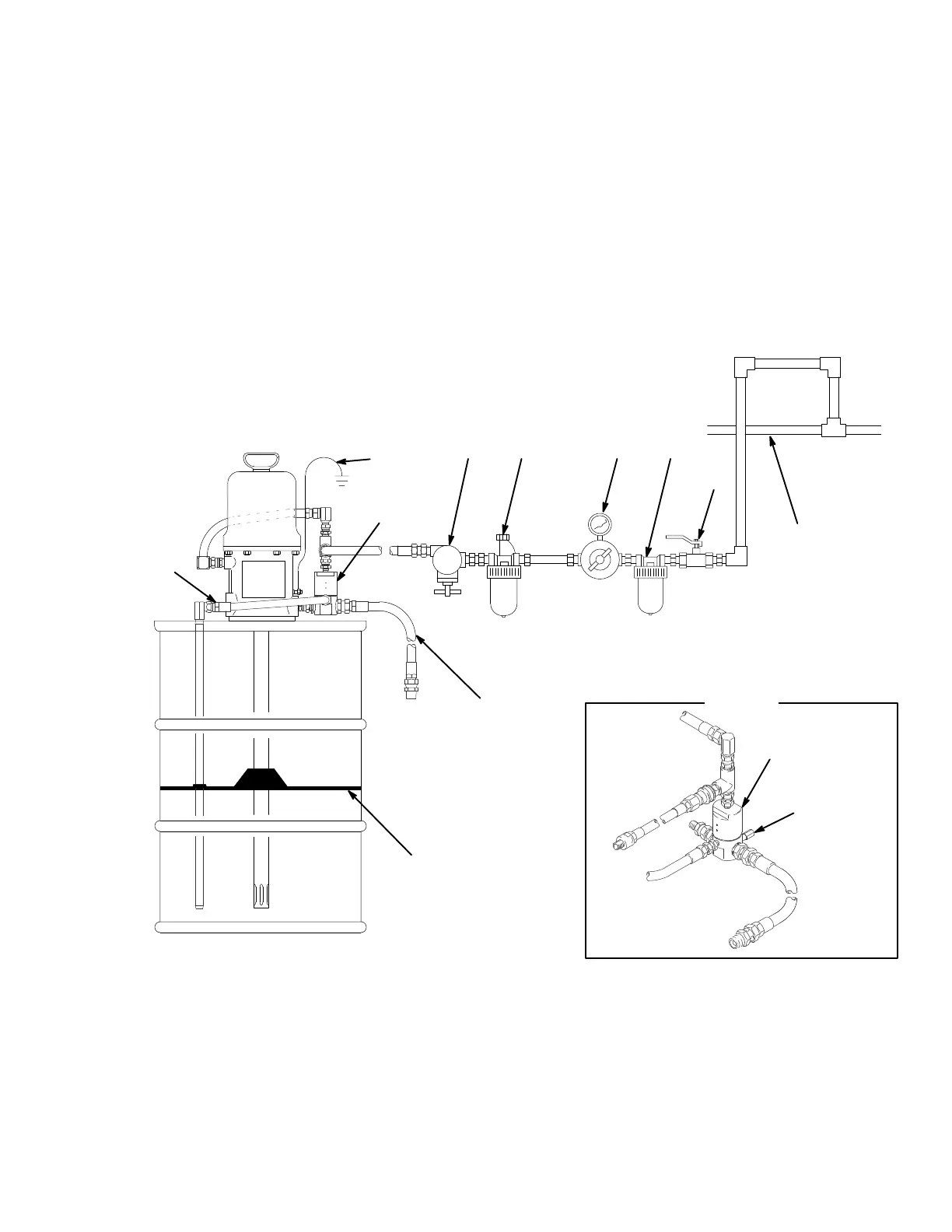

Typical Installation
The typical installation shown below is only a guide for selecting and installing system components and
accessories. Contact your Graco distributor for assistance in designing a system to suit your particular needs.
vent
valve (J)
Key
A Fluid dispense line
B Pump ground wire (required; included)
C Air regulator
D Main air supply line
E Air filter
F Air line lubricator
G Pump runaway valve
H Follow plate (optional)
J V ent valve
K V ent return line
L Safety relief valve (required; included with V ent V alve Kit)
(See Detail A)
M Bleed-type master air valve (required; included with V ent V alve Kit)
A
D
H
B
C EFG
J
K
DET AIL A
safety
relief
valve (L)
M
8429B
