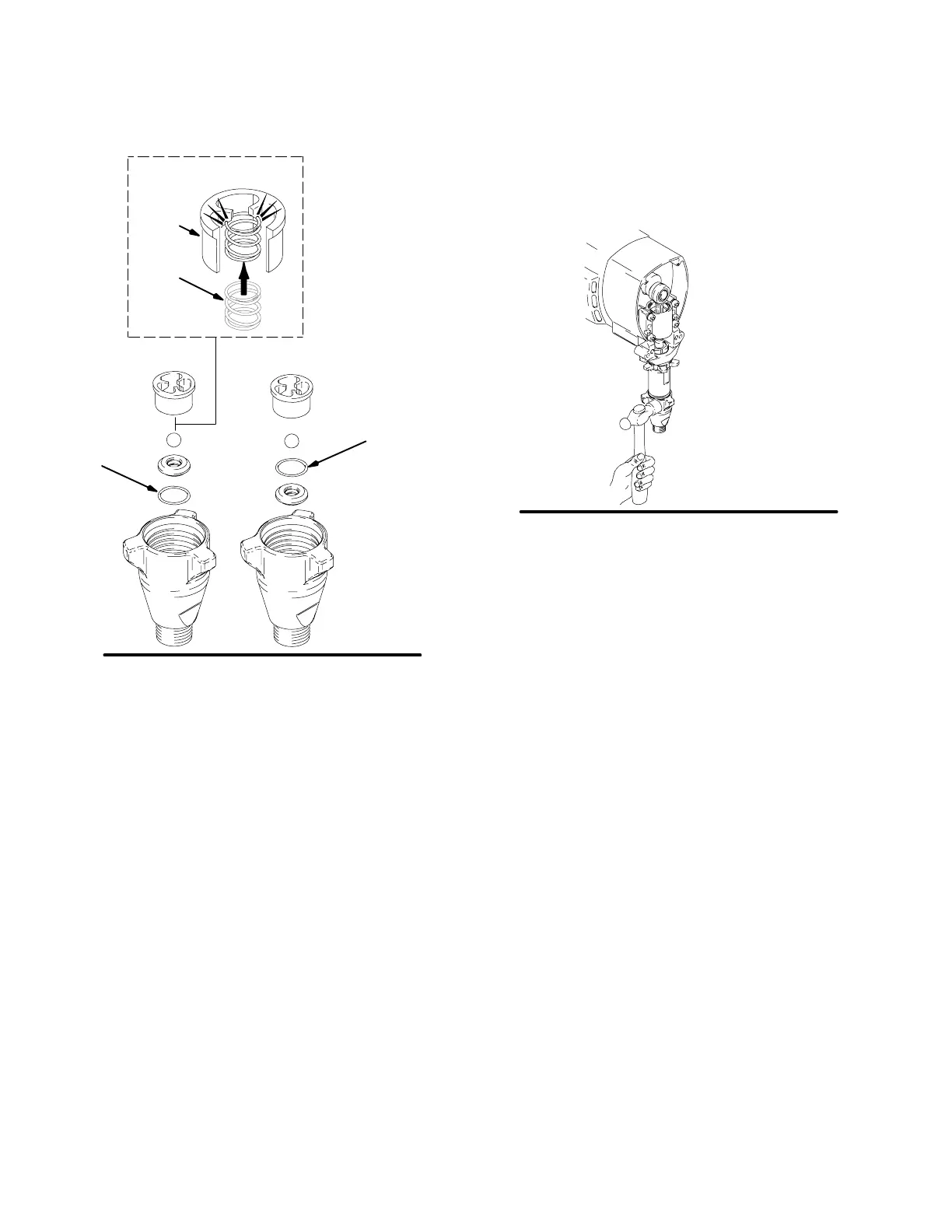

Fig. 22. Reassemble intake valve with new o-ring
(227), seat (212) and ball (214). Seat may be flipped
over and used on other side. Clean seat thoroughly.
Fig. 22
227
227
(o-ring on top
244957 only)
(o-ring on
bottom
all except
244957)
7570d
236
215
245889, 287946 only
Fig. 23. Install intake valve on cylinder. Torque:
67 +/–5 ft-lb (model 244197)
80 +/–5 ft-lb (model 244224, 244201, 244409,
245902, 245904)
200+/–10 ft-lb (model 244954, 246257, 245889,
287946, 244957, 248971, 248736, 277068, 287814,
287815)
Fig. 23
7678A
