Graco MARK V

17309277
Parts – Pumps 244224, 244201, 244409,
245902, 245904
Models 244224, Series A; 244201, Series A; 244409, Series A; 245902, Series A; 245904, Series A
Ref
No. Part No. Description Qty.
201 183171 PLUG 1
202 193032 NUT, packing 1
203* 193124 V-PACKING 4
V-Max UHMWPE, blue
204* 183176 GLAND, packing, male, throat 1
205 CYLINDER, pump
196754 Pump 244201, 244409, 245904 1
243347 Pump 244224 1
206* 101947 BALL, sst, 0.375 in. 1
Pump 244224, 244201
116327 BALL, ceramic, 0.375 in. 1
Pump 244409, 245904
207* 106556 PACKING, o-ring 1
208* 193125 V-PACKING, piston 4
V-Max UHMWPE, blue
210 240150 VALVE, piston 1
212† 244199 SEAT, carbide (196866) 1
Pump 244224, 244201
includes 214 and 227
244571 SEAT, carbide (197470) 1
Pump 244409, 245904
includes 214 and 227
213 HOUSING, intake (foot)
196753 Pump 244201, 244409, 245904 1
195894 Pump 244224 1
214*† 102972 BALL, sst, 0.875 in. 1
Pump 244224, 244201
111453 BALL, ceramic, 0.75 in. 1
Pump 244409, 245904
215 GUIDE, ball
196967 Pump 244224 1
193027 Pump 244201, 244409, 245904 1
216* 196757 GUIDE, piston 1
217* 183185 GLAND, female, piston 1
218* 183174 V-PACKING, leather, piston 3
219* 183178 GLAND, packing, male 1
220 240525 SLEEVE, cylinder 1
221* 107098 P ACKING, o–ring 2
222 ROD, piston
240517 Pump 245902 1
241285 Pump 245904 1
244217 Pump 244224 1
244218 Pump 244201, 244409 1
223* 183175 V -PACKING, leather, throat 3
224* 183177 GLAND, packing, female 1
225 162485 NIPPLE, adapter, 3/8 npt x 3/8 npsm 1
227*† 108526 PACKING, o-ring 1
228 193127 SPACER, nut 1
* These parts are also included in Repair Kit 244198 (pump
244224, 244201, 245902) or Repair Kit 244200 (pump
244409, 245904), which may be purchased separately.
† These parts are also included in Carbide Seat Kit 244199
(pump 244224, 244201, 245902) or Carbide Seat Kit
244571 (pump 244409, 245904), which may be
purchased separately.

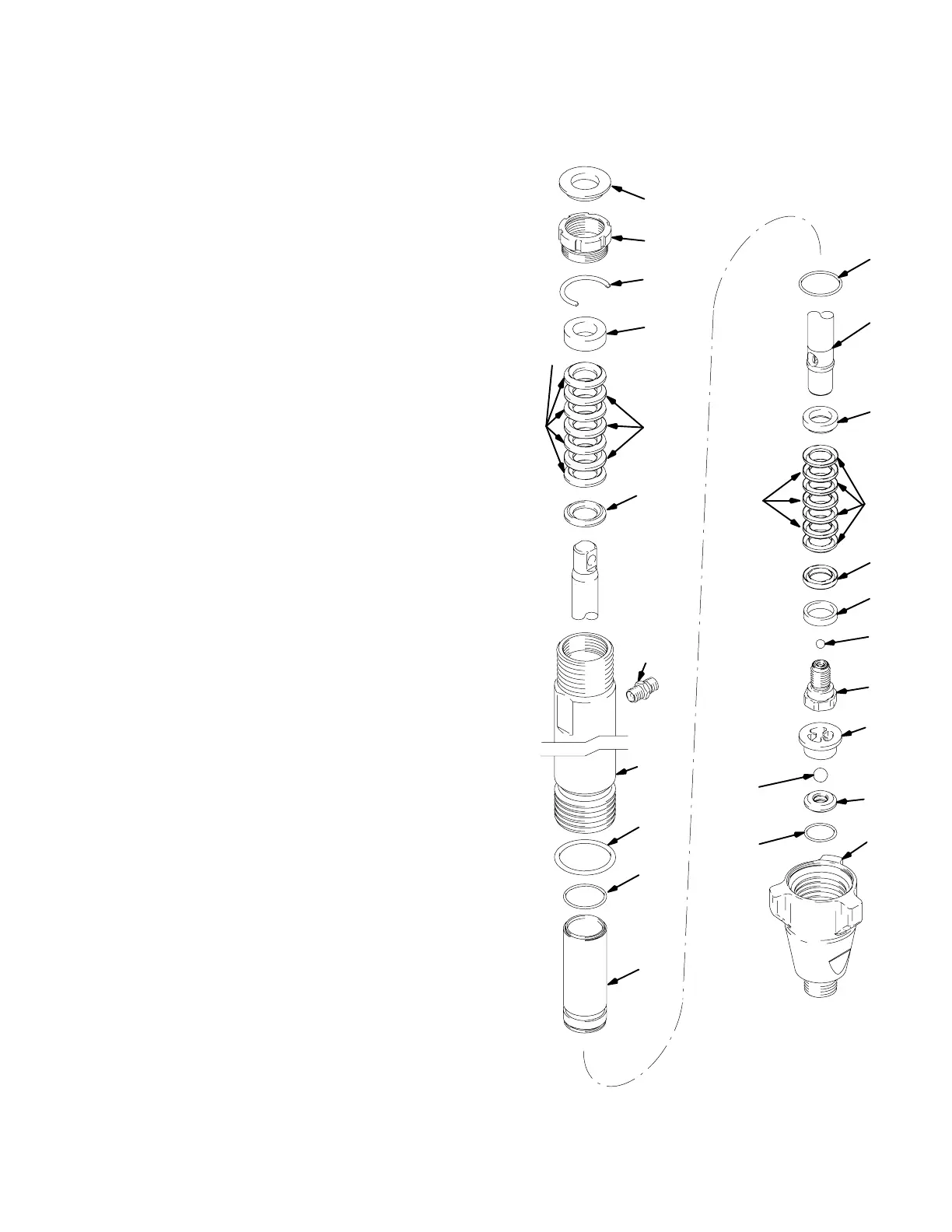

*203
216*
201
202
224*
223*
204*
205
221*
220
222‡
206*
219*
208*
217*
210
215
212†
213
†*214
*218
221*
207*
†*227
228
TI0717d
225
