16 309277

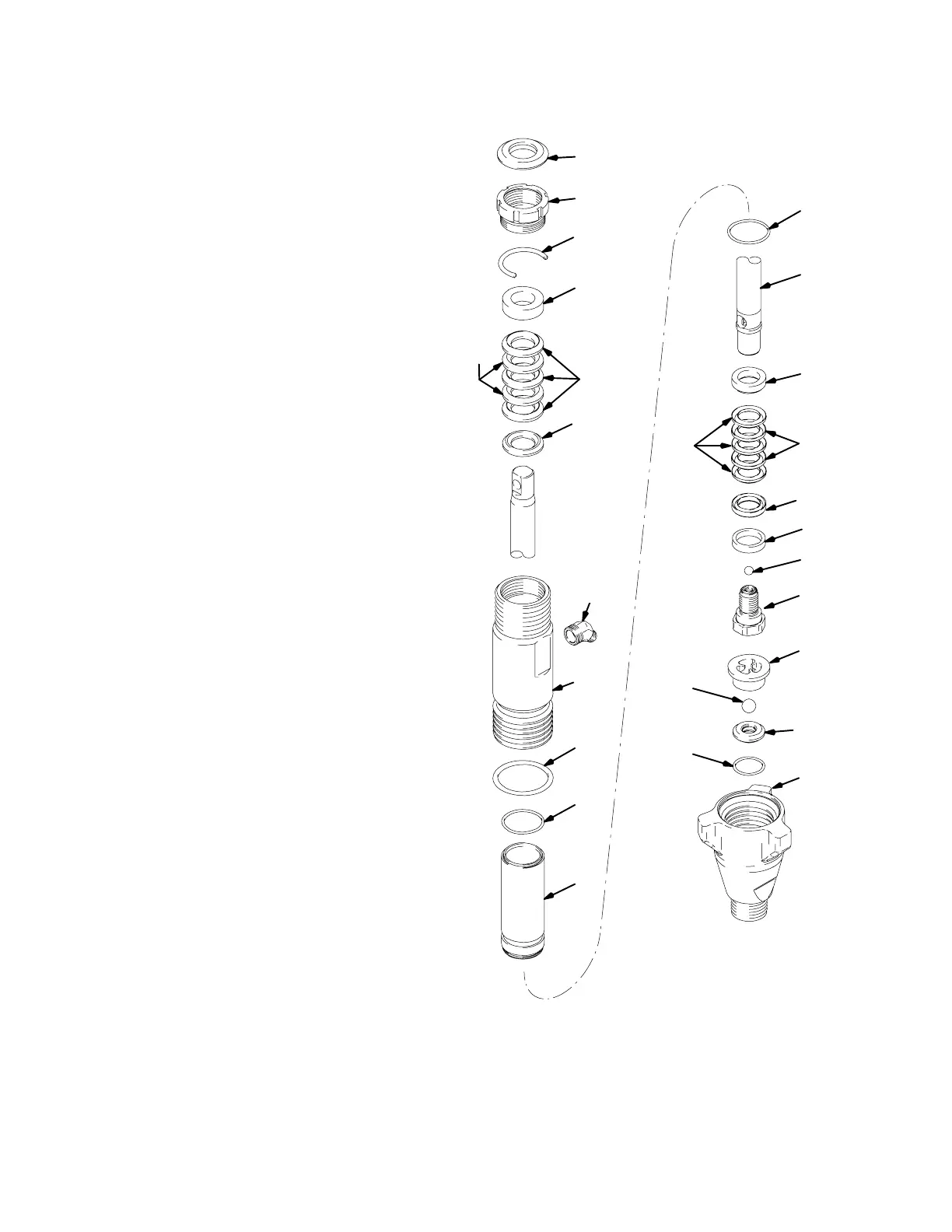

Parts – Pump 244197
Model 244197, Series A
Ref
No. Part No. Description Qty.
201 179810 SEAL, throat 1
202 193046 NUT, packing 1
203* 192692 V-PACKING, throat, 3
V-Max UHMWPE, blue
204* 178942 GLAND, male, throat 1
205 243346 CYLINDER, pump
206* 105444 BALL, sst, 0.3125 in. 1
207* 114054 PACKING, o-ring 1
208* 192693 V-PACKING, piston 3
V-Max UHMWPE, blue
210 239932 VALVE, piston 1
212† 239922 KIT, seat, carbide 1
includes 214 and 227
213 195892 VALVE, intake (foot)
214*† 105445 BALL, sst, 0.5000 in. 1
215 192624 GUIDE, ball 1
216* 196758 Guide, piston 1
217* 178969 GLAND, female, piston 1
218* 178939 V-PACKING, leather, piston 2
219* 196880 GLAND, male 1
220 240521 SLEEVE, cylinder 1
221* 108526 O-RING, PTFE 2
222** 244216 ROD, piston 1
223* 178940 V–P ACKING, leather, throat 2
224* 178943 GLAND, female 1
225 196176 ADAPTER, nipple, 1
227*† 107079 PACKING, o-ring 1
228 192714 SPACER, throat, nut 1
* These parts are also included in Repair Kit 244196,
which may be purchased separately.
† These parts are also included in Carbide Seat Kit
239922, which may be purchased separately.
*223
216*
201
202
224*
203*
204*
205
221*
220
222*
206
219*
218*
217*
210
215
212†
213
†*214
*208
221*
207*
†*227
228
TI0716c
225
