Graco MARK V

Diagrams and Parts
68 3A6342A

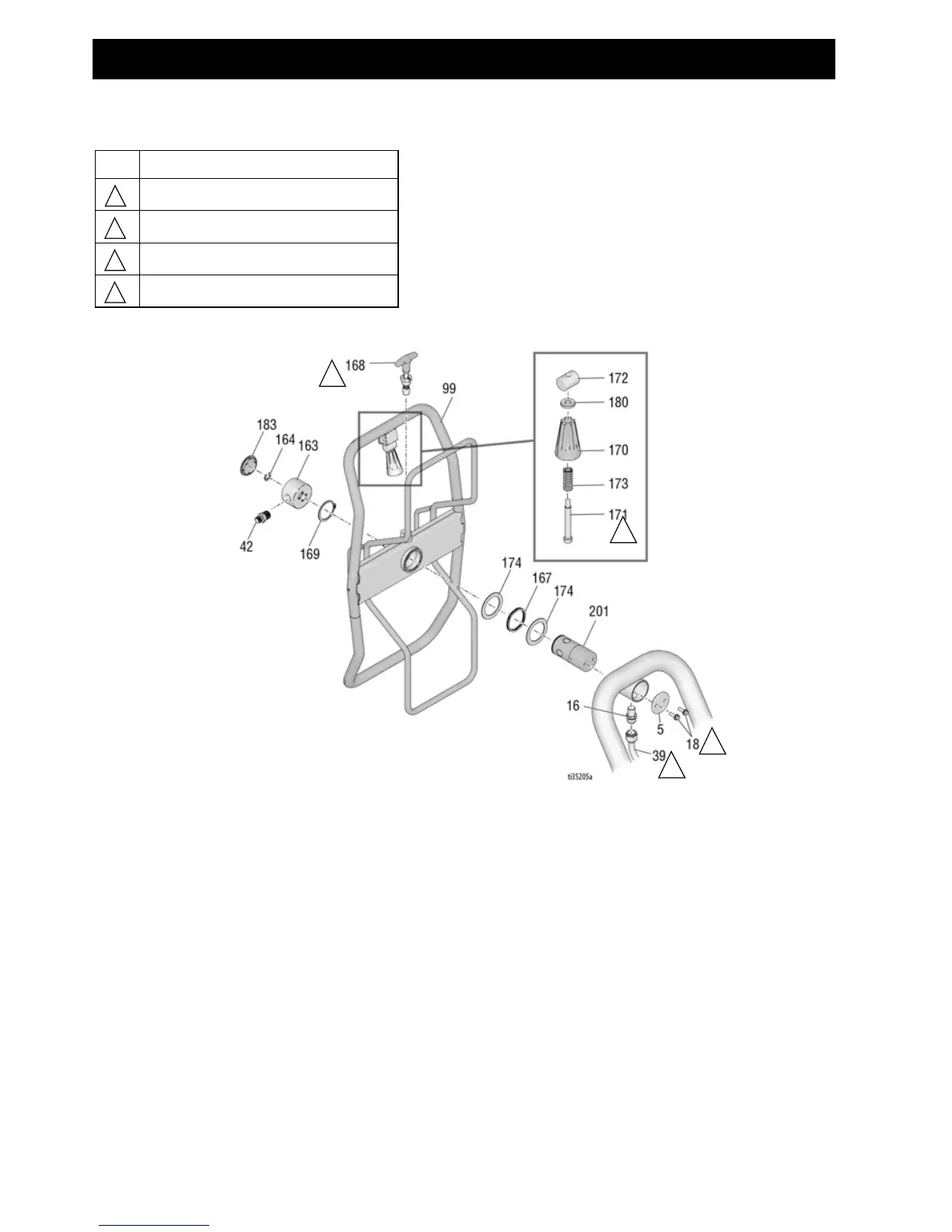

QuikReel
QuikReel Parts List
Ref. Torque
130-150 in-lb (14.6 - 16.9 N•m)
25-35 ft-lb (33.8 - 47.4 N•m)
120-130 in-lb (13.5 - 14.6 N•m)
38-42 ft-lb (51.5 - 56.9 N•m)
1
2
3
4
1
2
3
4
Ref. Part Description Qty.
5 16C975 PLATE, Pivot Mount 1
16 121311 FITTING, Connector, NPT x
JIC
1
18 260212 SCREW, Hex Washer HD 2
39 TUBE, Formed, Ultra,
Platinum
1
24V095 695/795 Models
24J081 1095/Mark V Models
16M441 Mark X
42 ADAPTER 1
164672 695/795/1095/1595
196178 Mark IV/Mark V
159239 Mark VII/Mark X
99 24B691 REEL, Hose, ultra 1
163 24B248 CAP, swivel, complete 1
164 122347 RING, retaining, external 1
167 122534 SPRING, wave 1
168 24E400 PIN, pop, lock out 1
169 122524 RING, retaining, external 1
170 278085 HANDLE, swivel 1
171 122518 PIN 1
172 15X618 NUT, pin 1
173 122542 SPRING 1
174 122607 WASHER, flat 2
180 122669 WASHER 1
183 122787 CAP 1
201 24E016 TUBE, Hose Reel, Pivot 1
Ref. Part Description Qty.
