Graco MARK V

Diagrams and Parts
3A6342A 69
Spray Gun and Hose

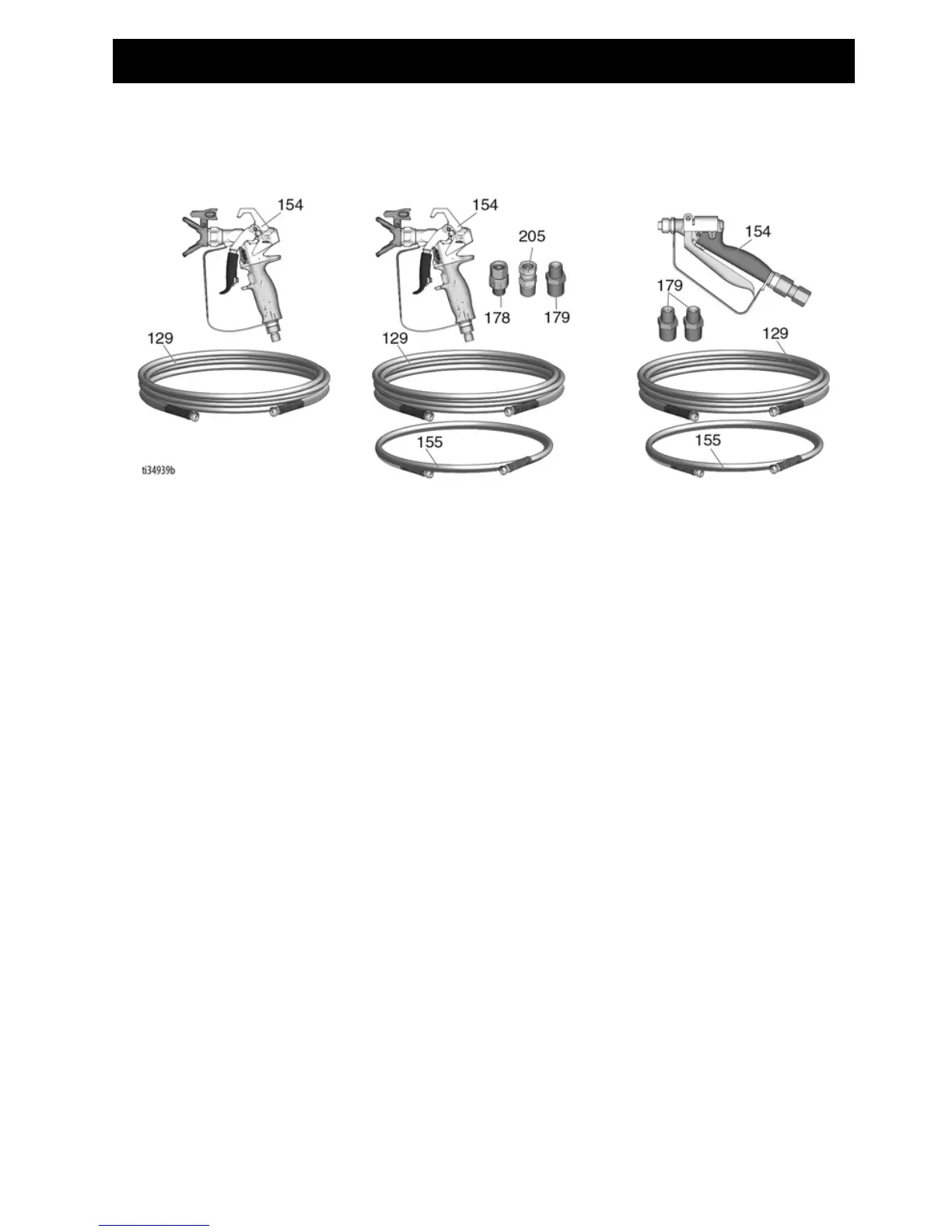

Spray Gun and Hose Parts
List
4
695-1595 Models
Mark IV-Mark VII Models
Mark X Models
Ref. Part Description Qty.
129 HOSE, coupled
240794 Ultra, 1/4” x 50’ 1
826079 Ultimate, 1/4” x 50’ 1
245225 Mark IV/Mark V, 3/8” x 50’ 1
278499 Mark VII/Mark X, 1/2” x 50’ 1
154 SPRAY GUN
17Y042 Ultra, North America 1
17Y044 Ultra, Asia
17Y043 Ultra, Europe
826252 695/795/1095/1595 Ultimate 1
241705 Mark V/Mark VII 1
246468 Mark IV 1
245820 Mark X 1
155 HOSE, whip
241735 Mark IV/Mark V, 1/4” x 3’ 1
191239 Mark VII/Mark V, 3/8” x 11’ 1
178 189018 SWIVEL 1
179 BUSHING
110476 Mark IV/Mark V 1
159239 Mark VII 1
159239 Mark X 2
205 110476 ADAPTER (Mark VII only) 1
