Graco MARK V

Diagrams and Parts
70 3A6342A

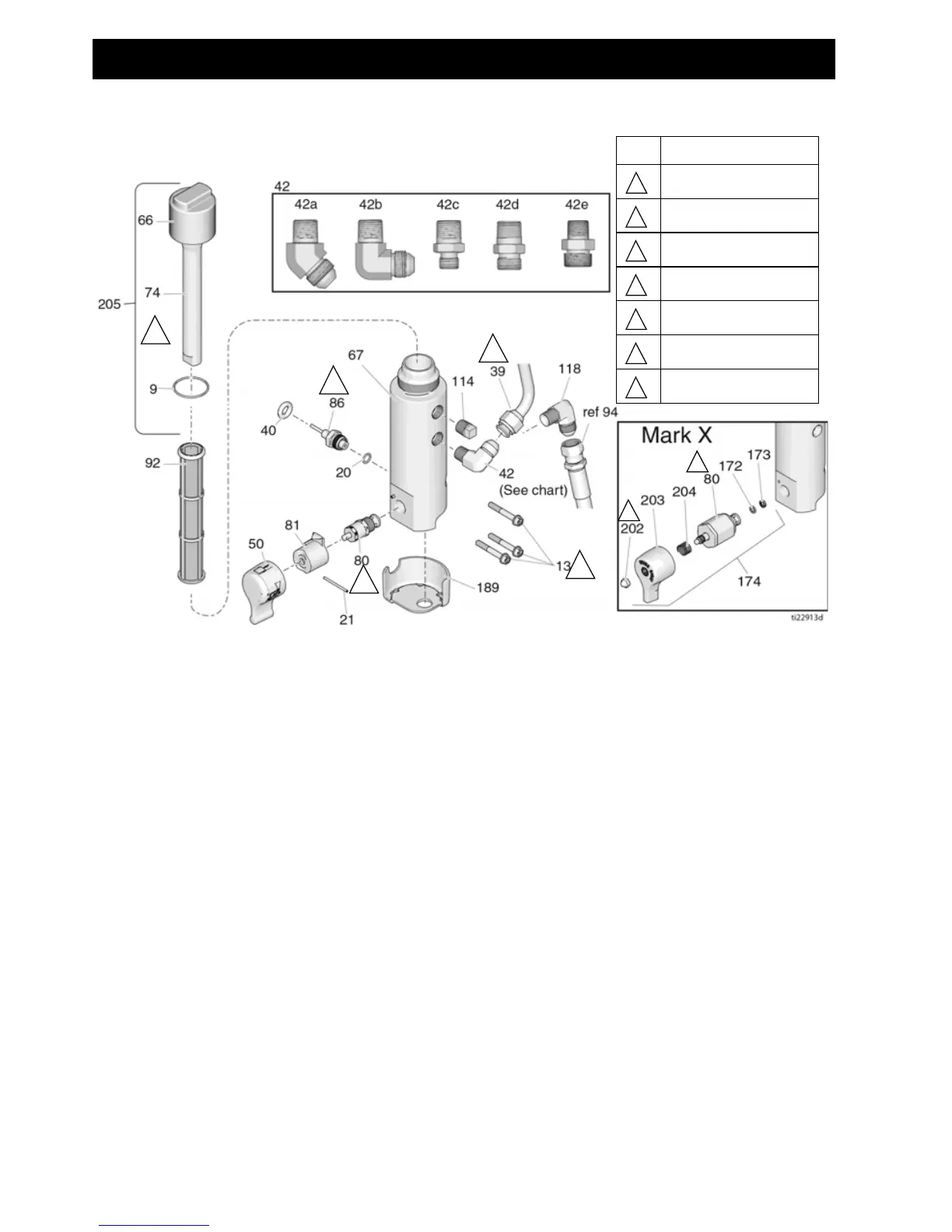

Filter
Filter Parts List
1
2
3
4
5
6
7
Ref. Torque
90-110 in-lb (10.1 -
12.4 N•m)
35-45 ft-lb (47.4 - 61.0
N•m)
190-210 in-lb (21.4 -
23.7 N•m)
100-120 in-lb (11.2 -
13.5 N•m)
38-42 ft-lb (51.5 - 56.9
N•m)
15-25 in-lb (1.6 - 2.8
N•m)
365-385 in-lb (41.2 -
43.5 N•m)
1
2
3
4
5
6
7
Ref. Part Description Qty.
9 117285 PACKING, o-ring 1
13 16U013 SCREW, cap, socket head 3
20 111457 PACKING, o-ring 1
21 15C972 PIN, grooved 1
39 TUBE, formed 1
24V095 695/795 Models
24J081 1095/Mark V Models
16M441 Mark X
40 121889 GROMMET, transducer 1
42 FITTING
42a 122533 1095/1595/Mark V/Mark VII
(ProContractor series)
1
42b 125926 695/795/Mark IV/Mark X
(ProContractor series)
1
42c 164672 695/795/1095/1595 (Standard and
IronMan series)
1
42d 196178 Mark IV/Mark V (Standard and Iron-
Man Series)
1
42e 183285 Mark VII/Mark X (Standard and Iron-
Man Series)
1
50 KIT, handle; includes 21, 81 1
24E234 Standard Series
66 17E680 CAP, filter 1
67 16T543 BASE, filter 1
74 15C766 TUBE, diffusion 1
80 24B156 VALVE, prime, HD 1
287879 VALVE, prime, Mark X 1
81 BASE, valve 1
24A382 Standard series
86 243222 TRANSDUCER, pressure control;
includes 20
1
92 FILTER, fluid 1
244071 30 mesh
244067 60 mesh, original equipment
244068 100 mesh
244069 200 mesh
114 104813 PLUG, pipe, 3/8 1
118 125926 FITTING, elbow 1
172 193709 SEAT, valve 1
173 193710 SEAL, seat, valve 1
174 245103 KIT, repair, valve, Mark X;
includes 80, 172, 173, 202, 203, 204
1
189 17A197 GUARD, base, filter (ProContrac-
tor/IronMan Series)
202 116424 NUT, Mark X 1
203 15G563 HANDLE, valve, Mark X 1
204 114708 SPRING, compression, Mark X 1
205 287285 KIT, repair, cap, filter
includes 9, 66, 74
206 115523 GAUGE, pressure (not shown) 1
207 FITTING, tee swivel (not shown)
119783 695/795/1095/1595 1
127518 Mark IV, Mark V, Mark VII, Mark X 1
208 FITTING (not shown)
162453 695/795/1095/1595 1
196178 Mark IV, Mark V 1
183285 Mark VII, Mark X 1
Ref. Part Description Qty.
