Graco Monark M Series User Manual

12 307-043

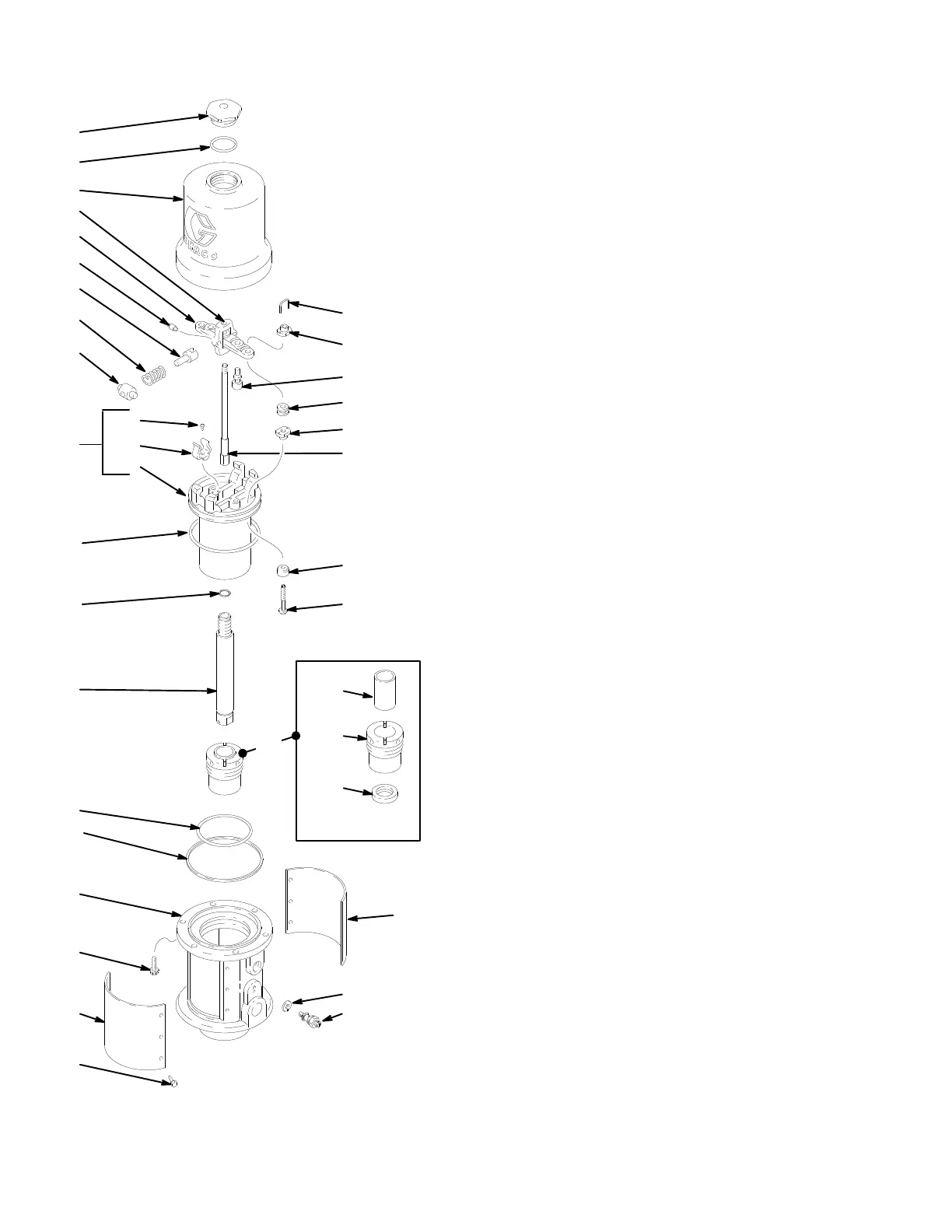

Parts
6
**12
13
9**
10**
11
31
*14
**15
2
21
20
5
18
32
34
33
05704
3
*7
25
24**
8**
9**
1
22
30
4
23**
16**
**17
19
36
35
28
29
27
NOTE:
Seal
lips face upward
26
HINGED CLAMP MOUNTING: SANIT ARY
Model 207–546, Series F
Air Motor Assembly
Includes items 1–36
Ref.
No.
Part No. Description Qty.
1 100–078 SCREW , hex head;
no. 8–32 x 0.38 in. (10 mm) long. 8
2 101–578 SCREW
, hex head;
5/16 x 0.875 in. (10 mm) long 6
3* 156–698 O-RING; buna-N 1
4 158–360
YOKE, rod, trip 1
5 158–362
PIN, toggle 2
6 158–364 ROCKER, toggle 2
7* 167–585 SPRING, helical compression 2
8** 158–367 GROMMET
, rubber , air intake 2
9** 160–261 NUT
, adjusting 4
10** 160–618 LOCKWIRE, transfer valve 2
1
1 172–867 ACTUATOR, valve 1
12** 160–621
O-RING, nitrile rubber 1
13 160–623 ARM, toggle 2
14* 160–624 O-RING, buna-N 1
15** 160–625 O-RING, buna-N 1
16** 160–896 STEM, valve 2
17** 160–932 GASKET ; copper 1
18
177–136 ROD; piston 1
19
172–573 PLA TE, warning 1
20
169–627 NUT , cap 1
21 169–628 CYLINDER 1
22 172–572 PLA
TE, identification 1
23** 170–708 POPPET
, valve; urethane 2
24** 170–709 POPPET
, valve; urethane 2
25 203–965 ROD, trip 1
26 207–547 BEARING HOUSING Assy; Includes
items 27–29 1
27* 101–524 
SEAL 1
28 101–526  BEARING 1
29 166–203  HOUSING, bearing 1
30 207–549 BASE 1
31* 214–036 PISTON Assy; Includes items 32–34
(also includes repair kit 206–728 when
ordered as a replacement part) 1
32 102–975  SCREW , rd hd mach;
no. 6–32 x 0.25” (6.3 mm) 2
33 172–866 
CLIP , spring 2
34  PIST ON, bare (not sold separately) 1
35
104–029 LUG, grounding 1
36
104–582 WASHER, tab 1
* Recommended ”tool box” spare parts. Keep on hand to
reduce down time.
**Supplied in Repair Kit 206–728. Purchase the kit separate -
ly
. See page 15.
