10 308026
Setup
Ram Extension Kit 223889
Order Ram Extension Kit 223889 to use a Check-Mate
Pump on a Model 206450 Ram. The kit extends the
height of the ram and also includes mounting hardware
to attach the pump.

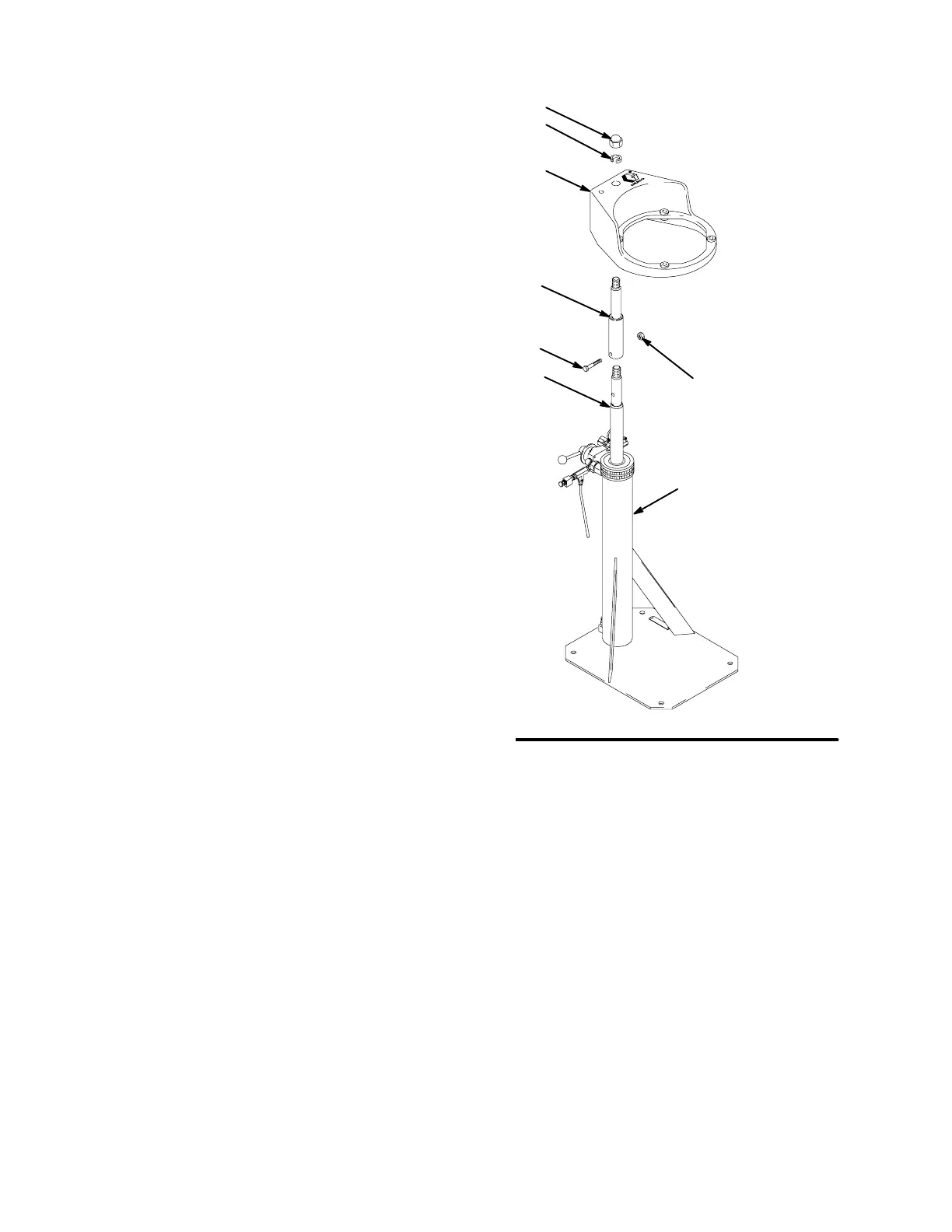

1. Remove the top nut (AA) and lockwasher (BB)
from the ram (B). Lift off the pump mounting
bracket (CC). Refer to Fig. 3.
2. Install the 184150 Rod (DD) onto the ram shaft
(EE), using the 107144 Screw (FF), and 100131
Nut (HH).
3. Reinstall the mounting bracket (CC) and secure
with the lockwasher (BB) and top nut (AA).
4. Mount the pump (A) onto the ram (B), using the
applicable parts from the kit. Refer to the applica-
ble parts drawing for your pump to determine the
correct mounting parts (marked with an asterisk *).
Wiper Plate Shield Kit 223689
Wiper Plate Shield Kit 223689 is available to cover the
fluid side of the 19 liter (5 gallon) wiper plate, to keep it
clean. The kit includes ten disposable polyethylene
shields. The shields may be reused, if desired, by
removing excess material with a squeegee.
To use, place one shield on the surface of the fluid
before the wiper plate enters the pail. The shield will
adhere to the plate as the plate moves downward,
preventing fluid from directly contacting the plate.
05684C
Fig. 3
AA
BB
B
CC
DD
EE
FF
HH
