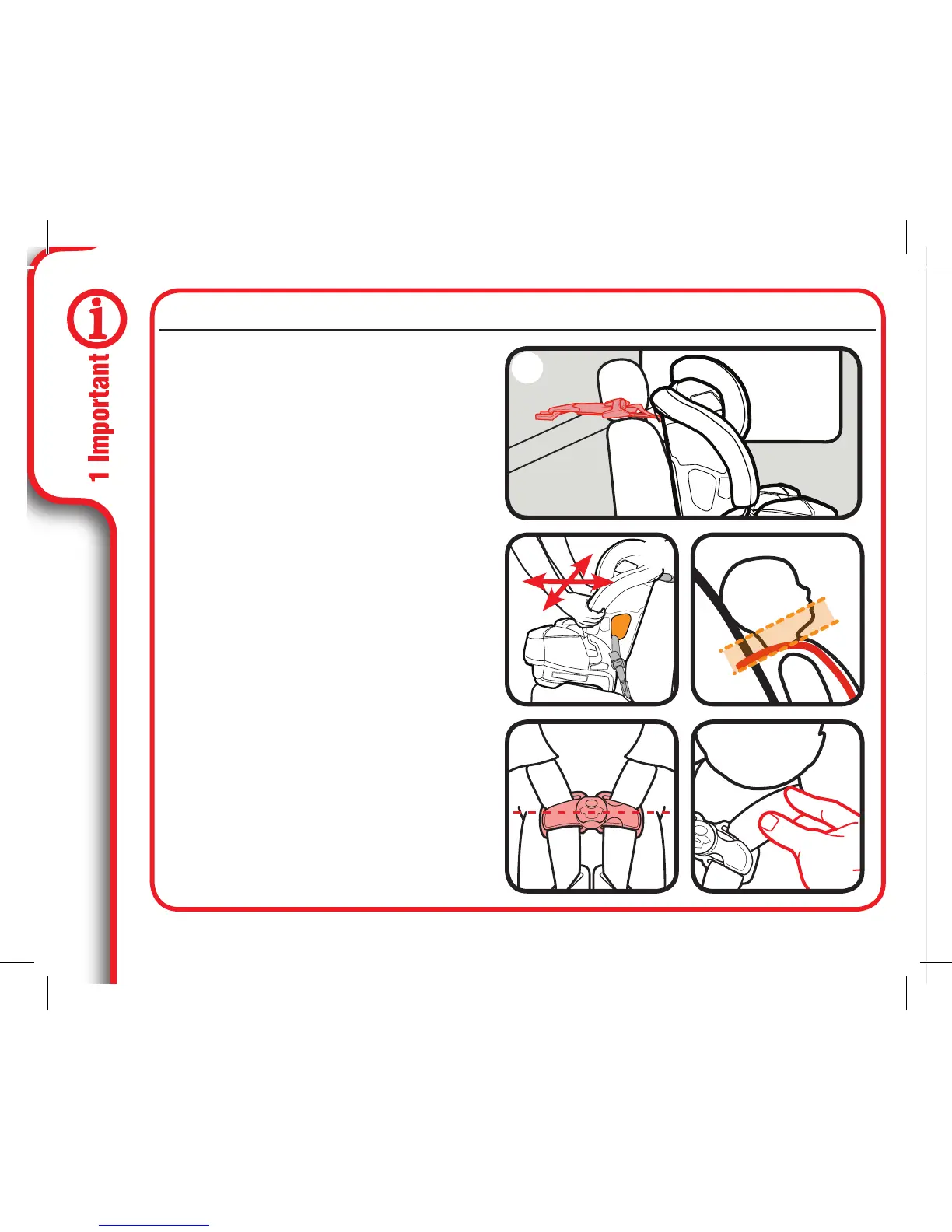

Use the top tether strap when

using forward-facing harness-

mode(A)

When used properly, the top tether

helps reduce injury in a sudden

stop or crash.

Review section 3

Car Seat Does Not Move More

than 2.5cm (1”) at the Belt

Path (B)

Review section 3

Harness Straps at or Just

Above Child’s Shoulders (C)

Review section 5

Chest Clip Even With Armpits (D)

Review section 5

Cannot Pinch Harness Straps

at the Shoulder (E)

Review section 5

Forward-Facing Harness Mode Installation

D E

Contents2
Quick Guide to Your Manual6
Car Seat Assembly6
Attach Headrest6
Raise Seat Back7
Snap on Seat Base Pad to Base8
What Seating Location Should I Use?9
Which Installation Method Should I Use?10
What Is UAS?11
When Installing Forward-Facing Harness Mode12
UAS System12
Vehicle Seat Belt12
When Installing as a Booster13
Does Your Car Seat Fit Your Child Correctly?14
For Forward-Facing Harness Mode, You Need to Adjust14
Harness Height, Forward-Facing Harness Mode14
Buckle Position, Harness Tightness14
For Booster, You Need to Adjust15
Forward-Facing Harness Mode Installation16
Booster Installation17
Right Mode of Use19
Forward-Facing Harness Mode 10-18 Kg19
Highback Booster Mode with Vehicle Lap/Shoulder19
Backless Booster Mode with Vehicle Lap/Shoulder, Backless Armless Booster Mode with Vehicle Lap/Shoulder19
Before You Begin20
Register this Child Restraint20
Aircraft Installation22
Car Seat’s Useful Life22
Safety Warnings23
Vehicle Seat Protection23
Warm Weather Use23
Car Seat Features26
Forward Facing32
Forward-Facing Harness Mode with Top Tether32
Install Forward-Facing Harness Mode with UAS Straps and Top Tether34
Is Everything Correct?46
Install Forward-Facing Harness Mode with Vehicle Seat Belt and Top Tether47
Using with the Snuglock Lock-Off49
Route the Vehicle Seat Belt51
Tighten the Vehicle Seat Belt51
Close and Lock the Snuglock Lock-Off52
Replace the Lower Backrest Pad52
Using Without the Snuglock Lock-Off52
Lock the Vehicle Seat Belt53
Attach Top Tether Strap54
Test for Tightness54
Booster Use56
Install Highback Booster58
If Not Using UAS64
Install Backless Booster69
Securing Child Forward-Facing Harness Mode73
Securing Child Highback Booster80
Securing Child Backless Booster83
Using Belt Positioning Clip86
Accessories89
Harness Covers89
Buckle Cover89
Body Support89
Vehicle Information90
How to Remove UAS and Top Tether90
Choosing Vehicle Seat Location91
Unsafe Vehicle Seat Location92
Vehicle Seat Belts93
Vehicle Seat Belt Terms93
Identify Your Seat Belt Type94
Lap/Shoulder Belt Installation95
How to Lock Your Lap and Shoulder Vehicle Seat Belt96
Sliding Latch Plate and Switchable Retractor96
Locking Latch Plate and ELR Retractor97
Sliding Latch Plate and ALR Retractor98
Sliding Latch Plate and ELR Retractor99
Lap Belt Installation - DO NOT Use in Booster Mode100
Locking Latch Plate and no Retractor100
Sewn on Latch Plate and ALR100
Care and Cleaning101
Cleaning Cover101
Headrest Pad101
Seat Base Pad102
Lower Backrest Pad103
Upper Backrest and Side Pad104
Cleaning Buckle Strap105
Cleaning Harness and UAS Straps106
Cleaning Removable Armrests107
