Installation
3A0869C 17
11. Screw the static mixer (SM) into the injection cap
(M*). Install the retained fitting (F) on the static mixer
tube and secure with the nut (N1).
12. Follow instructions under Fluid Connections on
page 14.
NOTE: Use a minimum 20 ft (6.1 m) x 1/4 in. (6 mm) ID
gun fluid supply hose when using dynamic dosing. If the
material is harder to integrate, use a longer hose.
13. Tune the fluid pressure and flow.

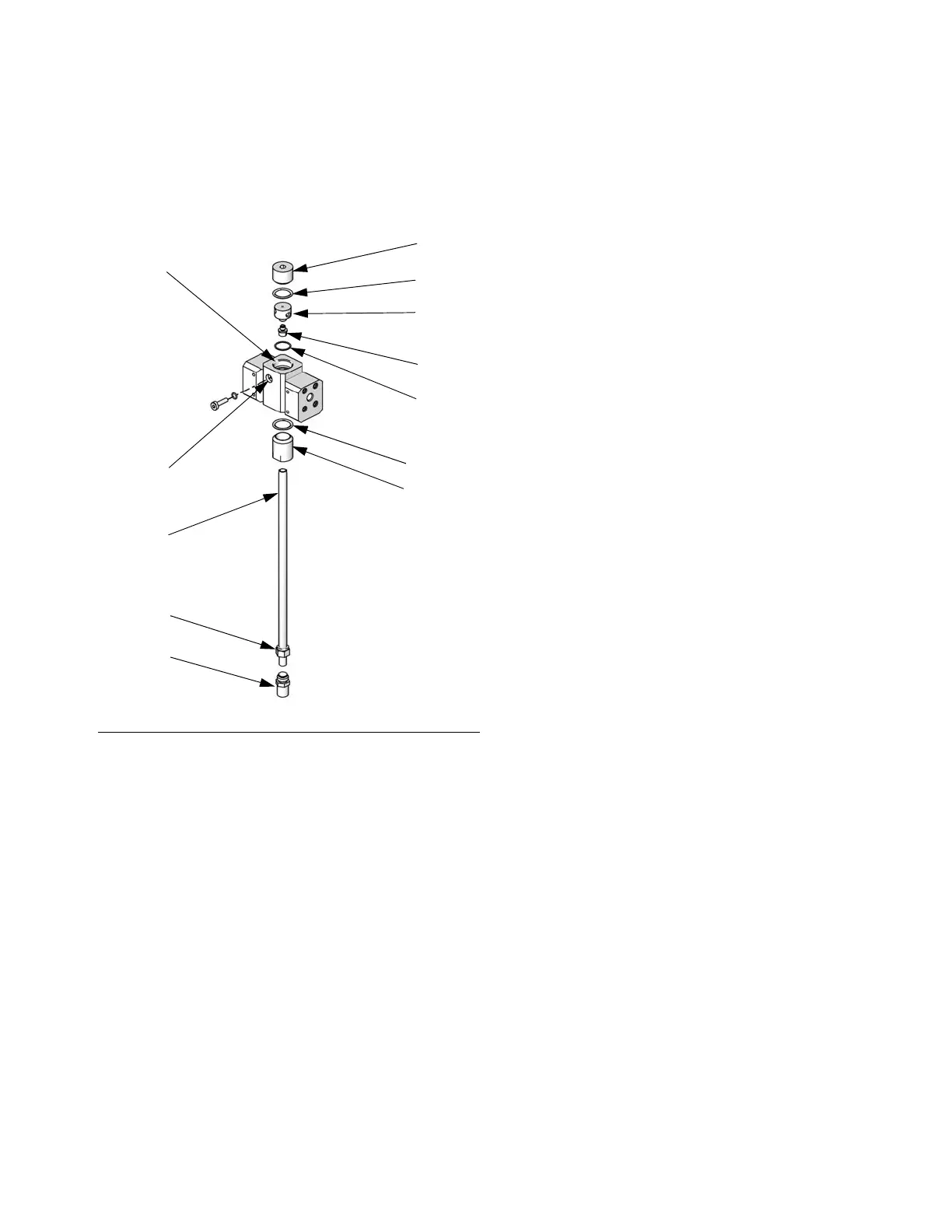

F
IG. 8. Install 15U955 Injection Kit
L1*
L2*
H
K
M*
SM
J
N1
ti16335a
L1*
F
S
R*
* These parts are included in the
15U955 Injection Kit.
