Run Mode Details
Run Mix Spray (Screen 2)
Run Mix Spray (Screen 2) displays at startup or if
is selected from Run Home (Screen 1). Use the Mix
Spray screen to control most mixing operations.
• Press to toggle between Run Mix Spray
(Screen 2), Run Mix Batch (Screen 3), and Run Mix
Totals (Screen 4).
• Press to access Run Home (Screen 1).
Run Home (Screen 1)
• Press a soft key button to select one of the main
Run Mode screen sections: Mix or Errors .
• Press to enter the Setup screens.
Run Mix Batch (Screen 3)
Run Mix Batch (Screen 3) displays if is selected
from Run Mix Spray (Screen 2). Use the Mix Batch
screen to dispense set volumes. Target volume can be
set from 1 to 9999 cc.
• Press to set the target dispense volume. Use
to change each digit, then to move
to the next digit. Press when finished.
• Press to toggle between Run Mix Spray
(Screen 2), Run Mix Batch (Screen 3), and Run Mix
Totals (Screen 4).

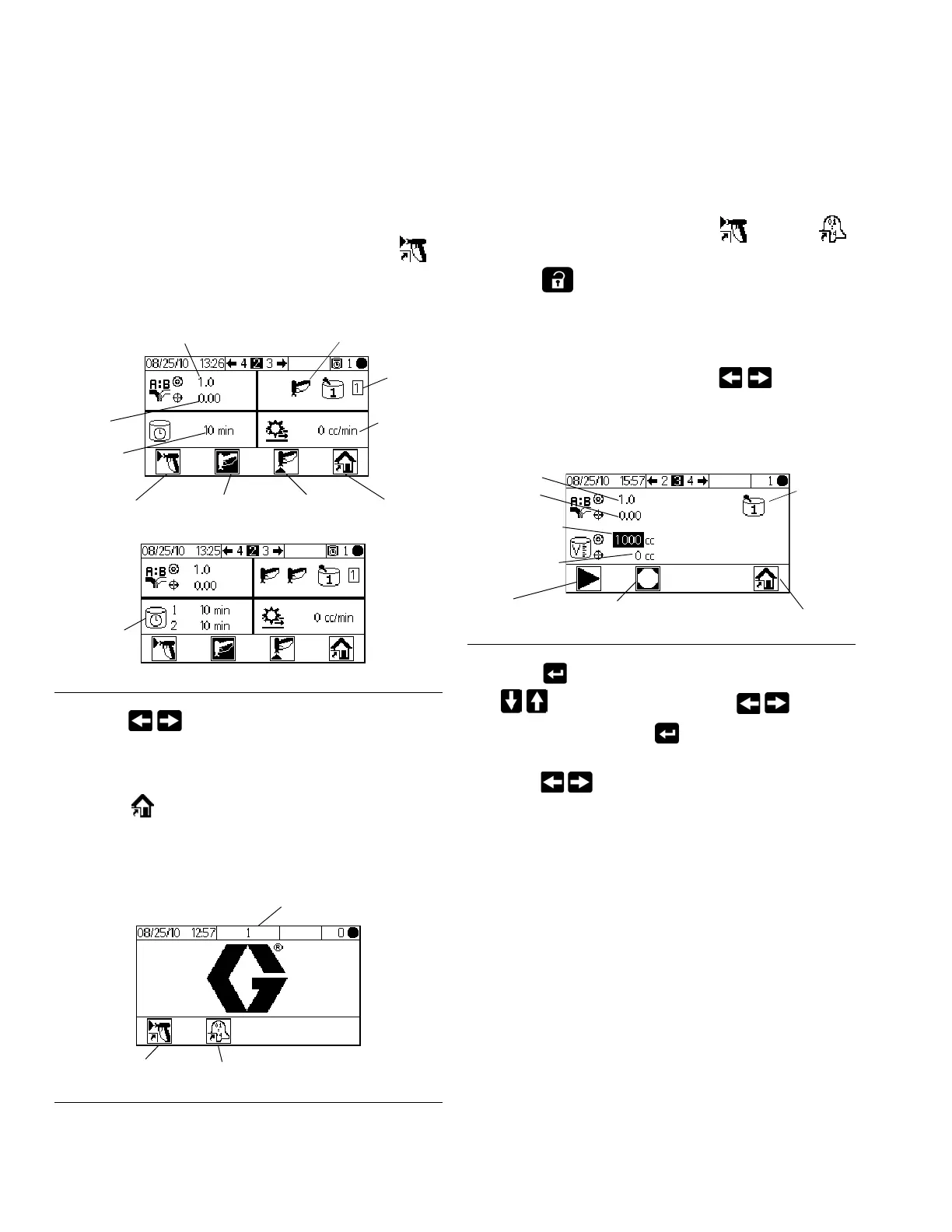

FIG. 27. Run Mix Spray (Screen 2)
FIG. 28. Run Home (Screen 1)
Standby PurgeMix
Actual
ratio
Target ratio
Potlife
time
Home
Flow rate
Material
Gun status
1 Gun
2 Guns
Potlife for
each gun
Mix
Errors
Screen Number
FIG. 29. Run Mix Batch (Screen 3)
Stop
Start
Home
A
ctual ratio
Target ratio
Actual volume
Target volume
Material
