Installation
18 3A0869C

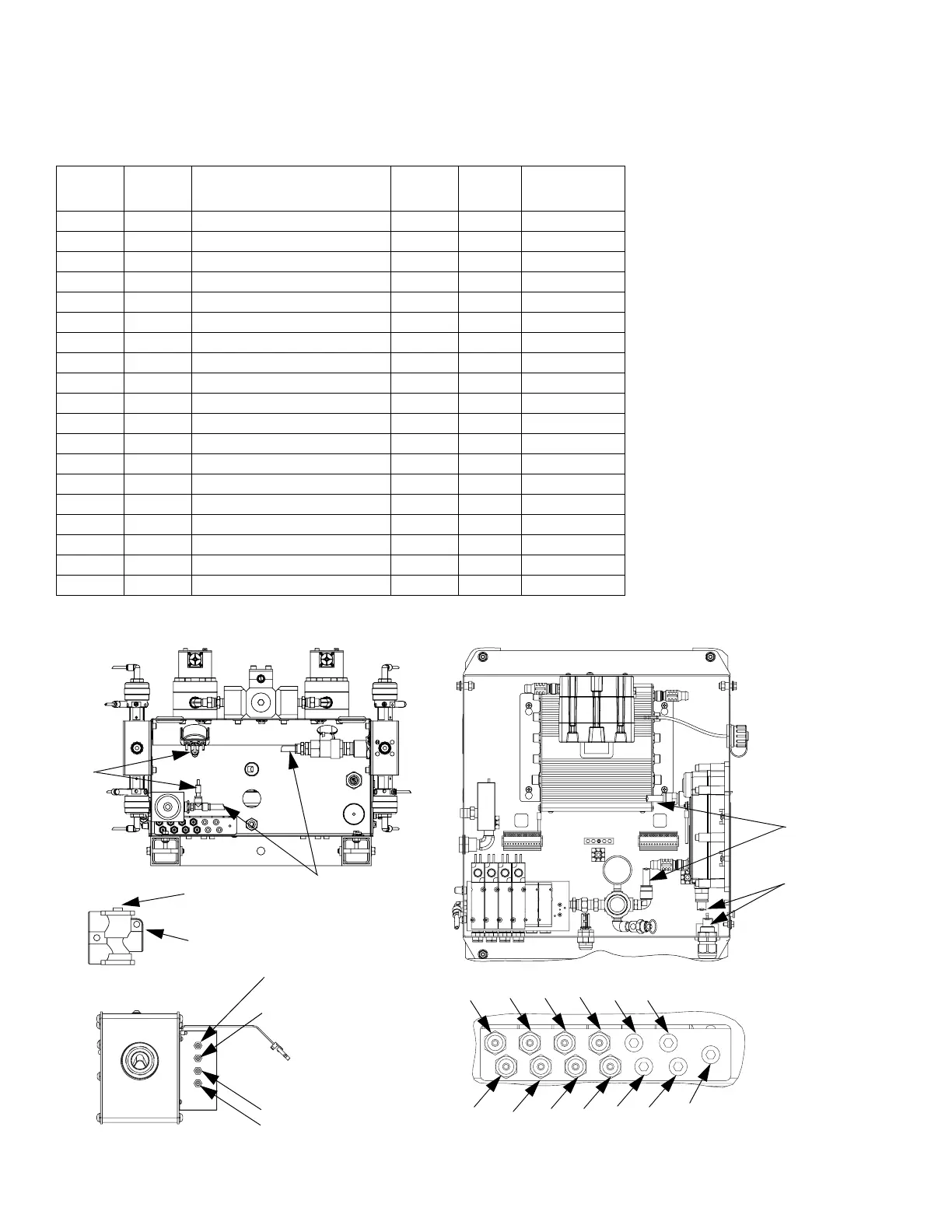

Tubing Chart and Diagrams
* Used only on IS models.
Type Color Description
Starting
Point
Ending
Point
Tube OD
in. (mm)
Air Green Solvent Valve A On 1G 1G 0.156 (4.0)
Air Green Dose Valve A1 On 2G 2G 0.156 (4.0)
Air Green Solvent Valve B On 3G 3G 0.156 (4.0)
Air Green Dose Valve B On 4G 4G 0.156 (4.0)
Air Green Dose Valve A2 On 5G 5G 0.156 (4.0)
Air Green Dose Valve A3 On 6G 6G 0.156 (4.0)
Air Red Solvent Valve A Off 1R 1R 0.156 (4.0)
Air Red Dose Valve A1 Off 2R 2R 0.156 (4.0)
Air Red Solvent Valve B Off 3R 3R 0.156 (4.0)
Air Red Dose Valve B Off 4R 4R 0.156 (4.0)
Air Red Dose Valve A2 Off 5R 5R 0.156 (4.0)
Air Red Dose Valve A3 Off 6R 6R 0.156 (4.0)
Air ----- Main Air to Pressure Gauge A1 A1 0.156 (4.0)
Air Natural Solenoid Air A2 A2 0.25 (6.3)
Air Natural Main Air to Filter A3 A3 0.25 (6.3)
Fluid ----- Valve Stack A to Meter A A4 A4 0.375 (9.5)
Fluid ----- Valve Stack B to Meter B A5 A5 0.375 (9.5)
Air Black Alternator Air Exhaust* A6 A6 0.5 (12.7)
Air Natural Air Regulator to Alternator* A7 A7 0.375 (9.5)
GFB1-A
GFB1-C
GFB1-S
GFB1-S
ATOM-1
1R 2R 3R 4R
5R 6R
1G
2G
3G
4G
5G
6G
GFB1-C
A7*
A6*
* IS Models
ti16771a
ti13863a
ti13861a
ti16770a
A1
A3
ti16773a
GFB1-P
(Pressurized air line)
