Graco ProMix 2KE - Page 22

Installation
22 3A0869C

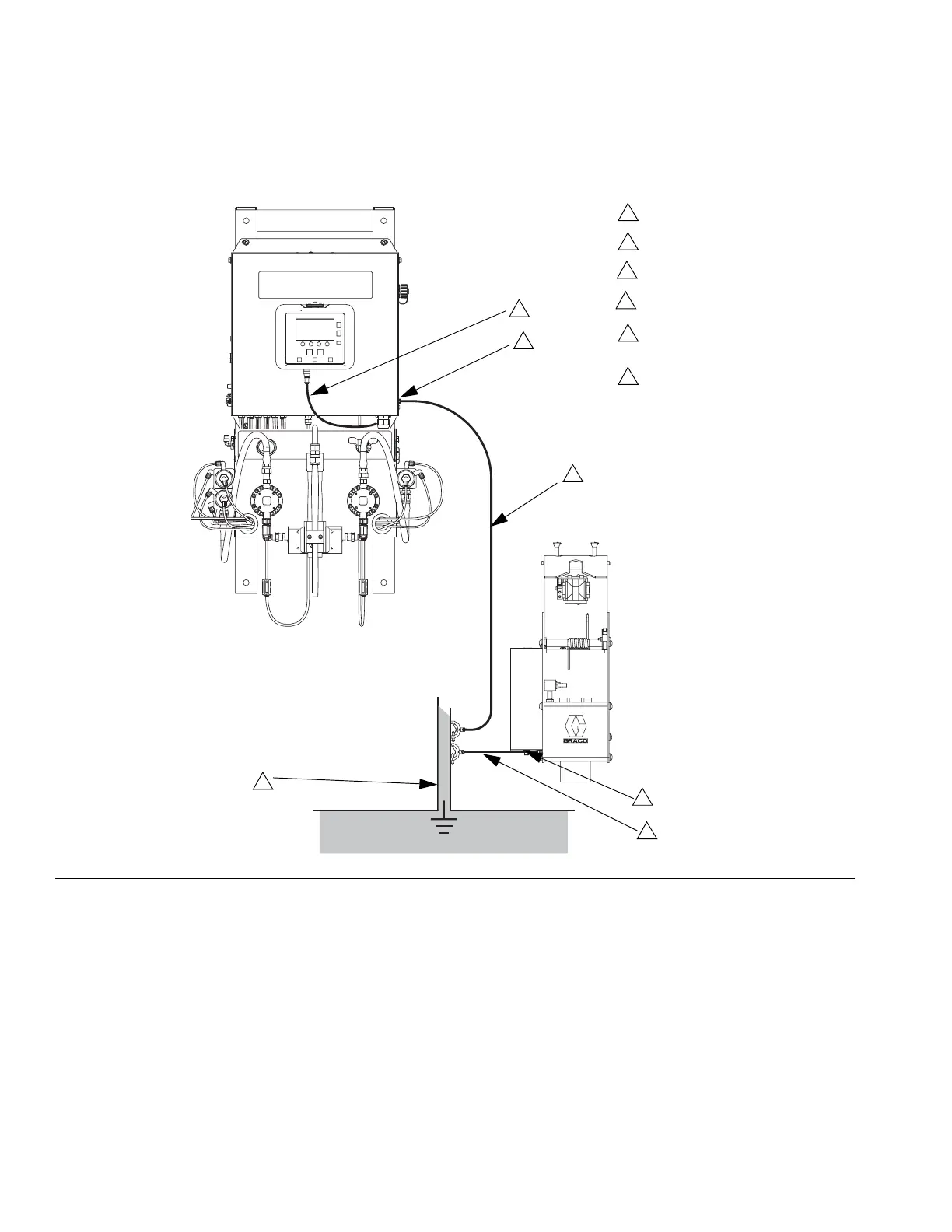

FIG. 12. Grounding
1
Key:
Control Box ground screw
1
Control Box ground wire
2
2
Power cable, Display
Module/Control Box
5
True Earth Ground - check your
local code for requirements.
6
5
Gun Flush Box ground screw
3
Gun Flush Box ground wire
4
3
4
6
ti16466a
