107

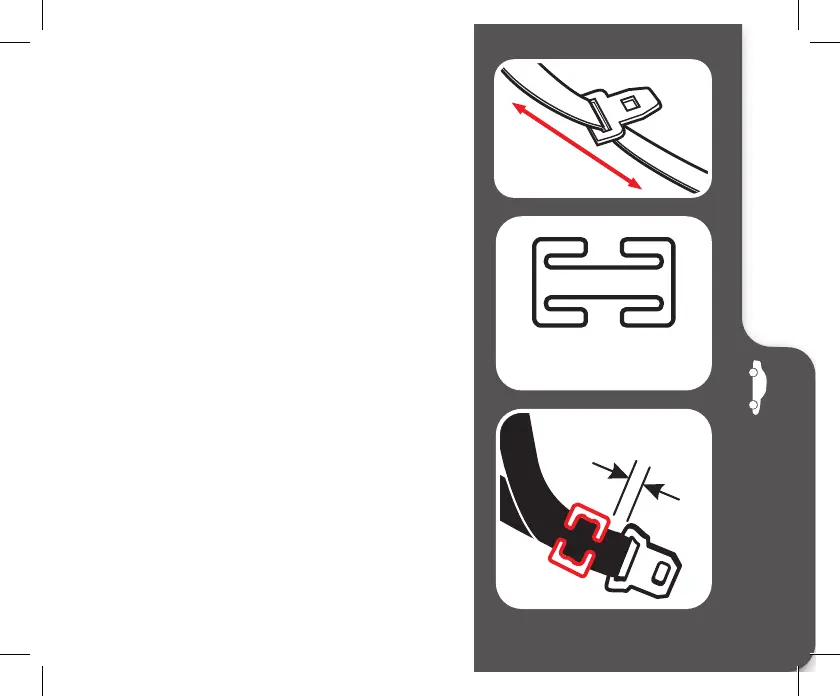

Sliding Latch Plate and ELR Retractor
A latchplate that slides freely on the belt
webbing and cannot, by itself, hold the belt
snug around a car seat.
With this retractor, you will need to use the
locking clip to lock the vehicle seat belt.
To get a locking clip order online at gracobaby.
com or call 1-800-345-4109
Route the vehicle seat belt through the proper
belt path and buckle it in. Pull the vehicle seat
belt tight. While pushing down on seat, pinch
the two straps together behind the buckle
tongue. Unbuckle the belt without allowing it
to slip.
Attach locking clip to lap and shoulder belts
as shown.
Rebuckle belt. Check that lap belt does not
move by pulling hard. If belt loosens or
lengthens, repeat procedure.
Note: When using the lock-off, you do not
need to use the locking clip. The lock-off locks
the seat belt.
Locking Clip
1” (2.5 cm)
