Setup
26 3A0420ZAF

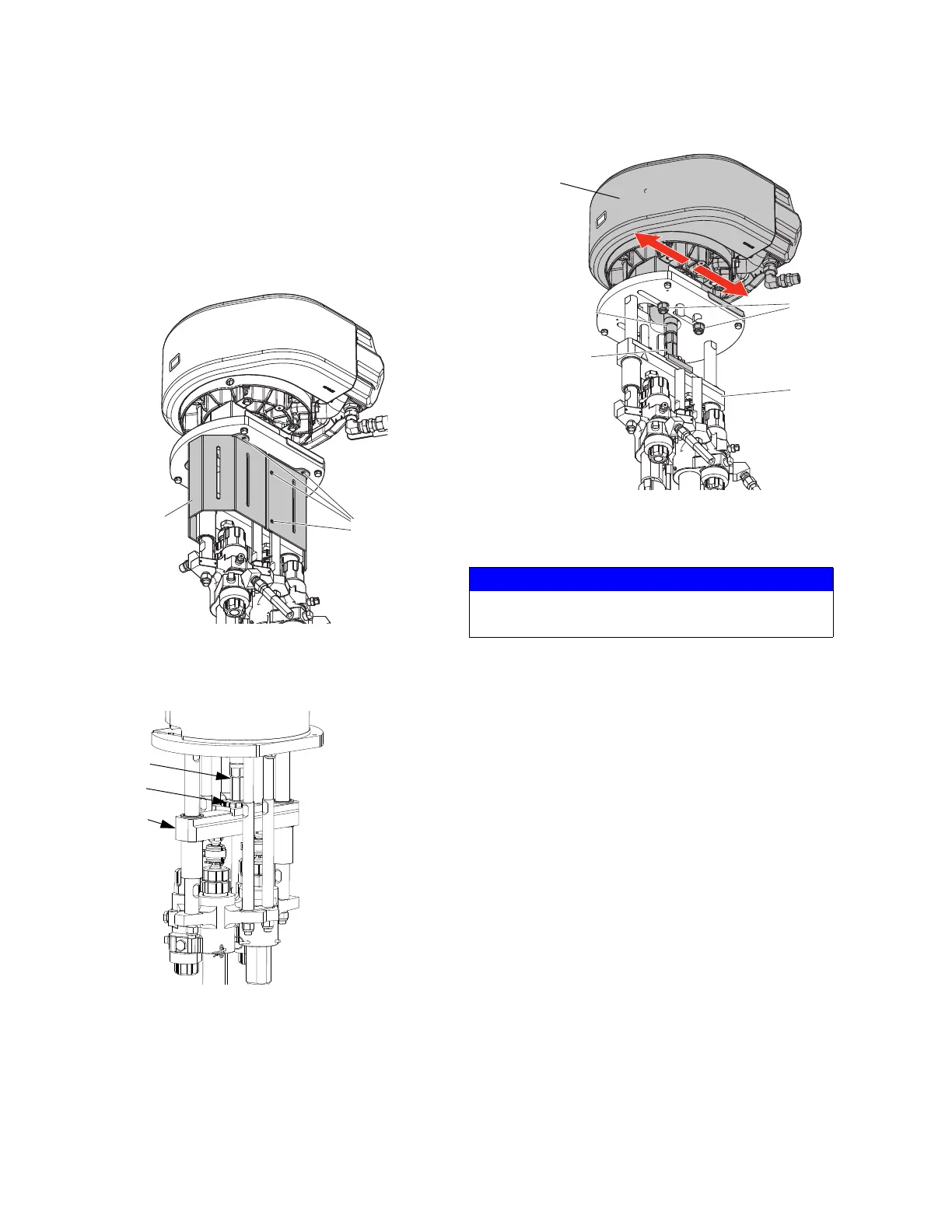

Change Motor Position
There are specific motor positions for each mix ratio
setting. To adjust the position of the air motor:
1. Perform Check Motor Position procedure. If
position is incorrect, continue to next step.
2. Loosen the eight fasteners and remove the two
pump guards.
3. Place wrench on adapter rod (104) then use
supplied tool to loosen the serrated yoke nut (V)
above the yoke (T).
4. Loosen the three nuts (P2) below the motor tie rods.
5. Grab the piston rod and slide the position of the
motor (E) until the indicator lines are aligned with
your ratio.
6. Tighten the three nuts (P2) and yoke nut (V).
7. Use supplied tool to tighten the yoke nut, then install
the pump guards.
NOTICE
Do not hit tie rods (P) with a steel hammer.
Damage to the air motor base may result.
WLD
