Graf PLATIN - Installation Conditions

5 / 18
455-655
455-755
Teleskop-Domschacht
Mini
Teleskop-Domschacht
Maxi / Guss
max. 1200

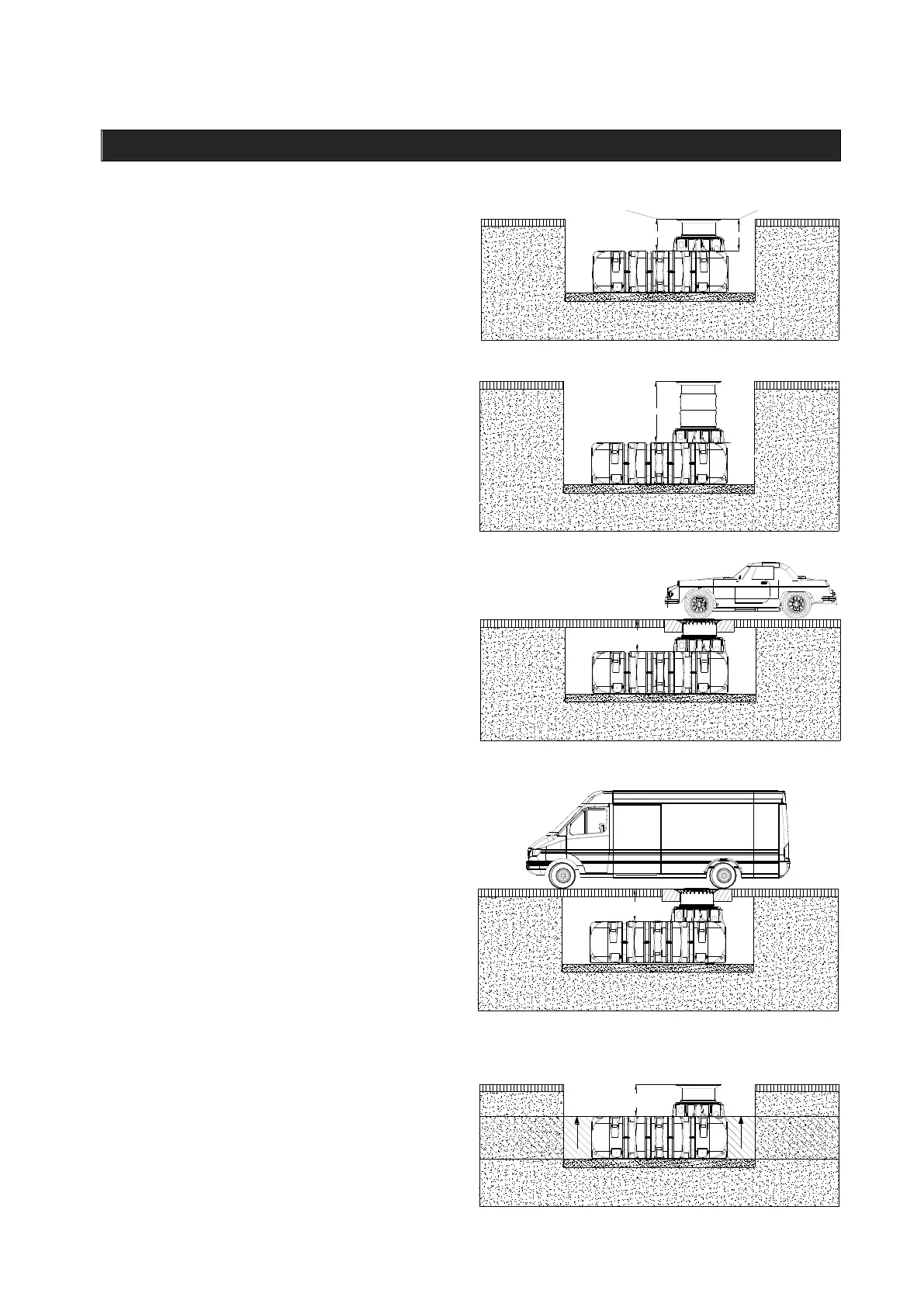

2. Installation conditions
Coverage heights with telescopic dome shaft in
green areas.
Maximum coverage heights with the maximum
two extension risers and telescopic dome shaft.
(in green areas only – not under areas used by
passenger cars)
Coverage heights with cast telescopic dome
shaft (class B) in areas used by passenger cars.
(without groundwater and stratum water)
Coverage heights with telescopic dome shaft
with cast iron lid. Maximum load of the area used
by passenger cars 3.5 tonne.
(without groundwater or stratum water)
Coverage heights on installation in groundwater
– the hatched area specifies the permissible
immersion depth for the tank.
(not under areas used by passenger cars)
Trafficable dome shaft +
telescopic cast iron lid
Mini telescopic
dome shaft
>800 <1000
>700 <1000
>800 <1200
Max.
Max.
>700 <1200
>800 <1000
max. 3,5 to
>700 <1000
