DS 85 H/LA
22

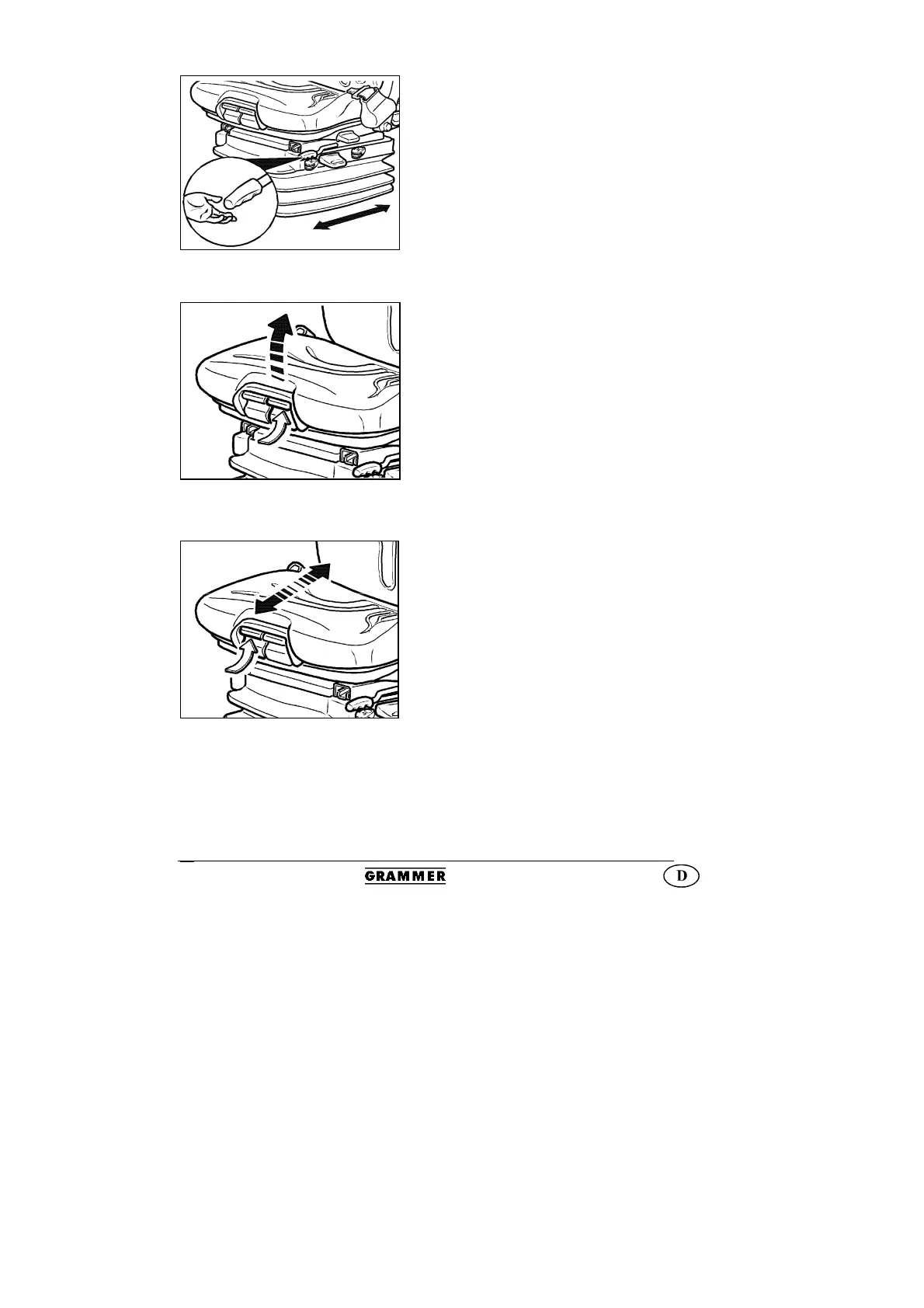

Fore/aft adjustment
The fore/aft adjustment is released by lifting
the locking lever.
The locking lever must latch into the
desired position. It should not be possible to
move the driver seat into another position
when it is locked.
Seat pan angle adjustment*
The angle of the seat pan can be individually
adjusted.
To adjust the angle of the seat pan, lift the L/H
handle (see arrow). By exerting pressure on
or off the seat pan it can be moved to the de-
sired angle position.
Seat depth adjustment*
The depth of the seat pan can be individually
adjusted.
To adjust the depth of the seat cushion, lift the
R/H handle (see arrow). By moving the seat
cushion backwards or forwards the desired
seating position can be reached.
* if fitted
