DS 85 H/90 DS 85 H1/90AR 23

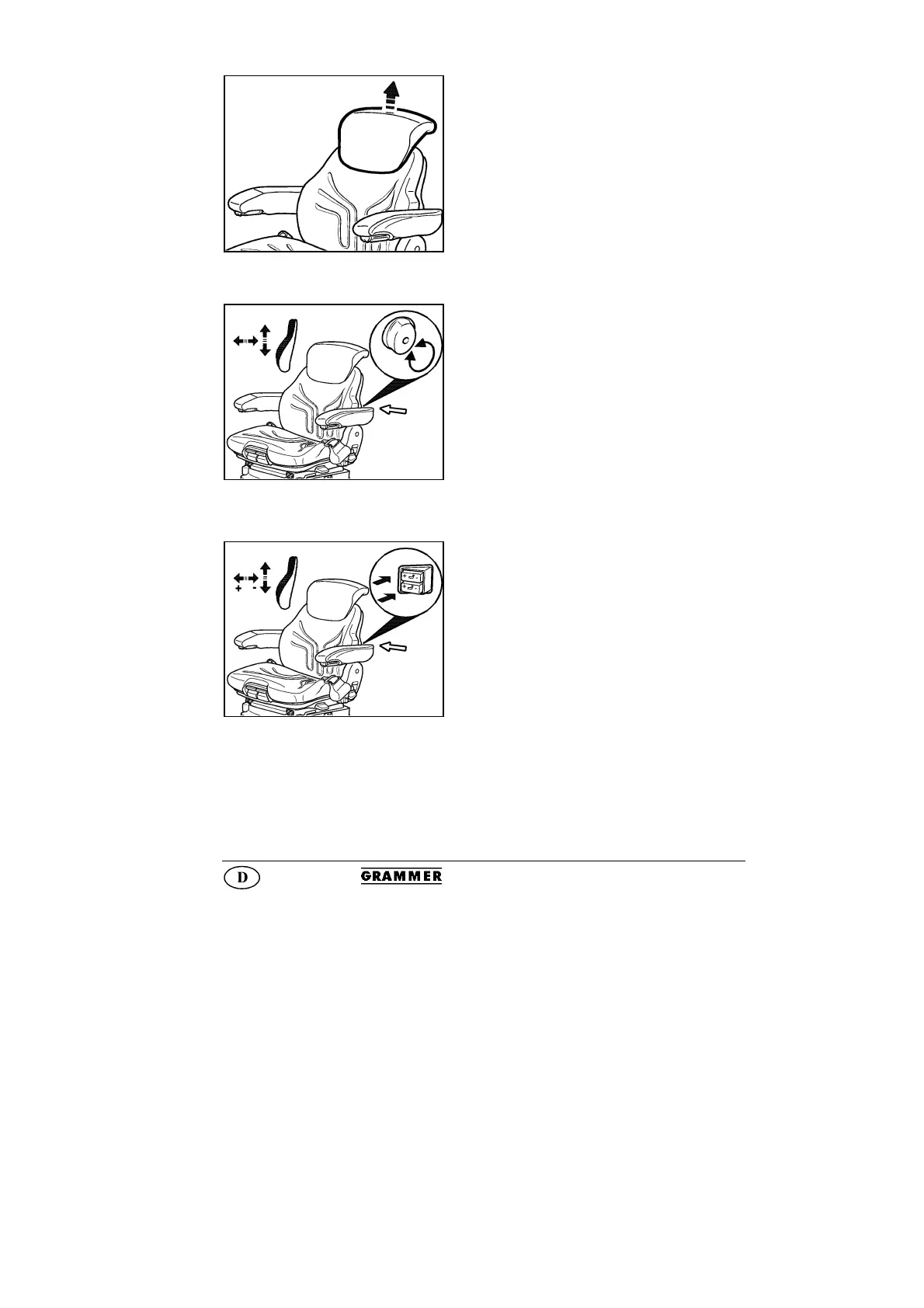

Backrest extension *
(optional extra)
The backrest extension can be individually
adjusted for height by pulling it upwards over
the various increments up to the end stop.
To remove the backrest extension, pull it over
the end stop.
Lumbar support**
By turning the adjustment knob (arrow) to the
left or right, both the height and curvature of
the backrest cushion can be individually ad-
justed.
This increases both the seating comfort and
the performance of the driver.
Lumbar support**
The curve of the backrest cushion can be in-
dividually adjusted by pressing the upper and
lower switches.
This increases both the seating comfort and
the performance of the driver.
* if fitted ** depending on model
