3.10 Air spring – removal and installation
Page 2 of 2

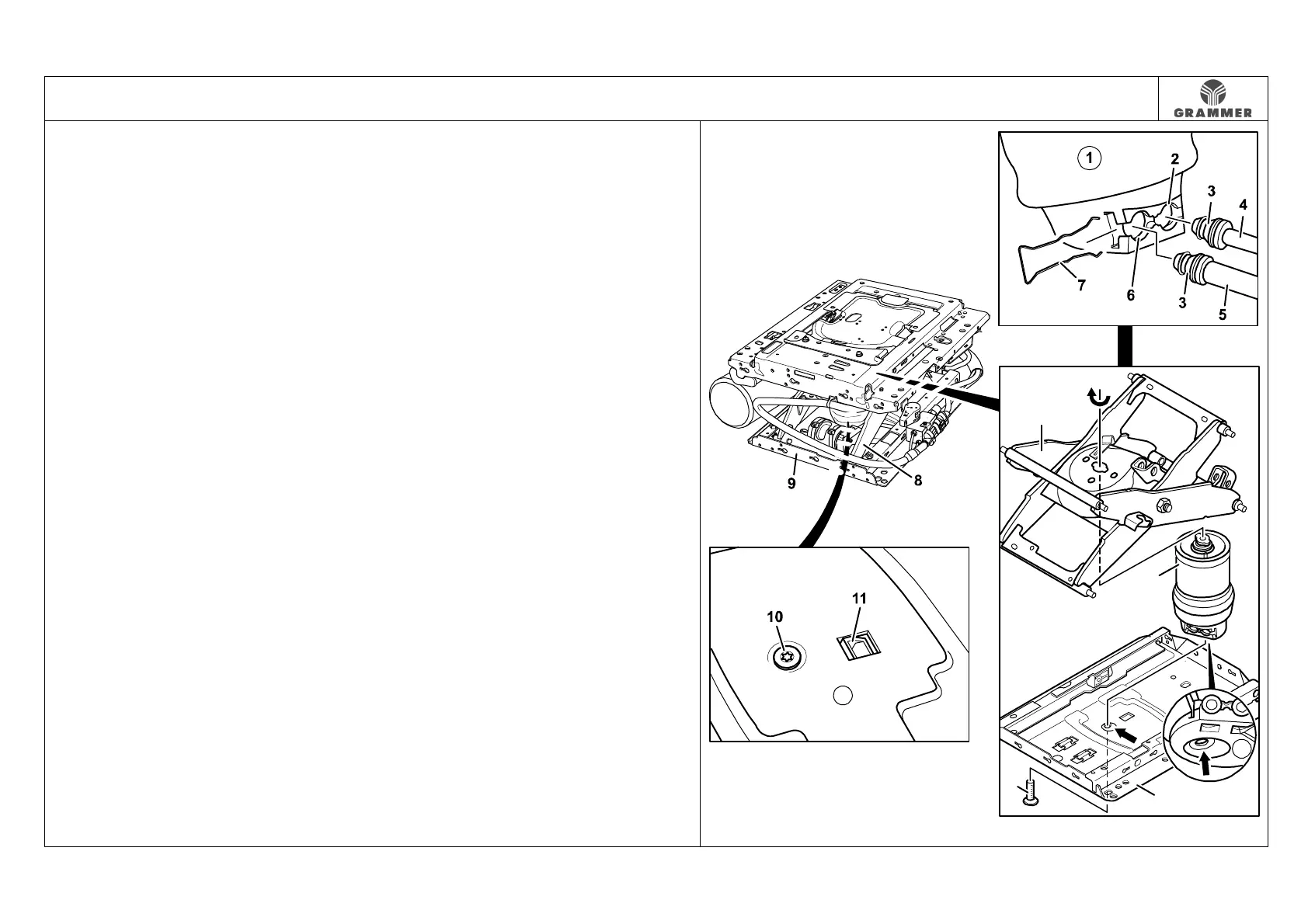

9 Press the air spring (1) down and pull
out of the swinging structure (8).
10 Remove the air spring (1) from the
seat suspension.
Installation note:
The step (11) at the bottom of the air
spring (1) must snap in the cut-out on
the lower part of the suspension (9).
11 Re-install the components in the
reverse order of their removal.
