Grandstream Networks GRP2616 Quick Installation Guide

~3~
~4~

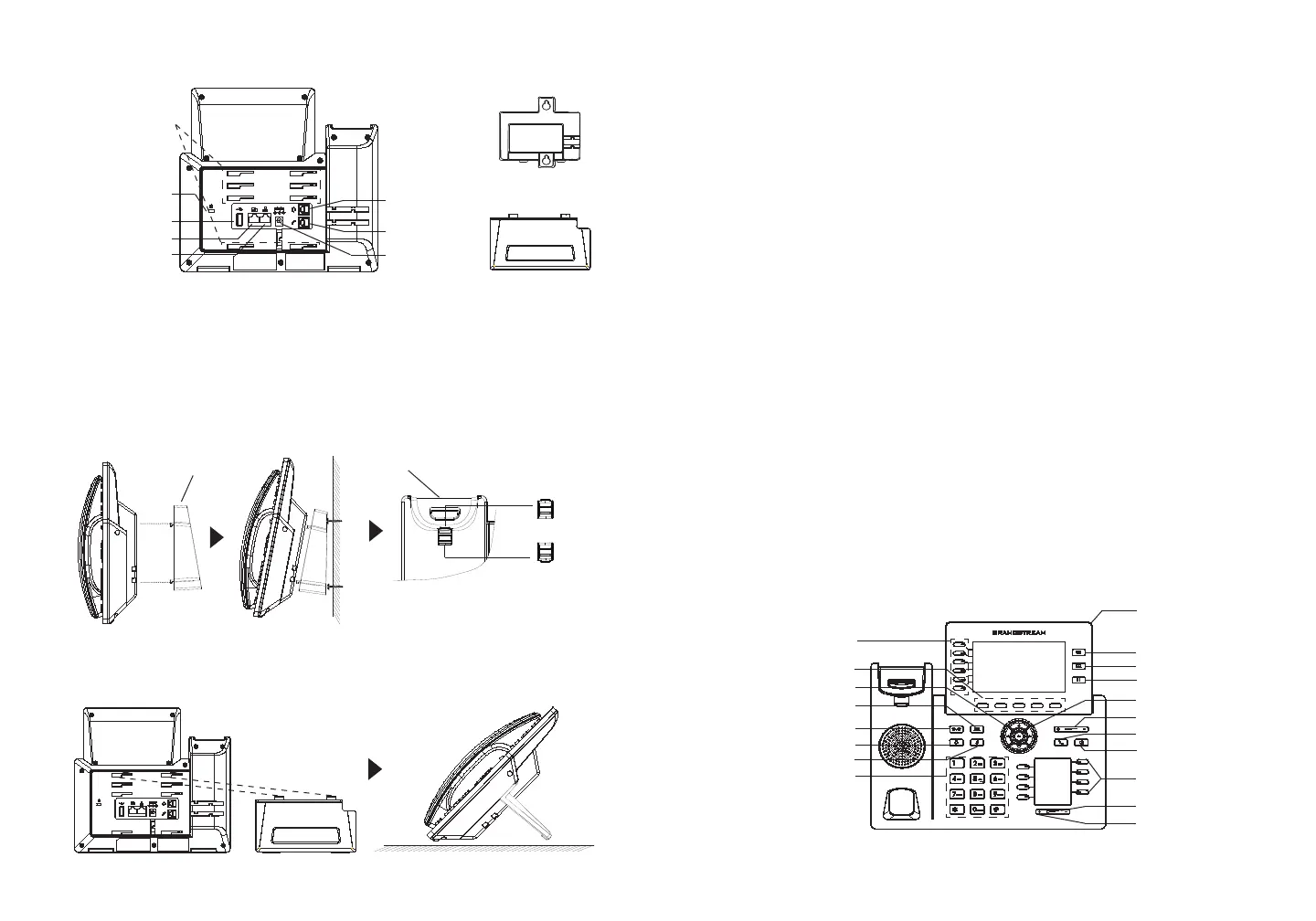

PHONE SETUP:
Installing the phone (Wall Mount *sold separately):
1. Attach the wall mount spacers to the slot for wall mount spacers on the back
of the phone.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab from the handset cradle (See gure below).
4. Rotate the tab and plug it back into the slot with the extension up to hold the
handset while the phone is mounted on the wall (See gure below).
Tab with exten-
sion up
Handset Rest
Tab with exten-
sion down
Slot for the wall
mount spacers
and phone
stand
To setup the GRP2616, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the 12V DC output plug to the power jack on the phone; plug the
power adapter into an electrical outlet. If PoE switch is used in step 3, this
step could be skipped.
3. Network connection is possible via two methods which are described below:
• Using Ethernet:
Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
• Using WiFi:
- On LCD menu, navigate to “System→WiFi settings” and enable WiFi.
- Select “Scan” and GRP2616 will automatically start scanning within the
range.
- A list of WiFi networks will be displayed. Select the desired network, and if
required, enter the correct password to connect.
4. The LCD will display provisioning or rmware upgrade information. Before
continuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad conguration menu, you
can further congure the phone using either a static IP or DHCP.
For installing the phone on the table with the phone stand, attach the phone stand
to the bottom of the phone where there is a slot for the phone stand. (Upper half,
bottom part).
Installing the phone (Phone Stand):
USB Port
Power
Headset Port
Handset Port
CONNECTING THE PHONE:
Wall mount
Wall mount
Phone Stand
PHONE DESCRIPTION:
Kensington
Lock
PC Port
LAN Port
Soft keys
Navigation keys
Message
Hold
Transfer
Headset
Mute
Volume
Speaker
Send
Standard keypad
Line keys
MENU/OK key
Conference
Left Key
Right Key
Multi-Purpose
Key
Phonebook
Message Waiting
Indicator

Grandstream Networks GRP2616 Specifications

General

Brand	Grandstream Networks
Model	GRP2616
Category	IP Phone
Language	English
